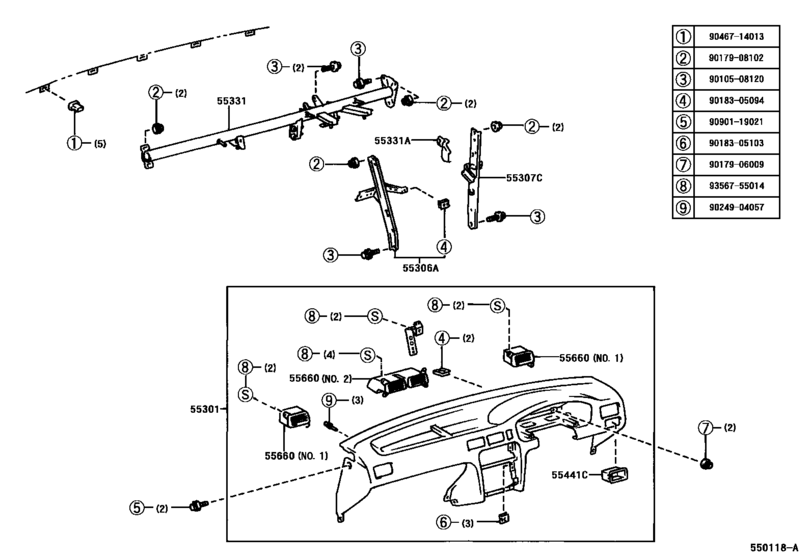

Instrument Panel & Glove Compartment ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 10.1998
- To
- 12.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-0A010-B0
Panel Sub-Assy, Instrument
[12.1996 - 03.2002] AL50..GEN BLUISH GRAY,TRIM1# |
55301-0A010-B0 |
— | ||
|
55306A
|
55306A
55306-0A010
Brace Sub-Assy, Instrument Panel, No.1
[12.1996 -] AL50 |
55306-0A010 |
— | ||
|
55307C
|
55307C
55307-0A010
Brace Sub-Assy, Instrument Panel, No.2
[12.1996 -] AL50 |
55307-0A010 |
— | ||
|
55331
|
55331
55330-0A010
Reinforcement, Instrument Panel
[12.1996 - 10.1999] AL50 |
55330-0A010 |
— | ||
|
55331
|
55331
55330-0A030
Reinforcement, Instrument Panel
[10.1999 -] AL50..GEN |
55330-0A030 |
— | ||
|
55331A
|
55331A
45874-16060 Prtector, Reinforcement, Instrument Panel[12.1996 -] AL50 |
45874-16060 |
US $9.03 |
||
|
55441C
|
55441C
55441-0A010-B0
Box, Instrument Panel Coin
[03.1998 -] AL50..XLI..GEN BLUISH GRAY,TRIM1# |
55441-0A010-B0 |
— | ||
|
55660
|
55660
55650-0A010-B0
Register Assy, Instrument Panel, No.2
[12.1996 -] AL50 BLUISH GRAY,TRIM1#,NO.1 |
55650-0A010-B0 |
— | ||
|
55660
|
55660
55660-0A010-B0
Register Assy, Instrument Panel, No.2
[12.1996 -] AL50 BLUISH GRAY,TRIM1#,NO.2 |
55660-0A010-B0 |
— | ||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9024904057
|
9024904057
90249-04057 Pin, Instrument Panel, No.1 |
90249-04057 |
US $4.12 |
||
|
9046714013
|
9046714013
90467-14013 New Genuine Part |
90467-14013 |
US $2.87 |
||
|
9090119021
|
9090119021
90901-19021 New Genuine Part |
90901-19021 |
US $1.75 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
