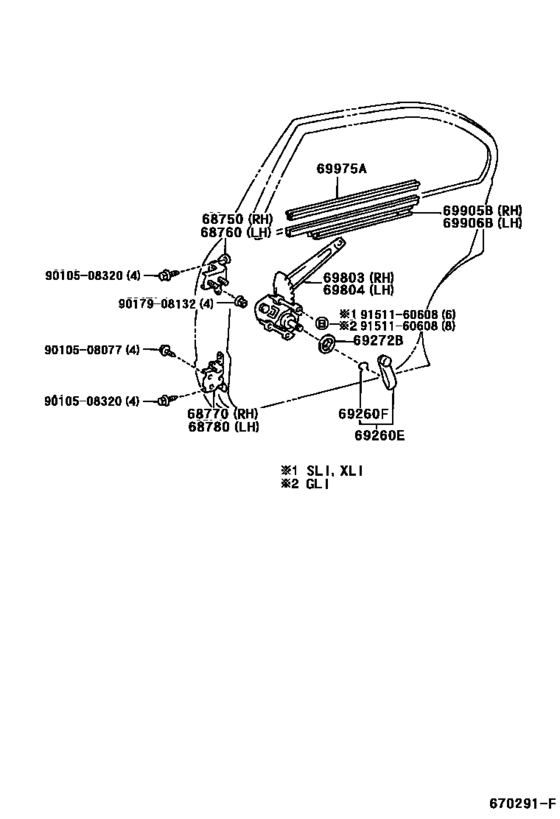

Rear Door Window Regulator & Hinge ([12.1996 - ] (9612- )) Diagram Toyota SOLUNA
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- AL50
- grade
- XLI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 10.1998
- To
- 12.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLUNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-0A010
Hinge Assy, Rear Door, Upper Rh
[11.1997 -] AL50..GEN |
68750-0A010 |
— | ||
|
68760
|
68760
68760-0A010
Hinge Assy, Rear Door, Upper Lh
[11.1997 -] AL50..GEN |
68760-0A010 |
— | ||
|
68770
|
68770
68770-0A010
Hinge Assy, Rear Door, Lower Rh
[11.1997 -] AL50..GEN |
68770-0A010 |
— | ||
|
68780
|
68780
68780-0A010
Hinge Assy, Rear Door, Lower Lh
[11.1997 -] AL50..GEN |
68780-0A010 |
— | ||
|
69260E
|
69260E
69260-0A010-B0
Handle Assy, Front Door Window Regulator
[12.1996 - 10.1999] AL50 GRAY,TRIM1# |
69260-0A010-B0 |
— | ||
| replacement | |||||
|
69260E
|
69260E
69260-0A010-B1
Handle Assy, Front Door Window Regulator
[12.1996 - 10.1999] AL50 GRAY,TRIM1# |
69260-0A010-B1 |
— | ||
|
69260F
|
69260F
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[12.1996 - 10.1999] AL50 |
90520-01274 |
from US $0.94 |
||
|
69272B
|
69272B
69268-20020
Plate, Window Regulator Handle
[12.1996 - 10.1999] AL50 |
69268-20020 |
— | ||
| replacement | |||||
|
69272B
|
69272B
69285-22010-08 Escutcheon, Window Regulator Handle[12.1996 - 10.1999] AL50 |
69285-22010-08 |
from US $1.76 |
||
|
69803
|
69803
69830-0A010
Regulator Sub-Assy, Rear Door Window, Rh
[12.1996 - 10.1999] AL50 |
69830-0A010 |
— | ||
|
69803
|
69803
69830-0A020
Regulator Sub-Assy, Rear Door Window, Rh
[10.1999 - 11.2001] AL50..SLI,XLI |
69830-0A020 |
— | ||
|
69804
|
69804
69840-0A010
Regulator Sub-Assy, Rear Door Window, Lh
[12.1996 - 10.1999] AL50 |
69840-0A010 |
— | ||
|
69804
|
69804
69840-0A020
Regulator Sub-Assy, Rear Door Window, Lh
[10.1999 - 11.2001] AL50..SLI,XLI |
69840-0A020 |
— | ||
|
69905B
|
69905B
69905-0A010
Channel Sub-Assy, Rear Door Glass, Rh
[12.1996 - 10.1999] AL50 |
69905-0A010 |
— | ||
|
69905B
|
69905B
69905-0A020
Channel Sub-Assy, Rear Door Glass, Rh
[10.1999 -] AL50 |
69905-0A020 |
— | ||
|
69906B
|
69906B
69906-0A010
Channel Sub-Assy, Rear Door Glass, Lh
[12.1996 - 10.1999] AL50 |
69906-0A010 |
— | ||
|
69906B
|
69906B
69906-0A020
Channel Sub-Assy, Rear Door Glass, Lh
[10.1999 -] AL50 |
69906-0A020 |
— | ||
|
69975A
|
69975A
69975-0A010
Filler, Rear Door Glass Channel
[12.1996 -] AL50 |
69975-0A010 |
— | ||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.97 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.61 |
||
|
9017908132
|
9017908132
90179-08132 NUT |
90179-08132 |
US $2.15 |
||
|
9151160608
|
9151160608
91511-60608 New Genuine Part |
91511-60608 |
US $1.97 |
||
