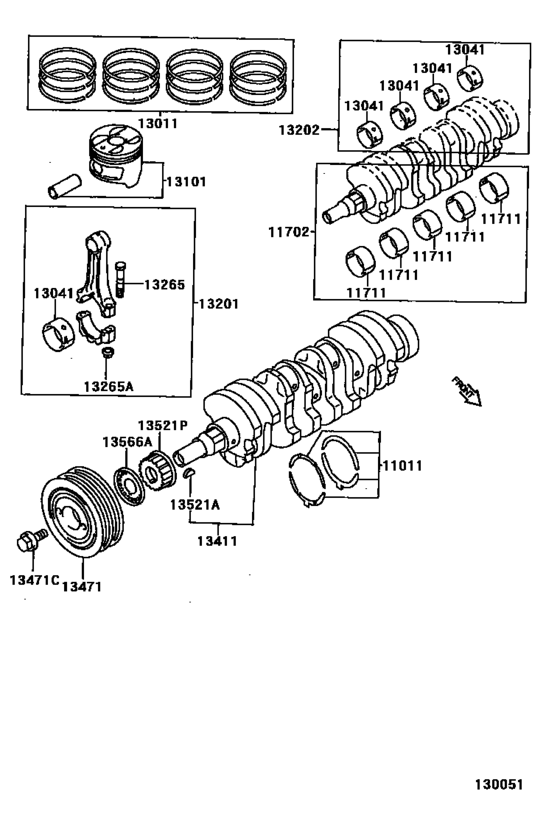

Crankshaft & Piston ([05.1998 - ] (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15020
Washer Set, Crankshaft Thrust
[05.1998 -] 4AFE..AE111 STD |
11011-15020 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[05.1998 -] 4AFE..AE111 STD |
11011-15021 |
US $34.78 |
||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[05.1998 -] 4AFE..AE111 U/S 0.25 |
11704-16010 |
from US $121.08 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[05.1998 -] 4AFE..AE111 MARK 1 |
11701-16010-01 |
from US $20.81 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[05.1998 -] 4AFE..AE111 MARK 2 |
11701-16010-02 |
from US $18.35 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[05.1998 -] 4AFE..AE111 MARK 3 |
11701-16010-03 |
from US $18.31 |
||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[05.1998 -] 4AFE..AE111 MARK 4 |
11701-16010-04 |
US $57.62 |
||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[05.1998 -] 4AFE..AE111 MARK 5 |
11701-16010-05 |
US $45.49 |
||
|
13011
|
13011
13011-16300 Ring Set, Piston[05.1998 -] 4AFE..AE111 STD |
13011-16300 |
from US $121.74 |
||
|
13011
|
13011
13013-16300 Ring Set, Piston[05.1998 -] 4AFE..AE111 O/S 0.50 |
13013-16300 |
from US $125.87 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[05.1998 -] 4AFE..AE111 MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[05.1998 -] 4AFE..AE111 MARK 1 |
13041-15031-01 |
from US $18.19 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[05.1998 -] 4AFE..AE111 MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[05.1998 -] 4AFE..AE111 MARK 2 |
13041-15031-02 |
from US $14.04 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[05.1998 -] 4AFE..AE111 MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[05.1998 -] 4AFE..AE111 MARK 3 |
13041-15031-03 |
from US $15.33 |
||
|
13101
|
13101
13101-16201-01 Piston Sub-Assy, W/pinW/PIN [05.1998 -] 4AFE..AE111 STD,MARK 1 |
13101-16201-01 |
US $94.64 |
||
|
13101
|
13101
13101-16201-02 Piston Sub-Assy, W/pinW/PIN [05.1998 -] 4AFE..AE111 STD,MARK 2 |
13101-16201-02 |
US $94.64 |
||
|
13101
|
13101
13101-16201-03 Piston Sub-Assy, W/pinW/PIN [05.1998 -] 4AFE..AE111 STD,MARK 3 |
13101-16201-03 |
US $94.64 |
||
|
13101
|
13101
13103-16201 Piston Sub-Assy, W/pinW/PIN [05.1998 -] 4AFE..AE111 O/S 0.50 |
13103-16201 |
US $75.27 |
||
|
13201
|
13201
13201-19135 Rod Sub-Assy, Connecting[05.1998 -] 4AFE..AE111 |
13201-19135 |
US $123.76 |
||
| replacement | |||||
|
13201
|
13201
13201-19176 Rod Sub-Assy, Connecting[05.1998 -] 4AFE..AE111 |
13201-19176 |
US $101.92 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[05.1998 -] 4AFE..AE111 U/S 0.25 |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[05.1998 -] 4AFE..AE111 U/S 0.25 |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15030 Bolt, Connecting Rod[05.1998 -] 4AFE..AE111 |
13265-15030 |
US $5.24 |
||
|
13265A
|
13265A
90179-09008 Nut, Hexagon(For Connecting Rod Bolt)[05.1998 -] 4AFE..AE111 |
90179-09008 |
US $2.87 |
||
|
13411
|
13411
13411-02901 Crankshaft[05.1998 - 04.1999] 4AFE..AE111 (L) |
13411-02901 |
US $732.37 |
||
|
13411
|
13411
13411-16900 Crankshaft[05.1998 - 04.1999] 4AFE..AE111 (J) |
13411-16900 |
US $1,158.98 |
||
|
13471
|
13471
13470-15110 Pulley, Crankshaft[05.1998 - 08.2000] 4AFE..AE111 |
13470-15110 |
US $331.97 |
||
| replacement | |||||
|
13471
|
13471
13470-15120 Pulley, Crankshaft[05.1998 - 08.2000] 4AFE..AE111 |
13470-15120 |
US $327.60 |
||
|
13471
|
13471
13470-15120 Pulley, Crankshaft[08.2000 -] 4AFE..AE111 |
13470-15120 |
US $327.60 |
||
|
13471C
|
13471C
90119-12314 Bolt(For Crankshaft Pulley Set)[05.1998 -] 4AFE..AE111 |
90119-12314 |
from US $3.28 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[05.1998 -] 4AFE..AE111 |
90280-05005 |
from US $0.96 |
||
|
13521P
|
13521P
13521-15020 Pulley, Crankshaft Timing[05.1998 -] 4AFE..AE111 |
13521-15020 |
from US $29.85 |
||
|
13566A
|
13566A
13566-15020 Guide, Timing Belt[05.1998 -] 4AFE..AE111 |
13566-15020 |
from US $4.35 |
||
