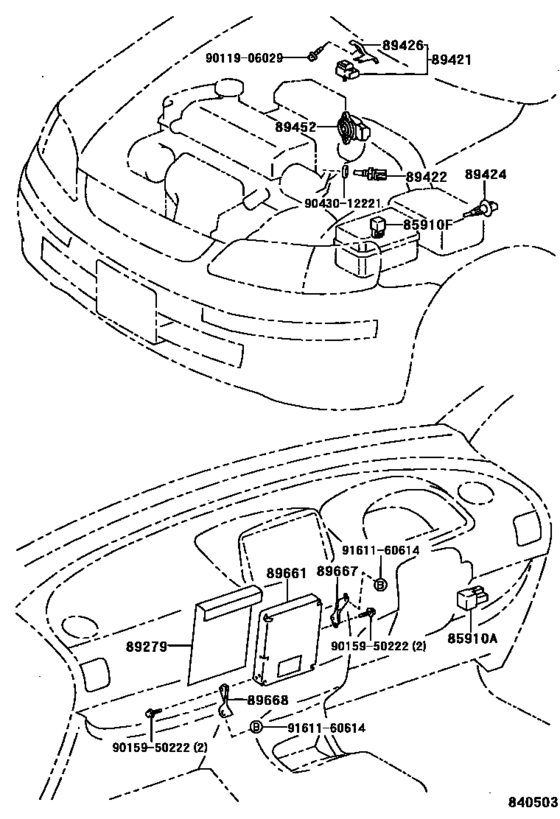

Electronic Fuel Injection System ([05.1998 - ] (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[05.1998 -] AE111 |
90987-02012 |
from US $26.54 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[05.1998 -] AE111 |
90987-02012 |
from US $26.54 |
||
|
89279
|
89279
89279-13020 Cover, Engine Control Computer[05.1998 - 04.1999] AE111 |
89279-13020 |
US $24.75 |
||
|
89279
|
89279
89279-13030 Cover, Engine Control Computer[04.1999 -] AE111 |
89279-13030 |
US $24.75 |
||
|
89421
|
89421
89420-13010 Sensor Assy, Vacuum (For E.f.i.)[05.1998 -] AE111 |
89420-13010 |
US $126.67 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[05.1998 -] AE111 |
89422-35010 |
from US $44.67 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[05.1998 -] AE111 |
89424-12010 |
from US $57.97 |
||
|
89426
|
89426
89426-13010 Bracket, Vacuum Sensor[05.1998 -] AE111 |
89426-13010 |
US $6.12 |
||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[05.1998 -] AE111 |
89452-33030 |
from US $45.19 |
||
|
89661
|
89661
89661-13040
Computer, Engine Control
[05.1998 -] AE111 |
89661-13040 |
— | ||
|
89667
|
89667
89667-13010 Bracket, Engine Control Computer[05.1998 -] AE111 |
89667-13010 |
US $5.24 |
||
|
89668
|
89668
89668-13010 Bracket, Engine Control Computer, No.2[05.1998 -] AE111 |
89668-13010 |
US $5.24 |
||
|
9011906029
|
9011906029
90119-06029
New Genuine Part
|
90119-06029 |
— | ||
| replacement | |||||
|
9011906029
|
9011906029
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9015950222
|
9015950222
90159-50222 New Genuine Part |
90159-50222 |
US $1.60 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
