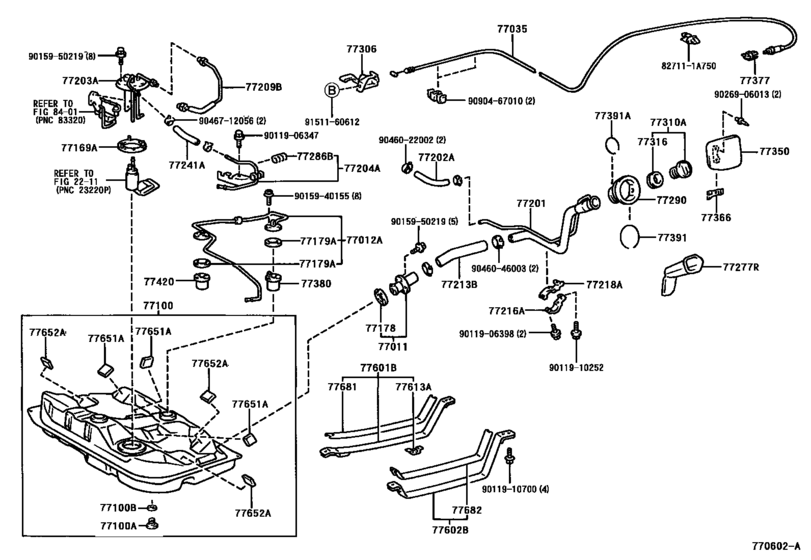

Fuel Tank & Tube ([05.1998 - ] FUEL TANK (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77011
|
77011
77011-12090
Pipe Sub-Assy, Fuel Tank Filler, Lower
[05.1998 -] AE111 |
77011-12090 |
— | ||
|
77012A
|
77012A
77012-12140 Tube Sub-Assy, Fuel Tank Breather, No.1[05.1998 -] AE111 |
77012-12140 |
US $57.13 |
||
|
77035
|
77035
77035-13080 Cable Sub-Assy, Fuel Lid Lock Control[05.1998 -] AE111 |
77035-13080 |
US $36.11 |
||
|
77100
|
77100
77001-13910 Tank Assy, Fuel[05.1998 -] AE111 |
77001-13910 |
US $563.47 |
||
| replacements | |||||
|
77100
|
77100
77001-13150 Tank Assy, Fuel (lpg)[05.1998 -] AE111 |
77001-13150 |
US $563.47 |
||
|
77100
|
77100
77651-20090 Cushion, Fuel Tank, No.1[05.1998 -] AE111 |
77651-20090 |
US $4.48 |
||
|
77100
|
77100
77652-12100 Cushion, Fuel Tank, No.1[05.1998 -] AE111 |
77652-12100 |
US $10.57 |
||
|
77100A
|
77100A
90341-20004 Plug(For Fuel Tank)[05.1998 -] AE111 |
90341-20004 |
US $6.45 |
||
|
77100B
|
77100B
90430-20007 Gasket(For Fuel Tank)[05.1998 -] AE111 |
90430-20007 |
US $3.94 |
||
|
77169A
|
77169A
77169-12030 Gasket, Fuel Pump Bracket[05.1998 -] AE111 |
77169-12030 |
from US $6.24 |
||
|
77178
|
77178
77178-20030 Gasket, Fuel Tank Filler Pipe, Lower[05.1998 -] AE111 |
77178-20030 |
US $2.51 |
||
|
77179A
|
77179A
77179-26010
Gasket, Fuel Tank Evap/vent Tube
[05.1998 -] AE111 |
77179-26010 |
— | ||
| replacement | |||||
|
77179A
|
77179A
77179-26011 Gasket, Fuel Suction Tube Set, No.1[05.1998 -] AE111 |
77179-26011 |
US $3.40 |
||
|
77201
|
77201
77201-12500 Pipe Sub-Assy, Fuel Tank Inlet[05.1998 -] AE111 |
77201-12500 |
US $138.03 |
||
|
77202A
|
77202A
95311-13022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)[05.1998 -] AE111 L=220 |
95311-13022 |
from US $7.86 |
||
|
77203A
|
77203A
77203-12170
Bracket, Fuel Pump
[05.1998 -] AE111 |
77203-12170 |
— | ||
|
77204A
|
77204A
77204-12020
Tube Sub-Assy, Fuel Pump Return
[05.1998 -] AE111 |
77204-12020 |
— | ||
|
77209B
|
77209B
77209-12080
Tube Sub-Assy, Fuel Pump
[05.1998 -] AE111 |
77209-12080 |
— | ||
|
77213B
|
77213B
77213-12160 Hose, Fuel Tank To Filler Pipe[05.1998 -] AE111 |
77213-12160 |
US $55.39 |
||
|
77216A
|
77216A
77216-12070 Support, Fuel Tank Filler Pipe, No.1[05.1998 -] AE111 |
77216-12070 |
US $10.83 |
||
|
77218A
|
77218A
77218-12030 Support, Fuel Tank Filler Pipe, No.3[05.1998 -] AE111 |
77218-12030 |
US $13.10 |
||
|
77241A
|
77241A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[05.1998 -] AE111 *H,L=110 |
95333-06020 |
— | ||
| replacement | |||||
|
77241A
|
77241A
95337-06020 Hose, Differential Pressure Control[05.1998 -] AE111 *H,L=110 |
95337-06020 |
from US $10.21 |
||
|
77277R
|
77277R
77277-12160 Protector, Fuel Tank Filler Pipe[05.1998 -] AE111 |
77277-12160 |
US $47.03 |
||
|
77286B
|
77286B
77285-12040
Clamp, Fuel Tube, No.1
[05.1998 -] AE111 |
77285-12040 |
— | ||
|
77290
|
77290
77291-13030 Shield Assy, Fuel Tank Filler Pipe[05.1998 -] AE111 |
77291-13030 |
US $31.60 |
||
|
77306
|
77306
77306-13060 Lever Sub-Assy, Fuel Lid Lock Open[05.1998 -] AE111 |
77306-13060 |
US $21.69 |
||
|
77310A
|
77310A
77310-48010 Cap Assy, Fuel Tank[05.1998 -] AE111 |
77310-48010 |
from US $30.89 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[05.1998 -] AE111 |
77316-16010 |
from US $11.06 |
||
|
77350
|
77350
77350-13060 Lid Assy, Fuel Filler Opening[05.1998 -] AE111 |
77350-13060 |
US $41.79 |
||
|
77366
|
77366
77360-12090 Spring, Fuel Filler Opening Lid Hinge[05.1998 -] AE111 |
77360-12090 |
US $9.32 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[05.1998 -] AE111 |
77377-12050 |
from US $3.90 |
||
|
77380
|
77380
77380-26010 Valve Assy, Fuel Cut Off[05.1998 -] AE111 |
77380-26010 |
from US $10.22 |
||
|
77391
|
77391
77391-12020 Ring, Fuel Inlet Box[05.1998 -] AE111 |
77391-12020 |
from US $1.97 |
||
|
77391A
|
77391A
77391-12030 Ring, Fuel Inlet Box[05.1998 -] AE111 |
77391-12030 |
US $1.16 |
||
| replacement | |||||
|
77391A
|
77391A
77391-42010 Ring, Fuel Inlet Box[05.1998 -] AE111 |
77391-42010 |
US $3.58 |
||
|
77420
|
77420
77420-26010 Valve Assy, Fuel Cut Off, No.2[05.1998 -] AE111 |
77420-26010 |
from US $11.21 |
||
|
77601B
|
77601B
77601-12210 Band Sub-Assy, Fuel Tank, No.1 Rh[05.1998 -] AE111 |
77601-12210 |
US $34.94 |
||
|
77602B
|
77602B
77602-12130 Band Sub-Assy, Fuel Tank, No.1 Lh[05.1998 -] AE111 |
77602-12130 |
US $34.94 |
||
|
77613A
|
77613A
77613-16030 Bracket, Fuel Tank Band, No.1[05.1998 -] AE111 |
77613-16030 |
US $3.06 |
||
|
77651A
|
77651A
77651-20090 Cushion, Fuel Tank, No.1[05.1998 -] AE111 |
77651-20090 |
US $4.48 |
||
|
77652A
|
77652A
77652-12100 Cushion, Fuel Tank, No.1[05.1998 -] AE111 |
77652-12100 |
US $10.57 |
||
|
77681
|
77681
77681-32060 Seat, Fuel Tank Band, Rh[05.1998 -] AE111 |
77681-32060 |
US $38.30 |
||
|
77682
|
77682
77681-32060 Seat, Fuel Tank Band, Rh[05.1998 -] AE111 |
77681-32060 |
US $38.30 |
||
|
827111A750
|
827111A750
82711-1A750 Clamp, No.1(For Back Door Lock Control Cable) |
82711-1A750 |
US $1.08 |
||
|
9011906347
|
9011906347
90119-06347 New Genuine Part |
90119-06347 |
US $1.43 |
||
|
9011906398
|
9011906398
90119-06398 BOLT WWASHER |
90119-06398 |
US $1.43 |
||
|
9011910252
|
9011910252
90119-10252 BOLT |
90119-10252 |
US $4.84 |
||
|
9011910700
|
9011910700
90119-10700 New Genuine Part |
90119-10700 |
US $2.34 |
||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $2.15 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.59 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9026906013
|
9026906013
90269-06013 RIVET |
90269-06013 |
from US $0.59 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.23 |
||
|
9046046003
|
9046046003
90460-46003
Clamp (For Fuel Filler Pipe)
|
90460-46003 |
— | ||
| replacement | |||||
|
9046046003
|
9046046003
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.74 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9090467010
|
9090467010
90904-67010 New Genuine Part |
90904-67010 |
US $1.60 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
