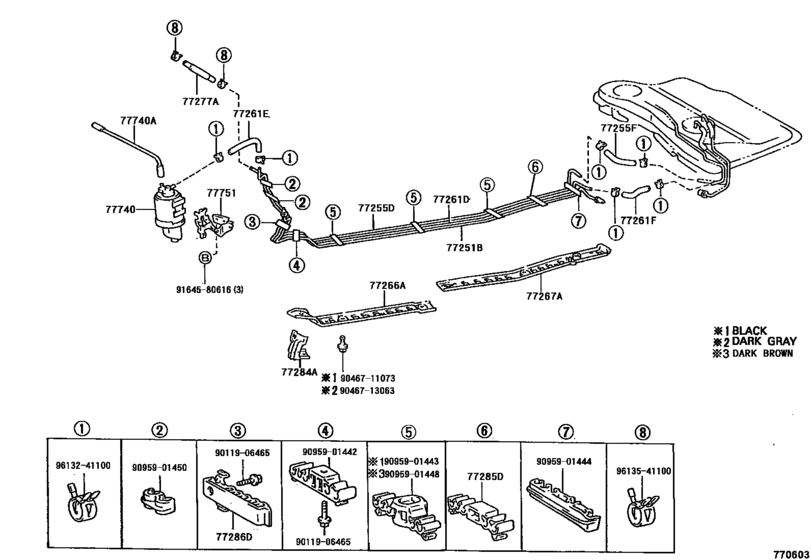

Fuel Tank & Tube ([05.1998 - ] FUEL TUBE (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-12570 Tube, Fuel MainFUEL MAIN [05.1998 -] AE111 |
77251-12570 |
US $58.88 |
||
|
77255D
|
77255D
77255-12510 Tube, Fuel ReturnFUEL RETURN [05.1998 -] AE111 |
77255-12510 |
US $47.35 |
||
|
77255F
|
77255F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[05.1998 -] AE111 *H,L=130 |
95333-06020 |
— | ||
| replacement | |||||
|
77255F
|
77255F
95337-06020 Hose, Differential Pressure Control[05.1998 -] AE111 *H,L=130 |
95337-06020 |
from US $10.21 |
||
|
77261D
|
77261D
77261-12370 Tube, Fuel Tank To CanisterFUEL TANK TO CANISTER [05.1998 -] AE111 |
77261-12370 |
US $48.63 |
||
|
77261E
|
77261E
77259-12200 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) [05.1998 -] AE111 |
77259-12200 |
US $10.05 |
||
|
77261F
|
77261F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[05.1998 -] AE111 *H,L=160 |
95333-06020 |
— | ||
| replacement | |||||
|
77261F
|
77261F
95337-06020 Hose, Differential Pressure Control[05.1998 -] AE111 *H,L=160 |
95337-06020 |
from US $10.21 |
||
|
77266A
|
77266A
77266-12080
Protector, Fuel Tube, No.1
[05.1998 -] AE111 |
77266-12080 |
— | ||
|
77267A
|
77267A
77267-12100
Protector, Fuel Tube, No.2
[05.1998 -] AE111 |
77267-12100 |
— | ||
|
77277A
|
77277A
90447-12139 Hose, Fuel, No.1(For Return Tube, No.1)[05.1998 -] AE111 L=500 |
90447-12139 |
US $12.08 |
||
|
77284A
|
77284A
77284-12030
Protector, Fuel Tube, No.3
[05.1998 -] AE111 |
77284-12030 |
— | ||
|
77285D
|
77285D
77285-12020
Clamp, Fuel Tube W/grommet, No.1
[05.1998 -] AE111 |
77285-12020 |
— | ||
|
77286D
|
77286D
77286-12040
Clamp, Fuel Tube W/grommet, No.2
[05.1998 -] AE111 |
77286-12040 |
— | ||
|
77740
|
77740
77740-12630
Canister Assy, Charcoal
[05.1998 -] AE111 |
77740-12630 |
— | ||
|
77740A
|
77740A
90447-04147 Hose, Fuel, No.1(For Charcoal Canister)FUEL, NO.1(FOR CHARCOAL CANISTER) [05.1998 -] AE111 L=260 |
90447-04147 |
US $3.93 |
||
|
77751
|
77751
77750-12100 Bracket, Charcoal Canister BaseCHARCOAL CANISTER BASE [05.1998 -] AE111 |
77750-12100 |
US $45.43 |
||
|
9011906465
|
9011906465
90119-06465 BOLT |
90119-06465 |
from US $0.92 |
||
|
9046711073
|
9046711073
90467-11073 New Genuine Part |
90467-11073 |
US $3.32 |
||
|
9046713063
|
9046713063
90467-13063
New Genuine Part
|
90467-13063 |
— | ||
|
9095901442
|
9095901442
90959-01442
CLAMP
|
90959-01442 |
— | ||
|
9095901443
|
9095901443
90959-01443
New Genuine Part
|
90959-01443 |
— | ||
|
9095901444
|
9095901444
90959-01444 New Genuine Part |
90959-01444 |
US $3.84 |
||
|
9095901448
|
9095901448
90959-01448
CLAMP
|
90959-01448 |
— | ||
|
9095901450
|
9095901450
90959-01450 Clamp, Fuel Tube, No.1 |
90959-01450 |
US $2.97 |
||
|
9164580616
|
9164580616
91645-80616 New Genuine Part |
91645-80616 |
US $1.46 |
||
| replacement | |||||
|
9164580616
|
9164580616
91641-C0612 New Genuine Part |
91641-C0612 |
US $1.60 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
