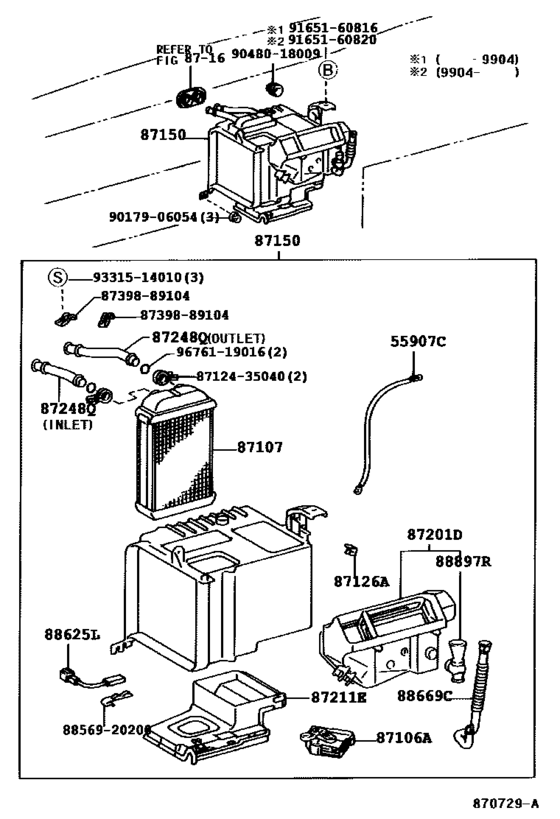

Heating & Air Conditioning - Heater Unit & Blower ([05.1998 - ] W(AUTOMATIC AIR CONDITIONER) (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55907C
|
55907C
55907-12440
Cable Sub-Assy, Water Valve Control
[05.1998 -] AE111 |
55907-12440 |
— | ||
|
87106A
|
87106A
87106-12080
Servo Sub-Assy, Damper
[05.1998 -] AE111 |
87106-12080 |
— | ||
|
87107
|
87107
87107-12500
Unit Sub-Assy, Heater Radiator
[05.1998 -] AE111 |
87107-12500 |
— | ||
|
87126A
|
87126A
87126-13010 Clamp, Heater Control[05.1998 -] AE111 |
87126-13010 |
US $2.18 |
||
|
87150
|
87150
87150-13010
Radiator Assy, Heater
[05.1998 -] AE111 |
87150-13010 |
— | ||
|
87150
|
87150
87150-13020
Radiator Assy, Heater
[05.1998 - 06.1999] AE111 W(AUTOMATIC AIR CONDITIONER) |
87150-13020 |
— | ||
| replacement | |||||
|
87150
|
87150
87150-13021
Radiator Assy, Heater
[05.1998 - 06.1999] AE111 W(AUTOMATIC AIR CONDITIONER) |
87150-13021 |
— | ||
|
87150
|
87150
87150-13021
Radiator Assy, Heater
[06.1999 -] AE111 W(AUTOMATIC AIR CONDITIONER) |
87150-13021 |
— | ||
|
87201D
|
87201D
87201-12480
Duct Sub-Assy, Air
[05.1998 -] AE111 |
87201-12480 |
— | ||
|
87201D
|
87201D
87201-12510
Duct Sub-Assy, Air
[05.1998 -] AE111 W(AUTOMATIC AIR CONDITIONER) |
87201-12510 |
— | ||
|
87211E
|
87211E
87211-13010
Duct, Air
[05.1998 -] AE111 |
87211-13010 |
— | ||
|
87211E
|
87211E
87211-13020
Duct, Air
[05.1998 -] AE111 W(AUTOMATIC AIR CONDITIONER) |
87211-13020 |
— | ||
|
87248Q
|
87248Q
87156-12020
Pipe, Front Heater Radiator Water
[05.1998 -] AE111 INLET |
87156-12020 |
— | ||
|
87248Q
|
87248Q
87156-12030
Pipe, Front Heater Radiator Water
[05.1998 -] AE111 OUTLET |
87156-12030 |
— | ||
|
88625L
|
88625L
88790-12030
Thermistor, Cooler
[05.1998 - 06.1999] AE111 |
88790-12030 |
— | ||
|
88625L
|
88625L
88790-12031
Thermistor, Cooler
[06.1999 -] AE111 |
88790-12031 |
— | ||
|
88669C
|
88669C
88669-12040
Hose, Cooler Air
[05.1998 -] AE111 |
88669-12040 |
— | ||
|
88897R
|
88897R
88897-12210
Aspirator
[05.1998 -] AE111 |
88897-12210 |
— | ||
|
8712435040
|
8712435040
87124-35040 Clamp, Heater, No.3 |
87124-35040 |
from US $1.25 |
||
|
8739889104
|
8739889104
87398-89104
Band Assy (For Combustion Heater)
|
87398-89104 |
— | ||
|
8856920200
|
8856920200
88569-20200
Clamp (for Cooler Relay)
|
88569-20200 |
— | ||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9048018009
|
9048018009
90480-18009 Grommet(For Heater Control Cable) |
90480-18009 |
US $2.34 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9676119016
|
9676119016
96761-19016 RING |
96761-19016 |
from US $0.78 |
||
