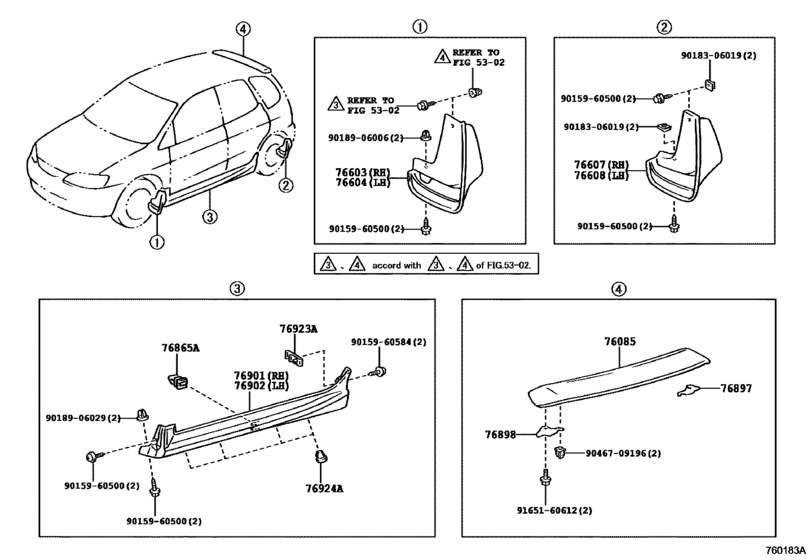

Mudguard & Spoiler ([04.1999 - ] (9904- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76871-13903
Spoiler Sub-Assy, Rear
[05.1998 -] AE111 |
76871-13903 |
— | ||
|
76603
|
76603
76621-13010 Mudguard Sub-Assy, Front Fender, Rh[04.1999 -] AE111 |
76621-13010 |
US $58.39 |
||
|
76604
|
76604
76622-13010 Mudguard Sub-Assy, Front Fender, Lh[04.1999 -] AE111 |
76622-13010 |
US $58.39 |
||
|
76607
|
76607
76625-13090 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1999 -] AE111 |
76625-13090 |
US $58.39 |
||
|
76608
|
76608
76626-13090 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1999 -] AE111 |
76626-13090 |
US $58.39 |
||
|
76897
|
76897
76897-13020 Protector, Rear Spoiler, Side Rh[05.1998 -] AE111 |
76897-13020 |
US $15.58 |
||
|
76898
|
76898
76897-13020 Protector, Rear Spoiler, Side Rh[05.1998 -] AE111 |
76897-13020 |
US $15.58 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.70 |
||
|
9015960584
|
9015960584
90159-60584 SCREW WWASHER |
90159-60584 |
US $1.97 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.78 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.84 |
||
|
9046709196
|
9046709196
90467-09196 Clip, Rear Spoiler, No.1 |
90467-09196 |
from US $0.92 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
