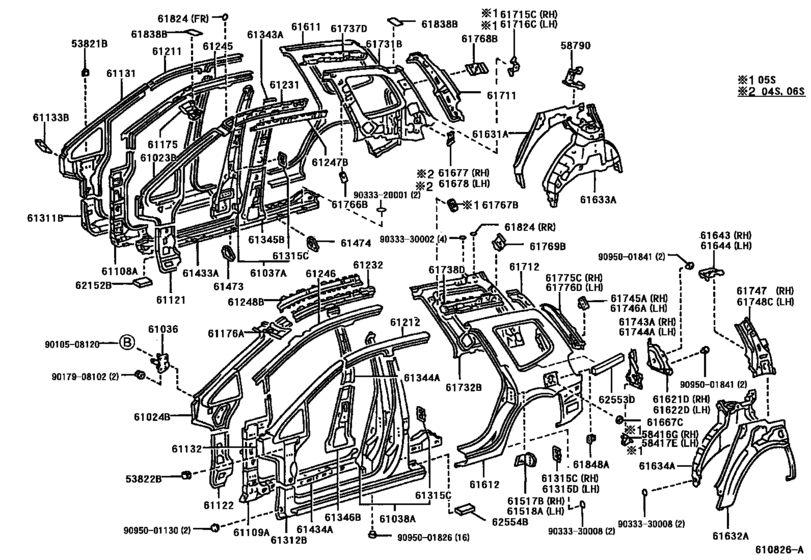

Side Member ([05.1998 - ] (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53821-16010 Bracket, Front Fender, Rear Rh[05.1998 -] AE111 |
53821-16010 |
US $5.02 |
||
|
53822B
|
53822B
53821-16010 Bracket, Front Fender, Rear Rh[05.1998 -] AE111 |
53821-16010 |
US $5.02 |
||
|
58790
|
58790
58791-13080 Carrier Assy, Jack[05.1998 -] AE111 |
58791-13080 |
US $17.76 |
||
|
61023B
|
61023B
61023-13900 Pillar Sub-Assy, Front Body, Inner Rh[05.1998 -] AE111 |
61023-13900 |
US $331.97 |
||
|
61024B
|
61024B
61024-13900 Pillar Sub-Assy, Front Body, Inner Lh[05.1998 -] AE111 |
61024-13900 |
US $331.97 |
||
|
61036
|
61036
61036-13010 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[05.1998 -] AE111 |
61036-13010 |
US $49.50 |
||
|
61037A
|
61037A
61037-13010 Reinforcement Sub-Assy, Center Body Pillar, Rh[05.1998 -] AE111 |
61037-13010 |
US $352.35 |
||
|
61038A
|
61038A
61038-13010 Reinforcement Sub-Assy, Center Body Pillar, Lh[05.1998 -] AE111 |
61038-13010 |
US $352.35 |
||
|
61108A
|
61108A
61108-13010 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[05.1998 -] AE111 |
61108-13010 |
US $196.56 |
||
|
61109A
|
61109A
61109-13010 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[05.1998 -] AE111 |
61109-13010 |
US $196.56 |
||
|
61121
|
61121
61121-13010 Panel, Cowl Side, Outer Rh[05.1998 -] AE111 |
61121-13010 |
US $44.84 |
||
|
61122
|
61122
61122-13010 Panel, Cowl Side, Outer Lh[05.1998 -] AE111 |
61122-13010 |
US $44.84 |
||
|
61131
|
61131
61131-13010 Pillar, Front Body, Upper Outer Rh[05.1998 -] AE111 |
61131-13010 |
US $291.20 |
||
|
61132
|
61132
61132-13010 Pillar, Front Body, Upper Outer Lh[05.1998 -] AE111 |
61132-13010 |
US $291.20 |
||
|
61133B
|
61133B
61133-13010 Bracket, Front Body Pillar ,outer Rh[05.1998 -] AE111 |
61133-13010 |
US $8.30 |
||
|
61175
|
61175
61175-13010 Reinforcement, Front Body Pillar, Inner No.2 Rh[05.1998 -] AE111 |
61175-13010 |
US $19.36 |
||
|
61176A
|
61176A
61176-13010 Reinforcement, Front Body Pillar, Inner No.2 Lh[05.1998 -] AE111 |
61176-13010 |
US $19.36 |
||
|
61211
|
61211
61211-13060 Rail, Roof Side, Outer Rh[05.1998 -] AE111 |
61211-13060 |
US $142.69 |
||
|
61212
|
61212
61212-13060 Rail, Roof Side, Outer Lh[05.1998 -] AE111 |
61212-13060 |
US $142.69 |
||
|
61231
|
61231
61231-13160 Rail, Roof Side, Inner Rh[05.1998 -] AE111 |
61231-13160 |
US $71.34 |
||
|
61232
|
61232
61232-13130 Rail, Roof Side, Inner Lh[05.1998 -] AE111 |
61232-13130 |
US $71.34 |
||
|
61245
|
61245
61245-13010 Reinforcement, Roof Side Rail, Outer Rh[05.1998 -] AE111 |
61245-13010 |
US $104.83 |
||
|
61246
|
61246
61246-13010 Reinforcement, Roof Side Rail, Outer Lh[05.1998 -] AE111 |
61246-13010 |
US $104.83 |
||
|
61247B
|
61247B
61247-13010 Reinforcement, Roof Side Rail, Inner Rh[05.1998 -] AE111 |
61247-13010 |
US $56.64 |
||
|
61248B
|
61248B
61248-13010 Reinforcement, Roof Side Rail, Inner Lh[05.1998 -] AE111 |
61248-13010 |
US $56.64 |
||
|
61311B
|
61311B
61311-13010 Pillar, Center Body, Outer Rh[05.1998 -] AE111 |
61311-13010 |
US $529.98 |
||
|
61312B
|
61312B
61312-13010 Pillar, Center Body, Outer Lh[05.1998 -] AE111 |
61312-13010 |
US $529.98 |
||
|
61315C
|
61315C
61315-22020 Retainer, Door Lock Striker Plate[05.1998 -] AE111 |
61315-22020 |
US $18.64 |
||
|
61315D
|
61315D
61315-22020 Retainer, Door Lock Striker Plate[05.1998 -] AE111 |
61315-22020 |
US $18.64 |
||
|
61343A
|
61343A
61343-13010 Pillar, Center Body, Inner Rh[05.1998 -] AE111 |
61343-13010 |
US $237.33 |
||
|
61344A
|
61344A
61344-13010 Pillar, Center Body, Inner Lh[05.1998 -] AE111 |
61344-13010 |
US $237.33 |
||
|
61345B
|
61345B
61345-13010 Pillar, Center Body, Inner Lower Rh[05.1998 -] AE111 |
61345-13010 |
US $237.33 |
||
|
61346B
|
61346B
61346-13010 Pillar, Center Body, Inner Lower Lh[05.1998 -] AE111 |
61346-13010 |
US $237.33 |
||
|
61433A
|
61433A
61433-13010 Reinforcement, Rocker Panel, Outer Rh[05.1998 -] AE111 |
61433-13010 |
US $158.70 |
||
|
61434A
|
61434A
61434-13010 Reinforcement, Rocker Panel, Outer Lh[05.1998 -] AE111 |
61434-13010 |
US $158.70 |
||
|
61473
|
61473
61473-13010 Plate, Pillar No.3, Lower[05.1998 -] AE111 |
61473-13010 |
US $9.61 |
||
|
61474
|
61474
61474-13010 Plate, Pillar No.4, Lower[05.1998 -] AE111 |
61474-13010 |
US $9.61 |
||
|
61517B
|
61517B
61517-13010 Reinforcement, Quarter Lock Pillar, Rh[05.1998 -] AE111 |
61517-13010 |
US $18.20 |
||
|
61518A
|
61518A
61518-13010 Reinforcement, Quarter Lock Pillar, Lh[05.1998 -] AE111 |
61518-13010 |
US $18.20 |
||
|
61611
|
61611
61611-13340 Panel, Quarter, Rh[05.1998 -] AE111 |
61611-13340 |
US $761.49 |
||
|
61612
|
61612
61612-13340 Panel, Quarter, Lh[05.1998 -] AE111 |
61612-13340 |
US $761.49 |
||
|
61621D
|
61621D
61621-13041 Trough, Back Door Opening, Rh[05.1998 -] AE111 |
61621-13041 |
US $54.60 |
||
|
61622D
|
61622D
61622-13041 Trough, Back Door Opening, Lh[05.1998 -] AE111 |
61622-13041 |
US $54.60 |
||
|
61631A
|
61631A
61631-13100 Panel, Quarter Wheel House, Outer Rh[05.1998 -] AE111 |
61631-13100 |
US $160.16 |
||
|
61632A
|
61632A
61632-13090 Panel, Quarter Wheel House, Outer Lh[05.1998 -] AE111 |
61632-13090 |
US $160.16 |
||
|
61633A
|
61633A
61607-13200 Panel, Quarter Wheel House, Inner Rh[05.1998 -] AE111..06S |
61607-13200 |
US $257.71 |
||
|
61634A
|
61634A
61608-13190 Panel, Quarter Wheel House, Inner Lh[05.1998 -] AE111..06S |
61608-13190 |
US $257.71 |
||
|
61643
|
61643
61643-13040 Gusset, Quarter Wheel House Center, Rh[05.1998 -] AE111 |
61643-13040 |
US $19.36 |
||
|
61644
|
61644
61643-13040 Gusset, Quarter Wheel House Center, Rh[05.1998 -] AE111 |
61643-13040 |
US $19.36 |
||
|
61667C
|
61667C
61667-12110 Seal, Qaurter Panel, No.1[05.1998 - 04.1999] AE111 |
61667-12110 |
US $1.31 |
||
|
61677
|
61677
61677-13020 Reinforce, Seat Belt Anchor, No.2 Lower Rh[05.1998 -] AE111..06S |
61677-13020 |
US $13.40 |
||
|
61678
|
61678
61678-13020 Reinforce, Seat Belt Anchor, No.2 Lower Lh[05.1998 -] AE111..06S |
61678-13020 |
US $13.40 |
||
|
61711
|
61711
61711-13110 Panel, Roof Side, Outer Rh[05.1998 -] AE111 |
61711-13110 |
US $96.10 |
||
|
61712
|
61712
61712-13110 Panel, Roof Side, Outer Lh[05.1998 -] AE111 |
61712-13110 |
US $96.10 |
||
|
61731B
|
61731B
61731-13370 Panel, Roof Side, Inner Rh[05.1998 -] AE111 |
61731-13370 |
US $273.73 |
||
|
61732B
|
61732B
61732-13380 Panel, Roof Side, Inner Lh[05.1998 -] AE111 |
61732-13380 |
US $273.73 |
||
|
61737D
|
61737D
61737-13050 Reinforcement, Roof Side, Inner Rh[05.1998 -] AE111 |
61737-13050 |
US $53.87 |
||
|
61738D
|
61738D
61709-13020 Reinforcement, Roof Side, Inner Lh[05.1998 -] AE111 |
61709-13020 |
US $65.81 |
||
|
61743A
|
61743A
61743-13030 Reinforcement, Back Door Opening Side, Rh[05.1998 -] AE111 |
61743-13030 |
US $45.72 |
||
|
61744A
|
61744A
61744-13030 Reinforcement, Back Door Opening Side, Lh[05.1998 -] AE111 |
61744-13030 |
US $45.72 |
||
|
61745A
|
61745A
61745-13090 Reinforcement, Back Door Opening, Lower Rh[05.1998 -] AE111 |
61745-13090 |
US $11.94 |
||
|
61746A
|
61746A
61746-13080 Reinforcement, Back Door Opening, Lower Lh[05.1998 -] AE111 |
61746-13080 |
US $11.94 |
||
|
61747
|
61747
61747-13040 Brace, Roof Side Inner To Wheel House, Rh[05.1998 -] AE111 |
61747-13040 |
US $100.46 |
||
|
61748C
|
61748C
61748-13070 Brace, Roof Side Inner To Wheel House, Lh[05.1998 -] AE111 |
61748-13070 |
US $99.01 |
||
|
61766B
|
61766B
61766-12220 Reinforcement, Belt Anchor To Roof Side, Inner Rh[05.1998 -] AE111 |
61766-12220 |
US $7.43 |
||
|
61768B
|
61768B
61768-13060 Reinforce, Belt Anchor To Roof Side, Inner Rear Rh[05.1998 -] AE111 |
61768-13060 |
US $30.43 |
||
|
61769B
|
61769B
61769-13060 Reinforce, Belt Anchor To Roof Side, Inner Rear Lh[05.1998 -] AE111 |
61769-13060 |
US $30.43 |
||
|
61775C
|
61775C
61775-13010 Frame, Back Door Opening Side, Rh[05.1998 -] AE111 |
61775-13010 |
US $57.66 |
||
|
61776D
|
61776D
61776-13010 Frame, Back Door Opening Side, Lh[05.1998 -] AE111 |
61776-13010 |
US $57.66 |
||
|
61824
|
61824
61824-13010 Plate, Noise Control, No.1[05.1998 -] AE111 FRONT |
61824-13010 |
US $1.89 |
||
|
61824
|
61824
61825-13010 Plate, Noise Control, No.1[05.1998 -] AE111 REAR |
61825-13010 |
US $4.37 |
||
|
61838B
|
61838B
61838-20060 Plate, Noise Control, No.4[05.1998 -] AE111 |
61838-20060 |
US $3.49 |
||
|
61848A
|
61848A
61848-13010 Retainer, Quarter Panel, Lh[05.1998 -] AE111 |
61848-13010 |
US $6.12 |
||
|
62152B
|
62152B
62151-20160 Plate, Noise Control, No.1[05.1998 -] AE111 |
62151-20160 |
from US $5.87 |
||
|
62553D
|
62553D
62553-13020 Pad, Pillar, No.3[05.1998 - 09.1999] AE111 |
62553-13020 |
US $4.37 |
||
|
62554B
|
62554B
62554-12130 Pad, Cowl Side Silencer, No.2[05.1998 -] AE111 |
62554-12130 |
US $2.04 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.21 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9095001130
|
9095001130
90950-01130 Plug, Hole(For Rear Door Panel) |
90950-01130 |
US $5.24 |
||
| replacement | |||||
|
9095001130
|
9095001130
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.97 |
||
