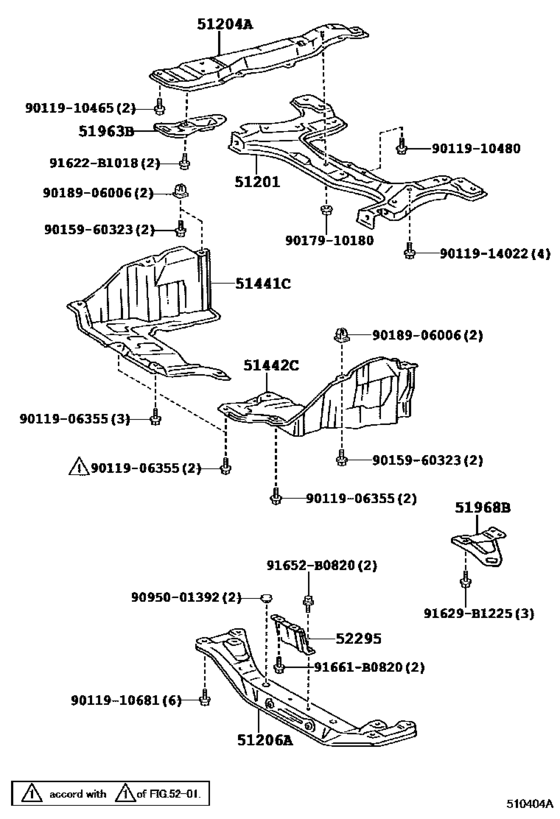

Suspension Crossmember & Under Cover ([05.1998 - ] (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-12380 Crossmember Sub-Assy, Front Suspension[05.1998 -] AE111 |
51201-12380 |
US $633.71 |
||
|
51204A
|
51204A
51204-12080 Member Sub-Assy, Engine Mounting, Center[05.1998 - 05.1999] AE111 |
51204-12080 |
US $215.49 |
||
| replacement | |||||
|
51204A
|
51204A
51204-12082 Member Sub-Assy, Engine Mounting, Center[05.1998 - 05.1999] AE111 |
51204-12082 |
US $218.40 |
||
|
51204A
|
51204A
51204-12081 Member Sub-Assy, Engine Mounting, Center[05.1999 - 01.2000] AE111 |
51204-12081 |
US $216.94 |
||
| replacement | |||||
|
51204A
|
51204A
51204-12082 Member Sub-Assy, Engine Mounting, Center[05.1999 - 01.2000] AE111 |
51204-12082 |
US $218.40 |
||
|
51204A
|
51204A
51204-12082 Member Sub-Assy, Engine Mounting, Center[01.2000 -] AE111 |
51204-12082 |
US $218.40 |
||
|
51206A
|
51206A
51206-12040 Member Sub-Assy, Rear Suspension[05.1998 -] AE111 |
51206-12040 |
US $294.11 |
||
|
51441C
|
51441C
51441-12150
Cover, Engine Under, Rh
[05.1998 -] AE111 |
51441-12150 |
— | ||
|
51442C
|
51442C
51442-12110
Cover, Engine Under, Lh
[05.1998 -] AE111 |
51442-12110 |
— | ||
|
51963B
|
51963B
51963-12210
Hook, No.1
[05.1998 -] AE111 |
51963-12210 |
— | ||
|
51968B
|
51968B
51968-13020 Hook, Transport, Rear Lh[05.1998 -] AE111 |
51968-13020 |
US $53.29 |
||
|
52295
|
52295
52295-12020 Brace, Rear Suspension Member, Rh[05.1998 -] AE111 |
52295-12020 |
US $23.59 |
||
|
91622B1018
|
91622B1018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.88 |
||
|
91629B1225
|
91629B1225
91629-B1225 BOLT WWASHER |
91629-B1225 |
from US $1.93 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
91661B0820
|
91661B0820
91661-B0820 Bolt |
91661-B0820 |
US $2.87 |
||
|
9011906355
|
9011906355
90119-06355 BOLT |
90119-06355 |
from US $0.99 |
||
|
9011910465
|
9011910465
90119-10465 WASHER |
90119-10465 |
US $2.15 |
||
|
9011910480
|
9011910480
90119-10480 BOLT WWASHER |
90119-10480 |
US $3.20 |
||
| replacement | |||||
|
9011910480
|
9011910480
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $3.05 |
||
|
9011910681
|
9011910681
90119-10681 New Genuine Part |
90119-10681 |
US $3.85 |
||
|
9011914022
|
9011914022
90119-14022 BOLT WWASHER |
90119-14022 |
US $9.32 |
||
|
9015960323
|
9015960323
90159-60323 SCREW |
90159-60323 |
from US $0.84 |
||
|
9017910180
|
9017910180
90179-10180 New Genuine Part |
90179-10180 |
US $1.79 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.13 |
||
