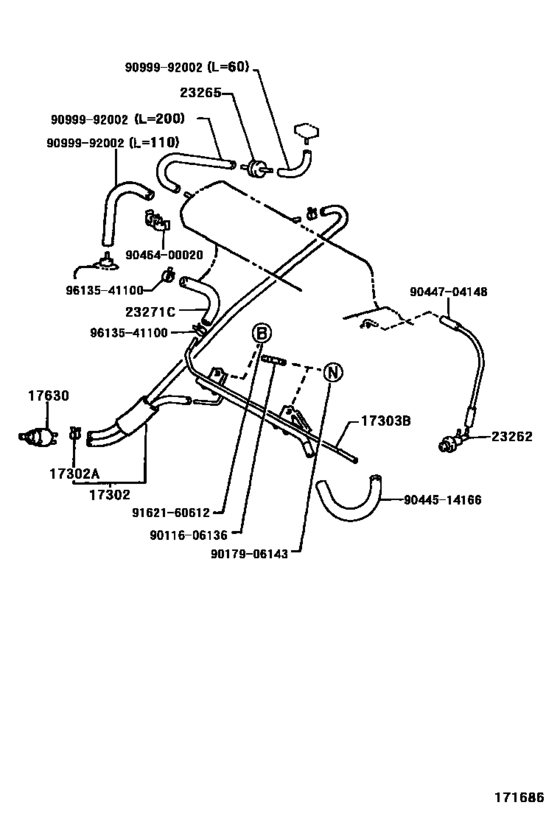

Vacuum Piping ([05.1998 - ] (9805- )) Diagram Toyota SPACIO
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- AE111
- ENGINE
- 4AFE
- From
- 05.1998
- To
- 05.2001
- Seating Capacity
- 06S
- Vehicle Model
- SPACIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-15010
Hose Sub-Assy, Air
[05.1998 -] 4AFE..AE111 |
17302-15010 |
— | ||
|
17302A
|
17302A
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1998 -] 4AFE..AE111 |
96132-51000 |
from US $1.48 |
||
|
17303B
|
17303B
17303-15090 Pipe Sub-Assy, Air, No.1[05.1998 -] 4AFE..AE111 |
17303-15090 |
US $91.73 |
||
|
17630
|
17630
17630-15080 Valve Assy, Air Control[05.1998 -] 4AFE..AE111 |
17630-15080 |
US $99.59 |
||
|
23262
|
23262
90925-05068 Valve, Bimetal Vacuum Switching, No.1BIMETAL VACUUM SWITCHING, NO.1 [05.1998 -] 4AFE..AE111 |
90925-05068 |
from US $59.09 |
||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[05.1998 -] 4AFE..AE111 |
90917-11030 |
from US $8.56 |
||
|
23271C
|
23271C
90910-05214 Hose, Fuel[05.1998 -] 4AFE..AE111 |
90910-05214 |
US $8.88 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.33 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9044514166
|
9044514166
90445-14166
HOSE
|
90445-14166 |
— | ||
|
9044704148
|
9044704148
90447-04148
Hose, Fuel, No.1(For Charcoal Canister)
|
90447-04148 |
— | ||
|
9046400020
|
9046400020
90464-00020 New Genuine Part |
90464-00020 |
US $3.94 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
