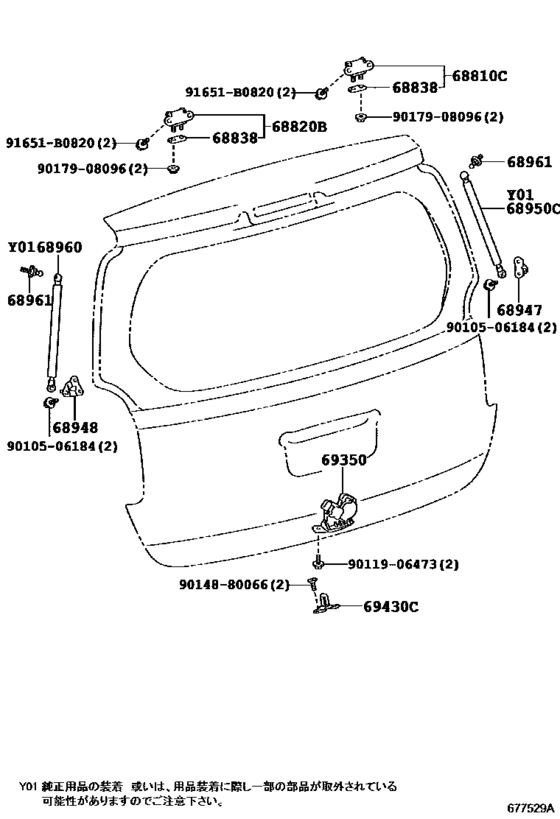

Back Door Lock & Handle ([07.2015 - ] (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68810C
|
68810C
68810-52100 Hinge Assy, Back Door, Rh[07.2015 -] NSP141 PAD T=1.0 |
68810-52100 |
US $27.66 |
||
|
68820B
|
68820B
68810-52100 Hinge Assy, Back Door, Rh[07.2015 -] NSP141 PAD T=1.0 |
68810-52100 |
US $27.66 |
||
|
68838
|
68838
68838-52030 Pad, Back Door Hinge, No.1[07.2015 -] NSP141 T=1.0 |
68838-52030 |
US $3.52 |
||
|
68947
|
68947
68947-52031 Bracket, Back Door Damper Stay, Lower Rh[07.2015 -] NSP141 |
68947-52031 |
US $8 |
||
|
68948
|
68948
68948-52031 Bracket, Back Door Damper Stay, Lower Lh[07.2015 -] NSP141 |
68948-52031 |
US $8 |
||
|
68950C
|
68950C
68950-52431 Stay Assy, Back Door, Rh[07.2015 -] NSP141 |
68950-52431 |
US $102.12 |
||
|
68960
|
68960
68960-52391 Stay Assy, Back Door, Lh[07.2015 -] NSP141 |
68960-52391 |
US $102.12 |
||
|
68961
|
68961
68961-20140 Bolt, Back Door Stay[07.2015 - 01.2017] NSP141 |
68961-20140 |
US $4.48 |
||
|
68961
|
68961
68961-52020 Bolt, Back Door Stay[02.2017 -] NSP141 |
68961-52020 |
US $4.48 |
||
|
69350
|
69350
69350-52350 Lock Assy, Back Door[07.2015 -] NSP141 |
69350-52350 |
US $154.08 |
||
|
69430C
|
69430C
69430-52040 Striker Assy, Back Door Lock[07.2015 -] NSP141 |
69430-52040 |
US $15.04 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.12 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.68 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
