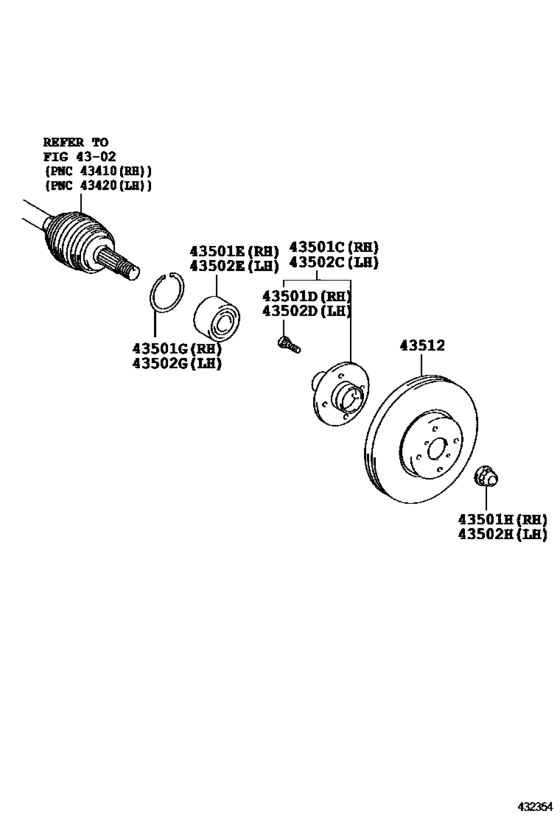

Front Axle Hub ([07.2015 - ] (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-52030 Hub Sub-Assy, Front Axle[07.2015 -] NSP141 |
43502-52030 |
from US $85.84 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[07.2015 -] NSP141 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[07.2015 -] NSP141 |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90363-40079
Bearing (For Front Axle Hub)
[07.2015 - 09.2016] NSP141 |
90363-40079 |
— | ||
| replacement | |||||
|
43501E
|
43501E
90369-40009 Bearing (For Front Axle Hub)[07.2015 - 09.2016] NSP141 |
90369-40009 |
from US $48.22 |
||
|
43501E
|
43501E
90369-40009 Bearing (For Front Axle Hub)[10.2016 -] NSP141 |
90369-40009 |
from US $48.22 |
||
|
43501G
|
43501G
90521-80003 Ring, Hole Snap (For Front Axle Hub Rh)[07.2015 -] NSP141 |
90521-80003 |
US $3.20 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[07.2015 -] NSP141 |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-52030 Hub Sub-Assy, Front Axle[07.2015 -] NSP141 |
43502-52030 |
from US $85.84 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[07.2015 -] NSP141 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[07.2015 -] NSP141 |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90363-40079
Bearing (For Front Axle Hub)
[07.2015 - 09.2016] NSP141 |
90363-40079 |
— | ||
| replacement | |||||
|
43502E
|
43502E
90369-40009 Bearing (For Front Axle Hub)[07.2015 - 09.2016] NSP141 |
90369-40009 |
from US $48.22 |
||
|
43502E
|
43502E
90369-40009 Bearing (For Front Axle Hub)[10.2016 -] NSP141 |
90369-40009 |
from US $48.22 |
||
|
43502G
|
43502G
90521-80003 Ring, Hole Snap (For Front Axle Hub Rh)[07.2015 -] NSP141 |
90521-80003 |
US $3.20 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[07.2015 -] NSP141 |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-52120 Disc, Front[07.2015 -] NSP141 |
43512-52120 |
from US $118.40 |
||
