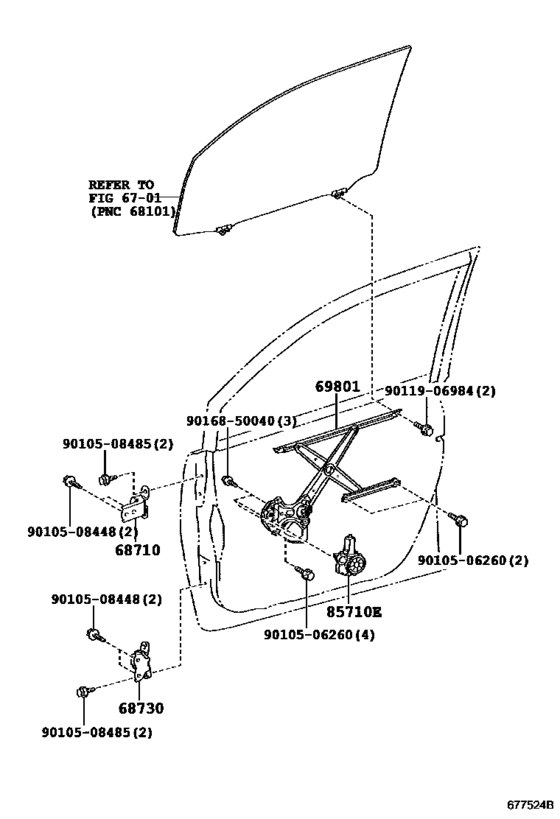

Front Door Window Regulator & Hinge ([07.2015 - ] DRIVER SIDE (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[07.2015 -] NSP141 |
68710-12151 |
from US $31.16 |
||
|
68730
|
68730
68730-12120 Hinge Assy, Front Door, Lower Rh[07.2015 -] NSP141 |
68730-12120 |
from US $34.05 |
||
|
69801
|
69801
69801-52160 Regulator Sub-Assy, Front Door Window, Rh[07.2015 -] NSP141 |
69801-52160 |
US $51.97 |
||
|
85710E
|
85710E
85710-12490 Motor Assy, Power Window Regulator, Rh[07.2015 - 12.2017] NSP141 |
85710-12490 |
from US $318.94 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.82 |
||
|
9010508485
|
9010508485
90105-08485 BOLT FLANGE |
90105-08485 |
from US $0.78 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
