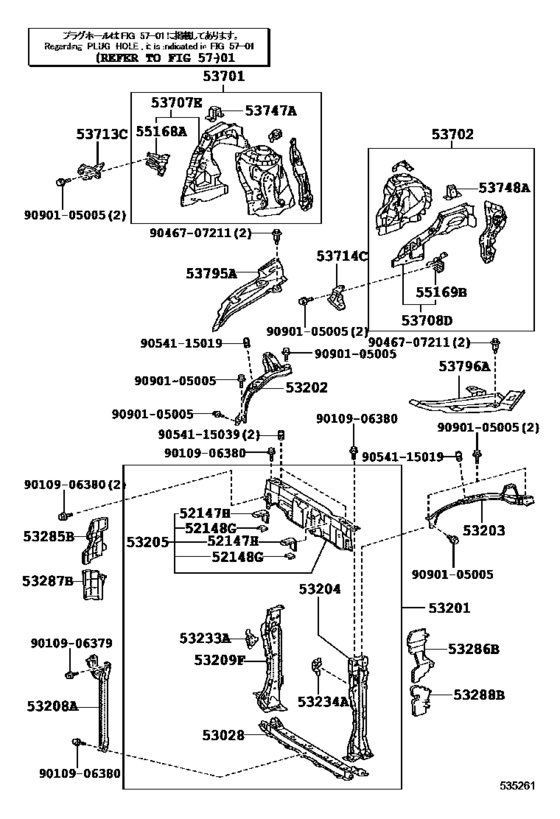

Front Fender Apron & Dash Panel ([07.2015 - ] RADIATOR SUPPORT&FRONT FENDER APRON (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52147H
|
52147H
52147-12200 Bracket, Front Bumper Mounting[07.2015 -] NSP141 |
52147-12200 |
US $8.59 |
||
|
52148G
|
52148G
52148-12160 Bracket, Front Bumper Mounting, No.2[07.2015 -] NSP141 |
52148-12160 |
US $2.48 |
||
|
53028
|
53028
53028-52091 Support Sub-Assy, Radiator, Lower[07.2015 -] NSP141 |
53028-52091 |
US $119.88 |
||
|
53201
|
53201
53210-52915 Support Sub-Assy, Radiator[07.2015 -] NSP141 |
53210-52915 |
US $504 |
||
|
53202
|
53202
53202-52250 Support Sub-Assy, Radiator, Rh[07.2015 -] NSP141 |
53202-52250 |
US $45.30 |
||
|
53203
|
53203
53203-52240 Support Sub-Assy, Radiator, Lh[07.2015 -] NSP141 |
53203-52240 |
US $45.30 |
||
|
53204
|
53204
53204-52020 Brace Sub-Assy, Radiator Support To Cross Member[07.2015 -] NSP141 |
53204-52020 |
US $85.84 |
||
|
53205
|
53205
53205-52909 Support Sub-Assy, Radiator, Upper[07.2015 -] NSP141 |
53205-52909 |
US $131.72 |
||
|
53208A
|
53208A
53208-52140 Support Sub-Assy, Hood Lock[07.2015 -] NSP141 |
53208-52140 |
US $44.23 |
||
|
53209F
|
53209F
53209-52020 Brace Sub-Assy, Radiator Support To Cross Member, Rh[07.2015 -] NSP141 |
53209-52020 |
US $113.96 |
||
|
53233A
|
53233A
53233-52070 Bracket, Headlamp, No.1 Rh[07.2015 -] NSP141 |
53233-52070 |
US $6.08 |
||
|
53234A
|
53234A
53234-52080 Bracket, Headlamp, No.1 Lh[07.2015 -] NSP141 |
53234-52080 |
US $6.08 |
||
|
53285B
|
53285B
53285-52450 Seal, Radiator Side Air, No.1[07.2015 -] NSP141 |
53285-52450 |
US $24.32 |
||
|
53286B
|
53286B
53286-52370 Seal, Radiator Side Air, No.2[07.2015 -] NSP141 |
53286-52370 |
US $25.23 |
||
|
53287B
|
53287B
53287-52210 Extension, Radiator Support, Rh[07.2015 -] NSP141 |
53287-52210 |
US $15.36 |
||
|
53288B
|
53288B
53288-52200 Extension, Radiator Support, Lh[07.2015 -] NSP141 |
53288-52200 |
US $17.94 |
||
|
53701
|
53701
53701-52220 Apron Sub-Assy, Front Fender, Rh[07.2015 -] NSP141 |
53701-52220 |
US $219.86 |
||
|
53702
|
53702
53702-52220 Apron Sub-Assy, Front Fender, Lh[07.2015 -] NSP141 |
53702-52220 |
US $219.86 |
||
|
53707E
|
53707E
53707-52060 Apron Sub-Assy, Fender Side, Rh[07.2015 -] NSP141 |
53707-52060 |
US $97.68 |
||
|
53708D
|
53708D
53708-52060 Apron Sub-Assy, Fender Side, Lh[07.2015 -] NSP141 |
53708-52060 |
US $116.92 |
||
|
53713C
|
53713C
53713-52100 Extension, Front Fender Apron, Front Rh[07.2015 -] NSP141 |
53713-52100 |
US $19 |
||
|
53714C
|
53714C
53714-52130 Extension, Front Fender Apron, Front Lh[07.2015 -] NSP141 |
53714-52130 |
US $19 |
||
|
53747A
|
53747A
53747-52100 Extension, Apron Fender Side, Rh[07.2015 -] NSP141 |
53747-52100 |
US $13.98 |
||
|
53748A
|
53748A
53748-52100 Extension, Apron Fender Side, Lh[07.2015 -] NSP141 |
53748-52100 |
US $13.98 |
||
|
53795A
|
53795A
53795-52040 Cover, Engine Room, Side[07.2015 -] NSP141 |
53795-52040 |
US $28.12 |
||
|
53796A
|
53796A
53796-52010 Cover, Engine Room Side, Lh[07.2015 -] NSP141 |
53796-52010 |
US $28.12 |
||
|
55168A
|
55168A
55168-52130 Bracket, Front Fender Mounting, Rh[07.2015 -] NSP141 |
55168-52130 |
US $22.19 |
||
|
55169B
|
55169B
55169-52130 Bracket, Front Fender Mounting, Lh[07.2015 -] NSP141 |
55169-52130 |
US $22.19 |
||
|
9010906379
|
9010906379
90109-06379 New Genuine Part |
90109-06379 |
US $0.96 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9046707211
|
9046707211
90467-07211 Clip(For Reserve Tank Outlet Hose No.2) |
90467-07211 |
from US $0.88 |
||
|
9054115019
|
9054115019
90541-15019 Cushion, Hood Bumper |
90541-15019 |
from US $3.20 |
||
|
9054115039
|
9054115039
90541-15039 Cushion, Hood Bumper |
90541-15039 |
US $3.20 |
||
|
9090105005
|
9090105005
90901-05005 New Genuine Part |
90901-05005 |
US $1.44 |
