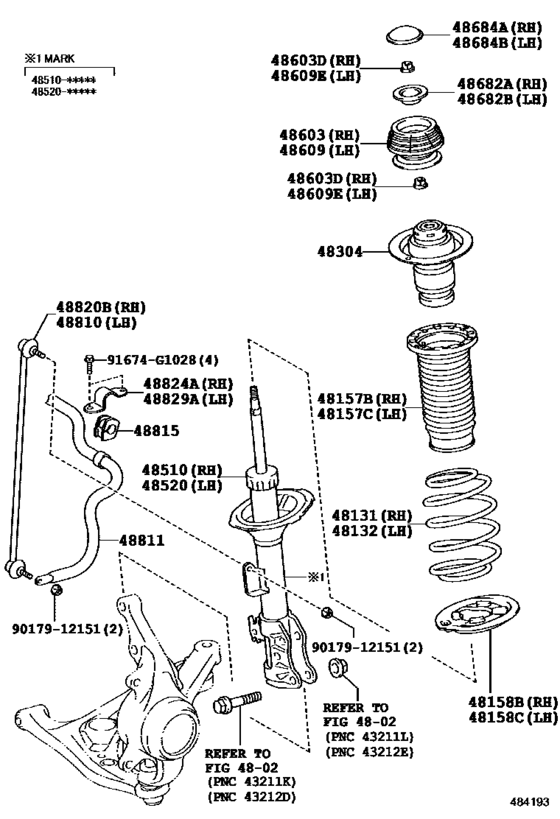

Front Spring & Shock Absorber ([07.2015 - ] (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-52F51 Spring, Front Coil, Rh[07.2015 -] NSP141 |
48131-52F51 |
US $105.08 |
||
|
48132
|
48132
48131-52F51 Spring, Front Coil, Rh[07.2015 -] NSP141 |
48131-52F51 |
US $105.08 |
||
|
48157B
|
48157B
48157-52040 Insulator, Front Coil Spring, Upper[07.2015 - 07.2016] NSP141 |
48157-52040 |
US $24.17 |
||
|
48157B
|
48157B
48157-52050 Insulator, Front Coil Spring, Upper[07.2016 -] NSP141 |
48157-52050 |
US $15.84 |
||
|
48157C
|
48157C
48157-52040 Insulator, Front Coil Spring, Upper[07.2015 - 07.2016] NSP141 |
48157-52040 |
US $24.17 |
||
|
48157C
|
48157C
48157-52050 Insulator, Front Coil Spring, Upper[07.2016 -] NSP141 |
48157-52050 |
US $15.84 |
||
|
48158B
|
48158B
48158-52010 Insulator, Front Coil Spring, Lower[07.2015 - 07.2016] NSP141 |
48158-52010 |
US $17.48 |
||
|
48158B
|
48158B
48158-52020 Insulator, Front Coil Spring, Lower[07.2016 -] NSP141 |
48158-52020 |
US $11.84 |
||
|
48158C
|
48158C
48158-52010 Insulator, Front Coil Spring, Lower[07.2015 - 07.2016] NSP141 |
48158-52010 |
US $17.48 |
||
|
48158C
|
48158C
48158-52020 Insulator, Front Coil Spring, Lower[07.2016 -] NSP141 |
48158-52020 |
US $11.84 |
||
|
48304
|
48304
48304-52111 Bumper Sub-Assy, Front Spring, No.1[07.2015 -] NSP141 |
48304-52111 |
US $29.64 |
||
|
48510
|
48510
48510-52M60 Absorber Assy, Shock, Front Rh[07.2015 - 07.2016] NSP141 MARK 48510-52M60 |
48510-52M60 |
US $238.78 |
||
|
48510
|
48510
48510-52N80 Absorber Assy, Shock, Front Rh[07.2016 -] NSP141 MARK 48510-52N80 |
48510-52N80 |
US $215.49 |
||
|
48520
|
48520
48520-52A40 Absorber Assy, Shock, Front Lh[07.2015 - 07.2016] NSP141 MARK 48520-52A40 |
48520-52A40 |
US $238.78 |
||
|
48520
|
48520
48520-52B80 Absorber Assy, Shock, Front Lh[07.2016 -] NSP141 MARK 48520-52B80 |
48520-52B80 |
US $296.80 |
||
|
48603
|
48603
48609-52100 Support Sub-Assy, Front Suspension[07.2015 -] NSP141 |
48609-52100 |
from US $55.94 |
||
|
48603D
|
48603D
90179-12145 Nut[07.2015 -] NSP141 |
90179-12145 |
from US $0.96 |
||
|
48609
|
48609
48609-52100 Support Sub-Assy, Front Suspension[07.2015 -] NSP141 |
48609-52100 |
from US $55.94 |
||
|
48609E
|
48609E
90179-12145 Nut[07.2015 -] NSP141 |
90179-12145 |
from US $0.96 |
||
|
48682A
|
48682A
48682-52040 Support, Front Suspension, No.2[07.2015 -] NSP141 |
48682-52040 |
from US $6.56 |
||
|
48682B
|
48682B
48682-52040 Support, Front Suspension, No.2[07.2015 -] NSP141 |
48682-52040 |
from US $6.56 |
||
|
48684A
|
48684A
48684-52020 Cover, Bearing Dust[07.2015 -] NSP141 |
48684-52020 |
US $8 |
||
|
48684B
|
48684B
48684-52020 Cover, Bearing Dust[07.2015 -] NSP141 |
48684-52020 |
US $8 |
||
|
48810
|
48810
48820-52030 Link Assy, Front Stabilizer[07.2015 -] NSP141 |
48820-52030 |
from US $66.12 |
||
|
48811
|
48811
48811-52170 Bar, Stabilizer, Front[07.2015 -] NSP141 |
48811-52170 |
US $128.76 |
||
|
48815
|
48815
48815-52090 Bush, Front Stabilizer Bar, No.1[07.2015 -] NSP141 |
48815-52090 |
from US $8.80 |
||
|
48820B
|
48820B
48820-52030 Link Assy, Front Stabilizer[07.2015 -] NSP141 |
48820-52030 |
from US $66.12 |
||
|
48824A
|
48824A
48824-52060 Bracket, Front Stabilizer, No.1[07.2015 -] NSP141 |
48824-52060 |
US $15.96 |
||
|
48829A
|
48829A
48824-52060 Bracket, Front Stabilizer, No.1[07.2015 -] NSP141 |
48824-52060 |
US $15.96 |
||
|
91674G1028
|
91674G1028
91674-G1028 BOLT FLANGE |
91674-G1028 |
US $1.92 |
||
|
9017912151
|
9017912151
90179-12151 Nut(For Front Stabilizer Link) |
90179-12151 |
from US $0.94 |
