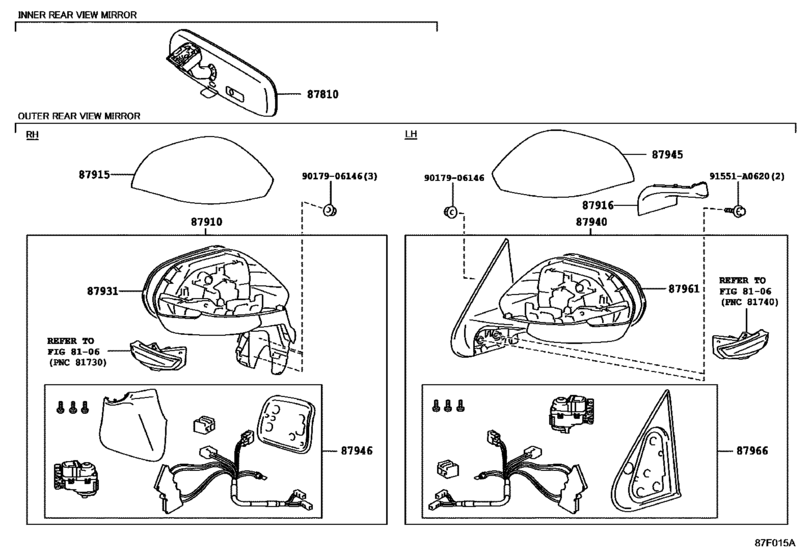

Mirror ([07.2015 - ] (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-52041 Mirror Assy, Inner Rear View[07.2015 -] NSP141 |
87810-52041 |
from US $84.36 |
||
|
87910
|
87910
87910-52F50 Mirror Assy, Outer Rear View, Rh[07.2015 -] NSP141 |
87910-52F50 |
US $361.20 |
||
|
87915
|
87915
87915-52250-A0 Cover, Outer Mirror, Rh[07.2015 -] NSP141 WHITE PEARL CS.,070 |
87915-52250-A0 |
US $37.56 |
||
|
87915
|
87915
87915-52250-B0
Cover, Outer Mirror, Rh
[07.2015 -] NSP141 SILVER ME.,1F7 |
87915-52250-B0 |
— | ||
| replacement | |||||
|
87915
|
87915
87915-52H00-B0 Cover, Outer Mirror, Rh[07.2015 -] NSP141 SILVER ME.,1F7 |
87915-52H00-B0 |
US $61.71 |
||
|
87915
|
87915
87915-52250-C0 Cover, Outer Mirror, Rh[07.2015 -] NSP141 BLACK MC.,209 |
87915-52250-C0 |
US $37.56 |
||
|
87915
|
87915
87915-52250-C1 Cover, Outer Mirror, Rh[07.2016 -] NSP141 BLACKISH AGEHA GF.,221 |
87915-52250-C1 |
US $37.56 |
||
|
87915
|
87915
87915-52250-D0 Cover, Outer Mirror, Rh[07.2015 -] NSP141 SUPER RED 5,3P0 |
87915-52250-D0 |
US $37.56 |
||
|
87915
|
87915
87915-52250-D1 Cover, Outer Mirror, Rh[07.2015 -] NSP141 DEEP RED M.M.,3R9 |
87915-52250-D1 |
US $37.56 |
||
|
87915
|
87915
87915-52250-E0 Cover, Outer Mirror, Rh[07.2015 -] NSP141 DK. BROWN M.M.,4U3 |
87915-52250-E0 |
US $37.56 |
||
|
87915
|
87915
87915-52250-F0 Cover, Outer Mirror, Rh[07.2015 - 12.2017] NSP141 SPICY KHAKI PEARL CS.,5B8 |
87915-52250-F0 |
US $37.56 |
||
|
87915
|
87915
87915-52250-G0 Cover, Outer Mirror, Rh[07.2015 - 12.2017] NSP141 CITRUS M.M.,6W2 |
87915-52250-G0 |
US $37.56 |
||
|
87915
|
87915
87915-52250-J0 Cover, Outer Mirror, Rh[07.2015 - 07.2016] NSP141 LT.BLUE M.M.,8S1 |
87915-52250-J0 |
US $41.35 |
||
|
87916
|
87916
87916-52040 Bezel, Outer Mirror[07.2015 -] NSP141 |
87916-52040 |
US $15.84 |
||
|
87931
|
87931
87931-52F50 Outer Mirror, Rh[07.2015 -] NSP141 |
87931-52F50 |
US $31.46 |
||
|
87940
|
87940
87940-52F40 Mirror Assy, Outer Rear View, Lh[07.2015 -] NSP141 |
87940-52F40 |
US $361.20 |
||
|
87945
|
87945
87945-52250-A0 Cover, Outer Mirror, Lh[07.2015 -] NSP141 WHITE PEARL CS.,070 |
87945-52250-A0 |
US $37.56 |
||
|
87945
|
87945
87945-52250-B0 Cover, Outer Mirror, Lh[07.2015 -] NSP141 SILVER ME.,1F7 |
87945-52250-B0 |
US $37.56 |
||
|
87945
|
87945
87945-52250-C0 Cover, Outer Mirror, Lh[07.2015 -] NSP141 BLACK MC.,209 |
87945-52250-C0 |
US $37.56 |
||
|
87945
|
87945
87945-52250-C1 Cover, Outer Mirror, Lh[07.2016 -] NSP141 BLACKISH AGEHA GF.,221 |
87945-52250-C1 |
US $37.56 |
||
|
87945
|
87945
87945-52250-D0 Cover, Outer Mirror, Lh[07.2015 -] NSP141 SUPER RED 5,3P0 |
87945-52250-D0 |
US $37.56 |
||
|
87945
|
87945
87945-52250-D1 Cover, Outer Mirror, Lh[07.2015 -] NSP141 DEEP RED M.M.,3R9 |
87945-52250-D1 |
US $37.56 |
||
|
87945
|
87945
87945-52250-E0 Cover, Outer Mirror, Lh[07.2015 -] NSP141 DK. BROWN M.M.,4U3 |
87945-52250-E0 |
US $37.56 |
||
|
87945
|
87945
87945-52250-F0 Cover, Outer Mirror, Lh[07.2015 - 12.2017] NSP141 SPICY KHAKI PEARL CS.,5B8 |
87945-52250-F0 |
US $37.56 |
||
|
87945
|
87945
87945-52250-G0 Cover, Outer Mirror, Lh[07.2015 - 12.2017] NSP141 CITRUS M.M.,6W2 |
87945-52250-G0 |
US $37.56 |
||
|
87945
|
87945
87945-52250-J0 Cover, Outer Mirror, Lh[07.2015 - 07.2016] NSP141 LT.BLUE M.M.,8S1 |
87945-52250-J0 |
US $41.35 |
||
|
87946
|
87946
87946-52F50 Retractor, Outer Mirror, Rh[07.2015 -] NSP141 |
87946-52F50 |
US $148.51 |
||
|
87961
|
87961
87961-52F40 Mirror Outer, Lh[07.2015 -] NSP141 |
87961-52F40 |
US $31.46 |
||
|
87966
|
87966
87966-52F40 Retractor, Outer Mirror, Lh[07.2015 -] NSP141 |
87966-52F40 |
US $148.51 |
||
|
91551A0620
|
91551A0620
91551-A0620 New Genuine Part |
91551-A0620 |
US $1.76 |
||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.60 |
||
