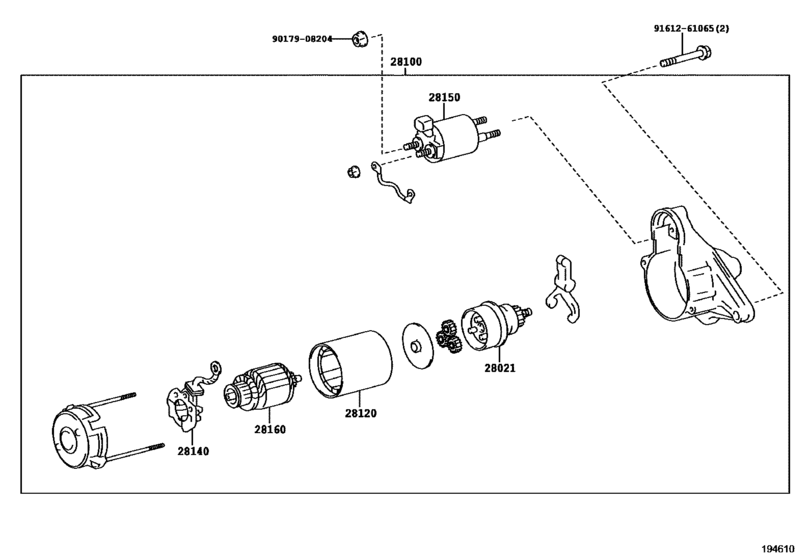

Starter ([07.2015 - ] 12V 1.7KW (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21100 Clutch Sub-Assy, Starter Center Bearing[07.2015 -] 2NRFKE..NSP141 |
28021-21100 |
US $77.17 |
||
|
28100
|
28100
28100-47250 Starter Assy[07.2015 -] 2NRFKE..NSP141 12V 1.7KW |
28100-47250 |
US $983.28 |
||
|
28120
|
28120
28120-47210
Yoke Assy, Starter
[07.2015 -] 2NRFKE..NSP141 |
28120-47210 |
— | ||
|
28140
|
28140
28140-21100
Holder Assy, Starter Brush
[07.2015 -] 2NRFKE..NSP141 |
28140-21100 |
— | ||
|
28150
|
28150
28150-47250 Switch Assy, Magnet Starter[07.2015 -] 2NRFKE..NSP141 |
28150-47250 |
US $147.06 |
||
|
28160
|
28160
28160-38070
Armature Assy, Starter
[07.2015 - 01.2018] 2NRFKE..NSP141 |
28160-38070 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
