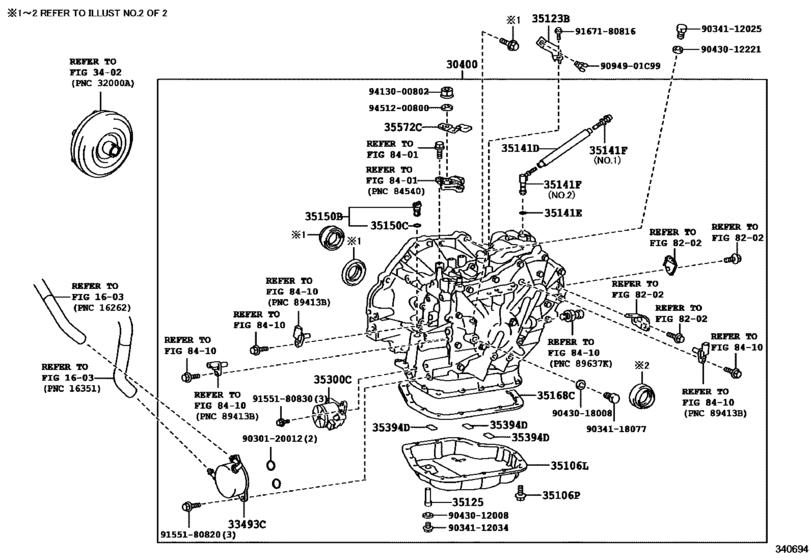

Transaxle Assy(Cvt) ([07.2015 - ] (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-12270
Transaxle Assy, Continuously Variable
[07.2015 -] NSP141 K312 |
30400-12270 |
— | ||
|
33493C
|
33493C
33493-52010 Cooler, Oil[07.2015 -] NSP141 |
33493-52010 |
US $96.20 |
||
|
35106L
|
35106L
35106-12170 Pan Sub-Assy, Transaxle Oil(Cvt)[07.2015 - 01.2016] NSP141 |
35106-12170 |
US $48.48 |
||
| replacement | |||||
|
35106L
|
35106L
35106-12171 Pan Sub-Assy, Transaxle Oil(Cvt)[07.2015 - 01.2016] NSP141 |
35106-12171 |
US $49.70 |
||
|
35106L
|
35106L
35106-12171 Pan Sub-Assy, Transaxle Oil(Cvt)[02.2016 -] NSP141 |
35106-12171 |
US $49.70 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[07.2015 -] NSP141 |
90119-06173 |
from US $0.82 |
||
|
35123B
|
35123B
35123-52050 Skirt,transmission Breather[07.2015 -] NSP141 |
35123-52050 |
US $4.51 |
||
|
35125
|
35125
35125-12430 Tube, Transmission Oil Filler, No.1[07.2015 -] NSP141 |
35125-12430 |
US $2.08 |
||
|
35141D
|
35141D
35121-52020 Hose(For Breather Plug)[07.2015 -] NSP141 |
35121-52020 |
US $7.86 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[07.2015 - 04.2016] NSP141 |
90301-06005 |
from US $2.40 |
||
|
35141E
|
35141E
90301-06021 Ring, O (For Breather Plug)[05.2016 -] NSP141 |
90301-06021 |
US $2.24 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[07.2015 -] NSP141 NO.1 |
90930-03149 |
from US $3.52 |
||
|
35141F
|
35141F
90930-03191 Plug, Breather, No.1(Cvt)[07.2015 -] NSP141 NO.2 |
90930-03191 |
US $4.16 |
||
|
35150B
|
35150B
35150-48010 Plug, Transaxle Hole[07.2015 -] NSP141 |
35150-48010 |
US $4.48 |
||
|
35150C
|
35150C
90301-09173 Ring, O(For Transmission Oil Filler Tube)[07.2015 -] NSP141 |
90301-09173 |
from US $2.18 |
||
|
35168C
|
35168C
35168-12091 Gasket, Transaxle Oil Pan(Cvt)[07.2015 -] NSP141 |
35168-12091 |
from US $5.92 |
||
|
35300C
|
35300C
35300-12011 Pump Assy, Oil W/motor[07.2015 -] NSP141 |
35300-12011 |
US $595 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[07.2015 -] NSP141 |
35394-30011 |
from US $5.76 |
||
|
35572C
|
35572C
35572-12170 Lever, Transmission Control Shaft[07.2015 -] NSP141 |
35572-12170 |
US $4.95 |
||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9030120012
|
9030120012
90301-20012 Ring, O (For Transmission Oil Cooler) |
90301-20012 |
from US $2.65 |
||
|
9034112025
|
9034112025
90341-12025 Plug, No.4 |
90341-12025 |
US $3.04 |
||
|
9034112034
|
9034112034
90341-12034 Plug Sub-Assy, Drain (Atm) |
90341-12034 |
from US $3.04 |
||
|
9034118077
|
9034118077
90341-18077 Plug , Filler(CVT FE) |
90341-18077 |
US $3.04 |
||
|
9043012008
|
9043012008
90430-12008 Gasket (For Shift Inter Lock Plate) |
90430-12008 |
from US $0.88 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
