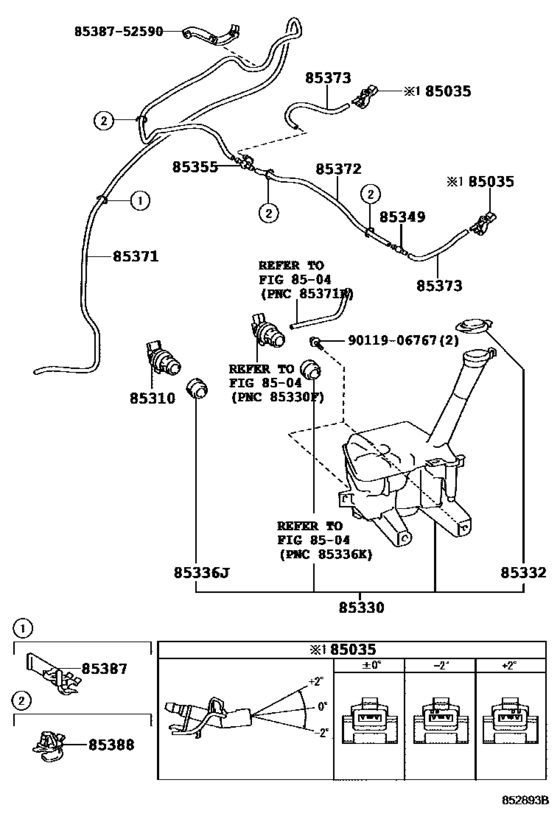

Windshield Washer ([07.2015 - ] (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12400 Nozzle Sub-Assy, Washer[07.2015 -] NSP141 ANGLE 0 |
85381-12400 |
from US $8.56 |
||
|
85035
|
85035
85381-12410 Nozzle Sub-Assy, Washer[07.2015 -] NSP141 ANGLE -2 |
85381-12410 |
US $7.37 |
||
|
85035
|
85035
85381-12420 Nozzle Sub-Assy, Washer[07.2015 -] NSP141 ANGLE +2 |
85381-12420 |
from US $7.37 |
||
|
85310
|
85310
85330-21010 Motor And Pump Assy, Windshield Washer[07.2015 -] NSP141 |
85330-21010 |
from US $54.86 |
||
|
85330
|
85330
85315-52480
Jar Assy, Windshield Washer
[07.2015 -] NSP141 |
85315-52480 |
— | ||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[07.2015 -] NSP141 |
85316-16070 |
from US $1.75 |
||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[07.2015 -] NSP141 |
85336-60300 |
from US $1.92 |
||
|
85349
|
85349
85375-10260 Joint, Windshield Washer Hose, No.1[07.2015 -] NSP141 |
85375-10260 |
from US $1.62 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[07.2015 -] NSP141 |
85321-28020 |
from US $10.65 |
||
|
85371
|
85371
90099-62097
Hose, Windshield Washer (From Motor To Joint)
[07.2015 -] NSP141 L=2100 |
90099-62097 |
— | ||
|
85372
|
85372
90099-62099
Hose, Windshield Washer (From Joint To Joint), No.1
[07.2015 -] NSP141 L=440 |
90099-62099 |
— | ||
|
85373
|
85373
90099-62102
Hose, Windshield Washer (From Motor To Joint)
[07.2015 -] NSP141 L=150 |
90099-62102 |
— | ||
|
85387
|
85387
82711-2C060 Clamp No.1 (For Windseield Washer)[07.2015 -] NSP141 |
82711-2C060 |
US $1.44 |
||
|
85388
|
85388
85371-12040 Clamp, Rear Washer Hose[07.2015 -] NSP141 |
85371-12040 |
from US $0.96 |
||
|
8538752590
|
8538752590
85387-52590
Clamp No.1 (for Windseield Washer)
|
85387-52590 |
— | ||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
