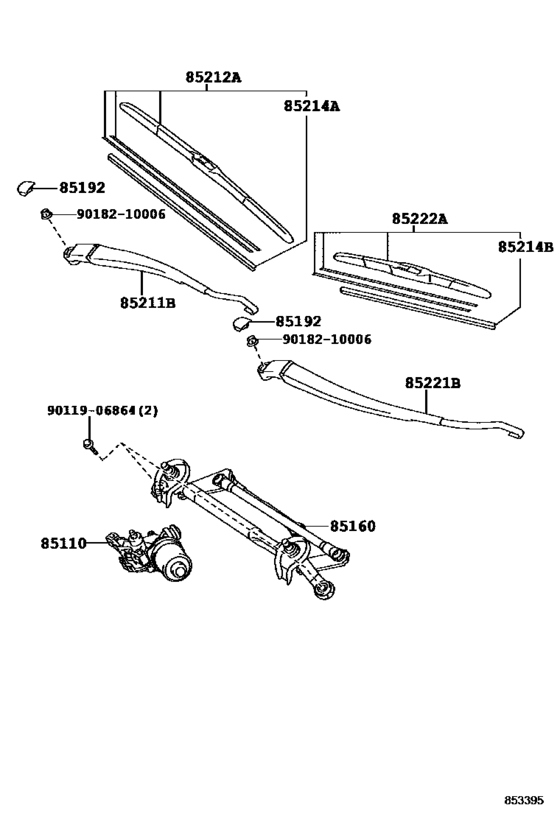

Windshield Wiper ([07.2015 - ] (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-52712 Motor Assy, Windshield Wiper[07.2015 -] NSP141 |
85110-52712 |
US $288.40 |
||
|
85160
|
85160
85150-52650 Link Assy, Windshield Wiper[07.2015 -] NSP141 |
85150-52650 |
US $133.20 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[07.2015 -] NSP141 |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-52470 Arm, Front Wiper, Rh[07.2015 -] NSP141 |
85211-52470 |
US $58.98 |
||
|
85212A
|
85212A
85212-52250 Blade, Fr Wiper, Rh[07.2015 -] NSP141 |
85212-52250 |
US $65.21 |
||
|
85214A
|
85214A
85214-52110 Rubber, Wiper, Rh[07.2015 -] NSP141 |
85214-52110 |
from US $14.40 |
||
|
85214B
|
85214B
85214-68030 Rubber, Wiper, Lh[07.2015 -] NSP141 |
85214-68030 |
from US $7.29 |
||
|
85221B
|
85221B
85221-52440 Arm, Front Wiper, Lh[07.2015 -] NSP141 |
85221-52440 |
US $69.62 |
||
|
85222A
|
85222A
85222-52220 Blade, Fr Wiper, Lh[07.2015 -] NSP141 |
85222-52220 |
US $22.50 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
from US $1.01 |
