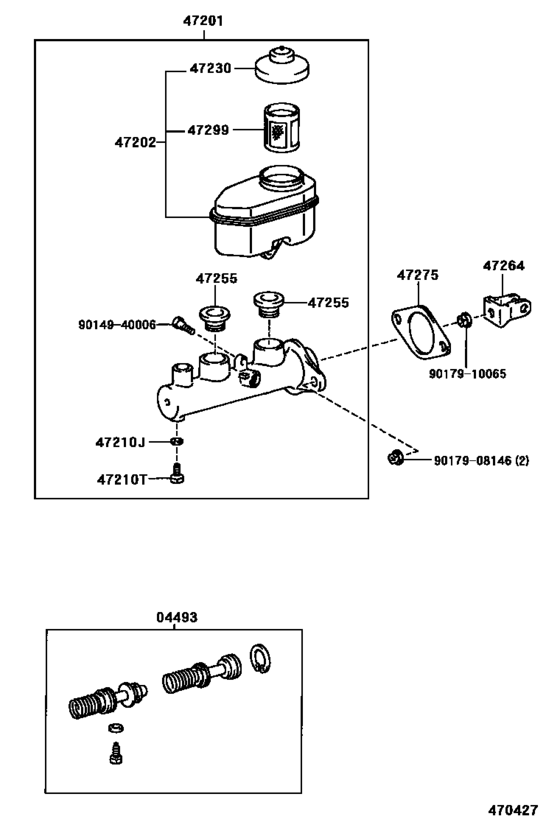

Brake Master Cylinder ([05.1995 - ] (9505- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-32080 Cylinder Kit, Brake Master[04.1997 - 08.2000] AE111,114,CE114,116 |
04493-32080 |
US $88.44 |
||
|
47201
|
47201
47201-1A060 Cylinder Sub-Assy, Brake Master[04.1997 - 08.2000] AE111,114,CE114,116 |
47201-1A060 |
US $291.20 |
||
|
47202
|
47202
47220-32060 Reservoir Sub-Assy, Brake Master Cylinder[04.1997 - 08.2000] AE11#,CE11#,EE111 |
47220-32060 |
US $131.04 |
||
| replacement | |||||
|
47202
|
47202
47220-12180 Reservoir Sub-Assy, Brake Master Cylinder[04.1997 - 08.2000] AE11#,CE11#,EE111 |
47220-12180 |
US $131.04 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[04.1997 - 08.2000] AE11#,CE11#,EE111 |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[04.1997 - 08.2000] AE11#,CE11#,EE111 |
90109-06077 |
from US $2.87 |
||
|
47230
|
47230
47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler[04.1997 - 08.2000] AE11#,CE11#,EE111 |
47230-12040 |
from US $9.32 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[04.1997 - 08.2000] AE11#,CE11#,EE111 |
47255-16010 |
from US $6.45 |
||
|
47264
|
47264
47264-16020 Clevis, Master Cylinder Push Rod[04.1997 - 10.1999] AE111,114,CE11#;AE110,EE111..(3FC,4F,5F)..LX; AE110..4FC..(SEVIN,XEVIN) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ |
47264-16020 |
from US $6.12 |
||
|
47264
|
47264
47264-32020 Clevis, Master Cylinder Push Rod[10.1999 - 08.2000] AE11#,CE11#,EE111 |
47264-32020 |
US $6.12 |
||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[04.1997 - 08.2000] AE11#,CE11#,EE111 |
47275-12020 |
from US $0.98 |
||
|
47299
|
47299
47299-24010 Strainer, Brake Master Cylinder Reservoir[04.1997 - 08.2000] AE11#,CE11#,EE111 |
47299-24010 |
US $9.68 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
