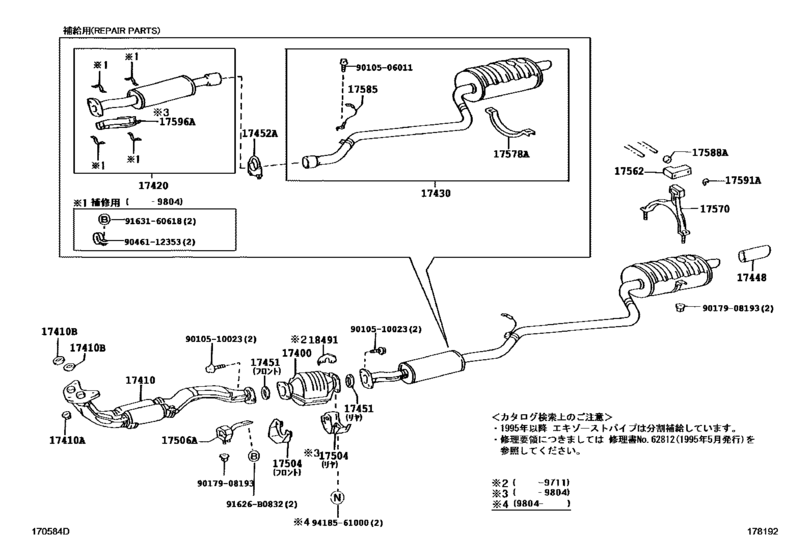

Exhaust Pipe ([04.1997 - ] (9704- )4AGE) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-16700 Converter Assy, W/catalyst[04.1997 - 11.1997] 4AGE..AE111 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
18450-16700 |
US $1,086.18 |
||
|
17400
|
17400
18450-1A020 Converter Assy, W/catalyst[11.1997 - 08.2000] 4AGE..AE111 ﾅｼ(ﾊｲｷｵﾝｾﾝｻ) |
18450-1A020 |
US $1,089.09 |
||
|
17410
|
17410
17410-1A230
Pipe Assy, Exhaust, Front
[04.1997 - 08.2000] 4AGE..AE111 |
17410-1A230 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 08.2000] 4A#..AE111,114 |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 08.2000] 4A#..AE111,114 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[04.1997 - 08.2000] 4AGE..AE111 |
90917-06061 |
from US $4.93 |
||
|
17420
|
17420
17420-16650 Pipe Assy, Exhaust, Center[04.1997 - 04.1998] 4AGE..AE111 |
17420-16650 |
US $358.18 |
||
|
17420
|
17420
17420-16651 Pipe Assy, Exhaust, Center[04.1998 - 08.2000] 4AGE..AE111 |
17420-16651 |
US $361.09 |
||
|
17430
|
17430
17430-1A780 Pipe Assy, Exhaust, Tail[04.1997 - 11.1998] 4AGE..AE111 |
17430-1A780 |
US $531.44 |
||
| replacements | |||||
|
17430
|
17430
17430-1A907 Pipe Assy, Exhaust, Tail[04.1997 - 11.1998] 4AGE..AE111 |
17430-1A907 |
US $531.44 |
||
|
17430
|
17430
17578-16050 Clamp, Muffler[04.1997 - 11.1998] 4AGE..AE111 |
17578-16050 |
US $64.01 |
||
|
17430
|
17430
17430-1A781 Pipe Assy, Exhaust, Tail[11.1998 - 08.2000] 4AGE..AE111 |
17430-1A781 |
US $531.44 |
||
| replacements | |||||
|
17430
|
17430
17430-1A907 Pipe Assy, Exhaust, Tail[11.1998 - 08.2000] 4AGE..AE111 |
17430-1A907 |
US $531.44 |
||
|
17430
|
17430
17578-16050 Clamp, Muffler[11.1998 - 08.2000] 4AGE..AE111 |
17578-16050 |
US $64.01 |
||
|
17448
|
17448
17408-16020 Baffle Sub Assy, Exhaust Tail Pipe[04.1997 - 08.2000] 4AGE..AE111 |
17408-16020 |
from US $70.57 |
||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[04.1997 - 08.2000] 4AGE..AE111 フロント |
90917-06043 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-52060 GASKET, EXHAUST PIPE[04.1997 - 08.2000] 4AGE..AE111 フロント |
17451-52060 |
from US $4.72 |
||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[04.1997 - 08.2000] 4AGE..AE111 リヤ |
90917-06054 |
from US $4 |
||
|
17452A
|
17452A
17452-16140 Clamp, Exhaust Pipe[04.1997 - 08.2000] 4AGE..AE111 |
17452-16140 |
US $18.78 |
||
|
17504
|
17504
17504-16030 Bracket Sub-Assy, Catalytic Converter[04.1997 - 08.2000] 4AGE..AE111 フロント |
17504-16030 |
US $23.30 |
||
|
17504
|
17504
17504-16040 Bracket Sub-Assy, Catalytic Converter[04.1997 - 04.1998] 4AGE..AE111 リヤ |
17504-16040 |
US $20.53 |
||
|
17506A
|
17506A
17506-16120 Bracket Sub-Assy, Exhaust Pipe No.1 Support[04.1997 - 05.1997] 4AGE,2C..AE111,CE110 |
17506-16120 |
from US $26.73 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[04.1997 - 08.2000] 4A#,5AFE,2C,3CE,4EFE..AE11#,CE11#,EE111 |
17562-16240 |
from US $17.67 |
||
|
17570
|
17570
17570-16020 Bracket Assy, Exhaust Pipe Support[04.1997 - 08.2000] 4A#,3CE..AE111,114,CE113,116 |
17570-16020 |
from US $17.10 |
||
|
17578A
|
17578A
17578-16030
Clamp, Muffler
[04.1997 - 11.1998] 4A#..AE111,114 |
17578-16030 |
— | ||
| replacement | |||||
|
17578A
|
17578A
17578-16050 Clamp, Muffler[04.1997 - 11.1998] 4A#..AE111,114 |
17578-16050 |
US $64.01 |
||
|
17578A
|
17578A
17578-16050 Clamp, Muffler[11.1998 - 08.2000] 4A#,3CE..AE111,114,CE116 |
17578-16050 |
US $64.01 |
||
|
17585
|
17585
17585-16060 Hanger, Exhaust Pipe[04.1997 - 05.1997] 4AGE,5AFE,2C,4EFE..AE110,111,CE110,EE111 |
17585-16060 |
US $9.03 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[04.1997 - 08.2000] 4A#,5AFE,2C,3CE,4EFE..AE11#,CE11#,EE111 |
17588-16020 |
US $7.71 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[04.1997 - 08.2000] 4A#,5AFE,2C,3CE,4EFE..AE11#,CE11#,EE111 |
17591-16020 |
from US $0.78 |
||
|
17596A
|
17596A
17596-16150 Protector, Exhaust Pipe, Lower No.4[04.1997 - 04.1998] 4AGE..AE111 |
17596-16150 |
US $27.37 |
||
|
18491
|
18491
18491-16010
Flange, Thermosenser Inlet
[04.1997 - 11.1997] 4AGE..AE111 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
18491-16010 |
— | ||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.61 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.74 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $3.05 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $3.05 |
||
|
9046112353
|
9046112353
90461-12353 Clamp, Exhaust Pipe |
90461-12353 |
from US $10.93 |
||
|
9163160618
|
9163160618
91631-60618 BOLT WWASHER |
91631-60618 |
US $1.46 |
||
| replacement | |||||
|
9163160618
|
9163160618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
