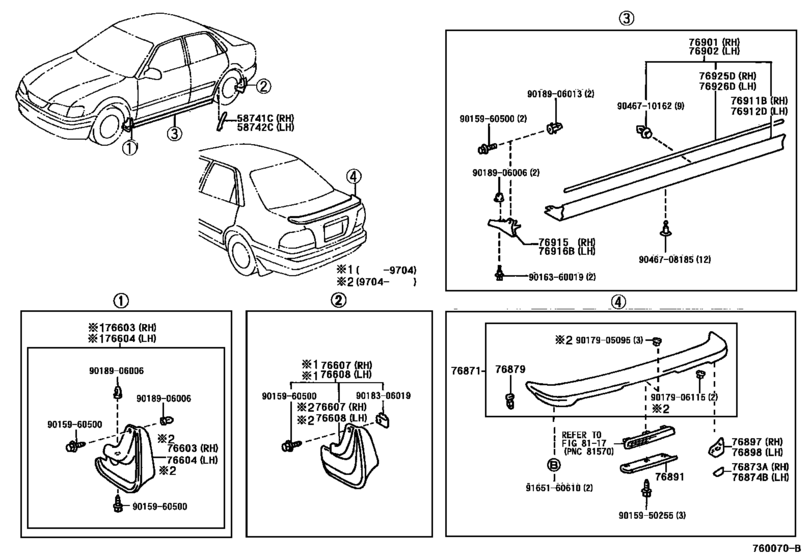

Mudguard & Spoiler ([05.1995 - ] (9505- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741C
|
58741C
58741-12130 Protector, Quarter Panel, Rh[04.1997 - 08.2000] AE111,CE113,116,EE111..4FC,5F,6F; EE111..3FC,4F;AE110,114,CE110,114 ｶﾝﾚｲﾁ ｼﾖｳ |
58741-12130 |
US $11.07 |
||
|
58742C
|
58742C
58742-12120 Protector, Quarter Panel, Lh[04.1997 - 08.2000] AE111,CE113,116,EE111..4FC,5F,6F; EE111..3FC,4F;AE110,114,CE110,114 ｶﾝﾚｲﾁ ｼﾖｳ |
58742-12120 |
US $11.07 |
||
|
76607
|
76607
76625-12470-A0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN SUPER WHITE 2,040 |
76625-12470-A0 |
US $82.99 |
||
|
76607
|
76607
76625-12470-B1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN SILVER ME,199 |
76625-12470-B1 |
US $82.99 |
||
|
76607
|
76607
76625-12470-B2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN WARM GRAY PEARL ME.,1A5 |
76625-12470-B2 |
US $82.99 |
||
|
76607
|
76607
76625-12470-B3 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN DK.GRAY ME.,1B4 |
76625-12470-B3 |
US $82.99 |
||
|
76607
|
76607
76625-12470-B5 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1998 - 08.2000] AE11#,CE11#..GT,SEVIN CRYSTAL SILVER PEARL,1C1 |
76625-12470-B5 |
US $82.99 |
||
|
76607
|
76607
76625-12470-D0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1997 - 04.1998] AE11#,CE11#..GT,SEVIN RED MM,3K4 |
76625-12470-D0 |
US $82.99 |
||
|
76607
|
76607
76625-12470-G0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN DK.GREEN M.M.,6P2 |
76625-12470-G0 |
US $82.99 |
||
|
76607
|
76607
76625-12470-J0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN DK.BLUE M.M.,8L2 |
76625-12470-J0 |
US $82.99 |
||
|
76608
|
76608
76626-12470-A0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN SUPER WHITE 2,040 |
76626-12470-A0 |
US $82.99 |
||
|
76608
|
76608
76626-12470-B1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN SILVER ME,199 |
76626-12470-B1 |
US $82.99 |
||
|
76608
|
76608
76626-12470-B2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN WARM GRAY PEARL ME.,1A5 |
76626-12470-B2 |
US $82.99 |
||
|
76608
|
76608
76626-12470-B3 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN DK.GRAY ME.,1B4 |
76626-12470-B3 |
US $82.99 |
||
|
76608
|
76608
76626-12470-B5 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1998 - 08.2000] AE11#,CE11#..GT,SEVIN CRYSTAL SILVER PEARL,1C1 |
76626-12470-B5 |
US $82.99 |
||
|
76608
|
76608
76626-12470-D0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1997 - 04.1998] AE11#,CE11#..GT,SEVIN RED MM,3K4 |
76626-12470-D0 |
US $82.99 |
||
|
76608
|
76608
76626-12470-G0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN DK.GREEN M.M.,6P2 |
76626-12470-G0 |
US $82.99 |
||
|
76608
|
76608
76626-12470-J0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN DK.BLUE M.M.,8L2 |
76626-12470-J0 |
US $82.99 |
||
|
76871
|
76871
76871-12907 Spoiler, Rear[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
76871-12907 |
US $506.69 |
||
|
76873A
|
76873A
76783-12050 Protector, Rear Spoiler, Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
76783-12050 |
US $7.28 |
||
|
76874B
|
76874B
76783-12050 Protector, Rear Spoiler, Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
76783-12050 |
US $7.28 |
||
|
76879
|
76879
76879-12040 Clip, Rear Spoiler, No.1[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
76879-12040 |
US $2.33 |
||
|
76891
|
76891
76891-12110 Spoiler, Rear No.1[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
76891-12110 |
US $72.80 |
||
|
76897
|
76897
76897-12110 Protector, Rear Spoiler, Side Rh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
76897-12110 |
US $8.30 |
||
|
76898
|
76898
76898-12110 Protector, Rear Spoiler, Side Lh[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
76898-12110 |
US $8.30 |
||
|
76901
|
76901
76901-12060-A2 Mudguard Sub-Assy, Side, Rh[04.1997 - 08.2000] AE111 SUPER WHITE 2,040 |
76901-12060-A2 |
US $457.18 |
||
|
76901
|
76901
76901-12060-B4 Mudguard Sub-Assy, Side, Rh[04.1997 - 08.2000] AE111 WARM GRAY PEARL M.,1A5 |
76901-12060-B4 |
US $457.18 |
||
|
76901
|
76901
76901-12060-B5 Mudguard Sub-Assy, Side, Rh[04.1997 - 08.2000] AE111 DARK GRAY ME.,1B4 |
76901-12060-B5 |
US $457.18 |
||
|
76901
|
76901
76901-12060-B6 Mudguard Sub-Assy, Side, Rh[04.1997 - 08.2000] AE111 SILVER ME.,199 |
76901-12060-B6 |
US $457.18 |
||
|
76901
|
76901
76901-12060-B8 Mudguard Sub-Assy, Side, Rh[04.1998 - 08.2000] AE111 CRYSTAL SILVER PEARL,1C1 |
76901-12060-B8 |
US $457.18 |
||
|
76901
|
76901
76901-12060-D1 Mudguard Sub-Assy, Side, Rh[04.1997 - 04.1998] AE111 RED MICA ME.,3K4 |
76901-12060-D1 |
US $457.18 |
||
|
76901
|
76901
76901-12060-G1 Mudguard Sub-Assy, Side, Rh[04.1997 - 08.2000] AE111 GREEN MICA M.,6P2 |
76901-12060-G1 |
US $457.18 |
||
|
76901
|
76901
76901-12060-J1 Mudguard Sub-Assy, Side, Rh[04.1997 - 08.2000] AE111 DARK BLUE MICA M.,8L2 |
76901-12060-J1 |
US $457.18 |
||
|
76902
|
76902
76902-12060-A2 Mudguard Sub-Assy, Side, Lh[04.1997 - 08.2000] AE111 SUPER WHITE 2,040 |
76902-12060-A2 |
US $457.18 |
||
|
76902
|
76902
76902-12060-B4 Mudguard Sub-Assy, Side, Lh[04.1997 - 08.2000] AE111 WARM GRAY PEARL M.,1A5 |
76902-12060-B4 |
US $457.18 |
||
|
76902
|
76902
76902-12060-B5 Mudguard Sub-Assy, Side, Lh[04.1997 - 08.2000] AE111 DARK GRAY ME.,1B4 |
76902-12060-B5 |
US $457.18 |
||
|
76902
|
76902
76902-12060-B6 Mudguard Sub-Assy, Side, Lh[04.1997 - 08.2000] AE111 SILVER ME.,199 |
76902-12060-B6 |
US $457.18 |
||
|
76902
|
76902
76902-12060-B8 Mudguard Sub-Assy, Side, Lh[04.1998 - 08.2000] AE111 CRYSTAL SILVER PEARL,1C1 |
76902-12060-B8 |
US $457.18 |
||
|
76902
|
76902
76902-12060-D1 Mudguard Sub-Assy, Side, Lh[04.1997 - 04.1998] AE111 RED MICA ME.,3K4 |
76902-12060-D1 |
US $457.18 |
||
|
76902
|
76902
76902-12060-G1 Mudguard Sub-Assy, Side, Lh[04.1997 - 08.2000] AE111 GREEN MICA M.,6P2 |
76902-12060-G1 |
US $457.18 |
||
|
76902
|
76902
76902-12060-J1 Mudguard Sub-Assy, Side, Lh[04.1997 - 08.2000] AE111 DARK BLUE MICA M.,8L2 |
76902-12060-J1 |
US $457.18 |
||
|
76911B
|
76911B
76911-12901 Mudguard, Side, Rh[09.1998 - 08.2000] AE111 |
76911-12901 |
US $275.18 |
||
|
76912D
|
76912D
76912-12901 Mudguard, Side, Lh[09.1998 - 08.2000] AE111 |
76912-12901 |
US $275.18 |
||
|
76915
|
76915
76915-12090
Mudguard, Rear Door, Rh
[04.1997 - 08.2000] AE111 |
76915-12090 |
— | ||
|
76916B
|
76916B
76916-12090
Mudguard, Rear Door, Lh
[04.1997 - 08.2000] AE111 |
76916-12090 |
— | ||
|
76925D
|
76925D
76925-12050-B0 Protector, Side Mudguard, Rh[04.1997 - 04.1998] AE111 GRAY,040 ,1A5 ,199 |
76925-12050-B0 |
US $21.55 |
||
|
76925D
|
76925D
76925-12050-C0 Protector, Side Mudguard, Rh[04.1997 - 04.1998] AE111 BLACK,1B4 ,3K4 ,6P2 ,8L2 |
76925-12050-C0 |
US $21.55 |
||
|
76926D
|
76926D
76925-12050-B0 Protector, Side Mudguard, Rh[04.1997 - 04.1998] AE111 GRAY,040 ,1A5 ,199 |
76925-12050-B0 |
US $21.55 |
||
|
76926D
|
76926D
76925-12050-C0 Protector, Side Mudguard, Rh[04.1997 - 04.1998] AE111 BLACK,1B4 ,3K4 ,6P2 ,8L2 |
76925-12050-C0 |
US $21.55 |
||
|
9015950255
|
9015950255
90159-50255 SCREW WWASHER |
90159-50255 |
US $2.15 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.70 |
||
|
9016360019
|
9016360019
90163-60019 New Genuine Part |
90163-60019 |
US $1.97 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.74 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9046708185
|
9046708185
90467-08185 Reinforcement, Front Spring Support, No.3 |
90467-08185 |
from US $0.88 |
||
|
9046710162
|
9046710162
90467-10162 Clip, Front Wheel Opening Extensoion |
90467-10162 |
from US $0.88 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
