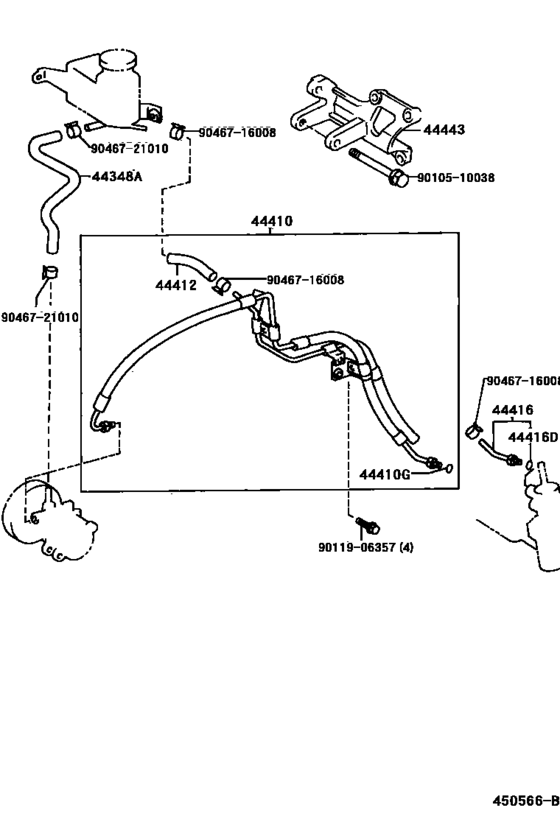

Power Steering Tube ([04.1997 - ] (9704- )AE111) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-12060 Hose, Oil Reservoir To Pump, No.1[04.1997 - 08.2000] AE111 |
44348-12060 |
US $38.62 |
||
|
44410
|
44410
44040-12150 Tube Assy, Pressure Feed[04.1997 - 08.2000] AE111 |
44040-12150 |
US $357.76 |
||
|
44410G
|
44410G
90301-07009 Ring, O(For Pressure Feed Tube)[04.1997 - 08.2000] AE11# |
90301-07009 |
from US $4.35 |
||
|
44412
|
44412
44412-12200 Hose, Return[04.1997 - 08.2000] AE111,CE11#,EE111 |
44412-12200 |
US $13.98 |
||
|
44416
|
44416
44416-12220 Tube, Return(For Steering Gear Outlet)[04.1997 - 08.2000] AE111 |
44416-12220 |
US $14.56 |
||
|
44416D
|
44416D
90301-07009 Ring, O(For Pressure Feed Tube)[04.1997 - 08.2000] AE11# |
90301-07009 |
from US $4.35 |
||
|
44443
|
44443
44443-12090 Bracket, Pump[04.1997 - 08.2000] AE111 |
44443-12090 |
US $52.77 |
||
|
9010510038
|
9010510038
90105-10038 Bolt(For Alternator) |
90105-10038 |
from US $2.03 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
