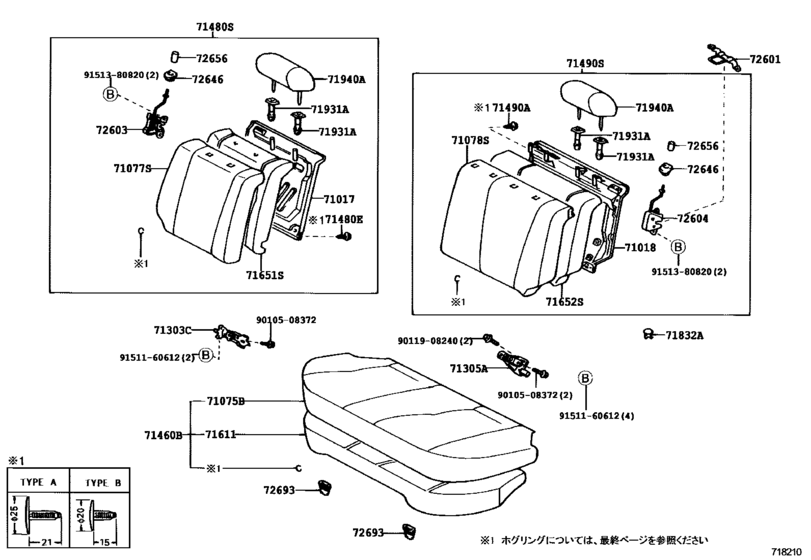

Rear Seat & Seat Track ([04.1997 - ] (9704- )AE111) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017
|
71017
71017-12570 Frame Sub-Assy, Rear Seat Back, Rh[04.1997 - 08.2000] AE111 |
71017-12570 |
US $170.35 |
||
|
71018
|
71018
71018-12240 Frame Sub-Assy, Rear Seat Back, Lh[04.1997 - 08.2000] AE111 |
71018-12240 |
US $232.96 |
||
|
71075B
|
71075B
71065-1E590-B0 Cover, Rear Seat Cushion (For Bench Type)[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
71065-1E590-B0 |
US $548.91 |
||
|
71077S
|
71077S
71077-1L630-B0 Cover, Rear Seat Back, Rh (For Separate Type)[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
71077-1L630-B0 |
US $356.72 |
||
|
71078S
|
71078S
71078-1E520-B0 Cover, Rear Seat Back, Lh(For Separate Type)[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
71078-1E520-B0 |
US $454.27 |
||
|
71303C
|
71303C
71303-12130 Hinge Sub-Assy, Rear Seat Back, Rh[04.1997 - 08.2000] AE111 |
71303-12130 |
US $23.44 |
||
|
71305A
|
71305A
71305-12160 Hinge Sub-Assy, Rear Seat Back, Center[04.1997 - 08.2000] AE111 |
71305-12160 |
US $20.97 |
||
|
71460B
|
71460B
71560-1E620-B0 Cushion Assy, Rear Seat (For Bench Type)[04.1997 - 08.2000] AE111 ***,SHADOW GRAY,TRIM1# |
71560-1E620-B0 |
US $984.26 |
||
|
71480E
|
71480E
90467-06037-C0 Clip(For Front Floor Carpet)[04.1997 - 08.2000] AE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM1# |
90467-06037-C0 |
US $1.89 |
||
| replacement | |||||
|
71480E
|
71480E
90467-06037-P0
Clip, Rear Seat Back, Rh
[04.1997 - 08.2000] AE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM1# |
90467-06037-P0 |
— | ||
|
71480E
|
71480E
90467-06037-P0
Clip, Rear Seat Back, Rh
[04.1997 - 08.2000] AE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM12 |
90467-06037-P0 |
— | ||
|
71480E
|
71480E
90467-07049-C0 Clip[04.1997 - 08.2000] AE111 BLACK,TRIM1# |
90467-07049-C0 |
US $1.79 |
||
|
71480S
|
71480S
71480-1L620-B0 Back Assy, Rear Seat, Rh (For Separate Type)[04.1997 - 08.2000] AE111 ***,SHADOW GRAY,TRIM1# |
71480-1L620-B0 |
US $888.16 |
||
|
71490A
|
71490A
90467-06037-C0 Clip(For Front Floor Carpet)[04.1997 - 08.2000] AE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM1# |
90467-06037-C0 |
US $1.89 |
||
| replacement | |||||
|
71490A
|
71490A
90467-06037-P0
Clip, Rear Seat Back, Rh
[04.1997 - 08.2000] AE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM1# |
90467-06037-P0 |
— | ||
|
71490A
|
71490A
90467-06037-P0
Clip, Rear Seat Back, Rh
[04.1997 - 08.2000] AE111 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM12 |
90467-06037-P0 |
— | ||
|
71490A
|
71490A
90467-07042-C0 Clip[08.1998 - 08.2000] AE111 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM12 |
90467-07042-C0 |
US $1.25 |
||
| replacement | |||||
|
71490A
|
71490A
90467-06175 Clip(For Luggage Compartment Door)[08.1998 - 08.2000] AE111 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM12 |
90467-06175 |
US $3.94 |
||
|
71490A
|
71490A
90467-07049-C0 Clip[04.1997 - 08.2000] AE111 BLACK,TRIM1# |
90467-07049-C0 |
US $1.79 |
||
|
71490S
|
71490S
71490-1E620-B0 Back Assy, Rear Seat, Lh (For Separate Type)[04.1997 - 08.2000] AE111 ***,SHADOW GRAY,TRIM1# |
71490-1E620-B0 |
US $1,061.42 |
||
|
71611
|
71611
71503-12110 Pad, Rear Seat Cushion[04.1997 - 08.2000] AE111 |
71503-12110 |
US $423.70 |
||
|
71651S
|
71651S
71651-12770 Pad, Rear Seat Back, Rh(For Separate Type)[04.1997 - 08.2000] AE111 |
71651-12770 |
US $164.53 |
||
|
71652S
|
71652S
71652-12610 Pad, Rear Seat Back, Lh(For Separate Type)[04.1997 - 08.2000] AE111 |
71652-12610 |
US $214.03 |
||
|
71832A
|
71832A
90467-09156-B0 Clip, Rear Floor Carpet Set[04.1997 - 10.1997] AE111 SHADOW GRAY,TRIM1# |
90467-09156-B0 |
US $1.10 |
||
|
71832A
|
71832A
90467-09156-C0 Clip(For Deck Boad)[04.1997 - 08.2000] AE111 BLACK,TRIM1# |
90467-09156-C0 |
US $1.10 |
||
|
71931A
|
71931A
71930-44010-B1 Support, Front Seat Headrest[04.1997 - 08.2000] AE111 ロック付,SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..SEVIN,XEVIN ロック付,SHADOW GRAY,TRIM11 |
71930-44010-B1 |
US $16.60 |
||
| replacement | |||||
|
71931A
|
71931A
71930-44010-C0 Support, Front Seat Headrest[04.1997 - 08.2000] AE111 ロック付,SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..SEVIN,XEVIN ロック付,SHADOW GRAY,TRIM11 |
71930-44010-C0 |
US $16.60 |
||
|
71931A
|
71931A
71931-32020-B0 Support, Front Seat Headrest[04.1997 - 08.2000] AE111 ロック無,SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..SEVIN,XEVIN ロック無,SHADOW GRAY,TRIM11 |
71931-32020-B0 |
US $12.38 |
||
| replacement | |||||
|
71931A
|
71931A
71931-32020-C0 Support, Front Seat Headrest[04.1997 - 08.2000] AE111 ロック無,SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..SEVIN,XEVIN ロック無,SHADOW GRAY,TRIM11 |
71931-32020-C0 |
US $12.23 |
||
|
71940A
|
71940A
71940-12350-C0 Headrest Assy, Rear Seat[04.1997 - 08.2000] AE111 BLACK,TRIM1# |
71940-12350-C0 |
US $371.28 |
||
|
72601
|
72601
72601-12160 Striker Sub-Assy, Rear Seat Lock[04.1997 - 08.2000] AE111 |
72601-12160 |
US $12.38 |
||
|
72603
|
72603
72630-12280 Lock Sub-Assy, Rear Seat Back, Rh[04.1997 - 08.2000] AE111 |
72630-12280 |
US $38.44 |
||
|
72604
|
72604
72640-12250 Lock Sub-Assy, Rear Seat Back, Lh[04.1997 - 08.2000] AE111 |
72640-12250 |
US $38.44 |
||
|
72646
|
72646
72646-33020-B2 Grommet, Rear Seat Back Stop Button[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
72646-33020-B2 |
US $18.78 |
||
| replacement | |||||
|
72646
|
72646
72646-33020-C0 Grommet, Rear Seat Back Stop Button[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
72646-33020-C0 |
US $11.65 |
||
|
72656
|
72656
72661-20020-B2 Button, Rear Seat Back Stop Release[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
72661-20020-B2 |
US $8.15 |
||
| replacement | |||||
|
72656
|
72656
72661-20020-C0 Button, Rear Seat Back Stop Release[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
72661-20020-C0 |
US $8.01 |
||
|
72693
|
72693
72693-12060 Hook, Rear Seat Cushion Lock[04.1997 - 08.2000] AE11#,CE11#,EE111 |
72693-12060 |
US $5.73 |
||
|
9010508372
|
9010508372
90105-08372 BOLT WASHER BASED |
90105-08372 |
US $1.43 |
||
|
9011908240
|
9011908240
90119-08240 New Genuine Part |
90119-08240 |
US $3.06 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9151380820
|
9151380820
91513-80820
New Genuine Part
|
91513-80820 |
— | ||
| replacement | |||||
|
9151380820
|
9151380820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.80 |
||
