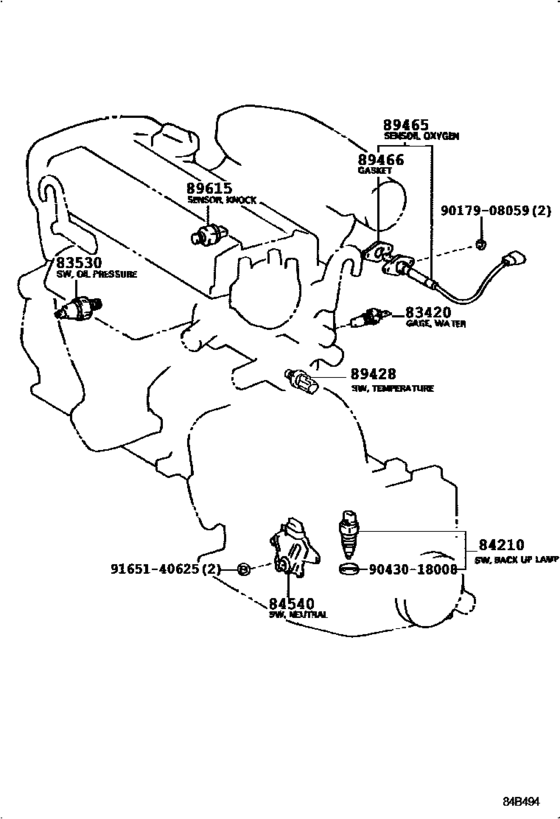

Switch & Relay & Computer ([04.1997 - ] ENGINE & TRANSMISSION (9704- )AE111) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[04.1997 - 08.2000] AE11# |
83420-20040 |
from US $35.65 |
||
|
83530
|
83530
83530-28040 Switch Assy, Oil Pressure (For Engine)[03.1998 - 08.2000] AE111 ＤＥＮＳＯ |
83530-28040 |
US $42.52 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[04.1997 - 03.1998] AE111 |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[04.1997 - 03.1998] AE111 |
83530-60040 |
from US $29.27 |
||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[03.1998 - 08.2000] AE111 ＹＡＺＡＫＩ |
83530-60040 |
from US $29.27 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[04.1997 - 08.2000] AE11#,CE11#,EE111..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[04.1997 - 08.2000] AE11#,CE11#,EE111..MTM |
84210-52050 |
from US $22.85 |
||
|
89428
|
89428
89428-12160 Switch, Temperature Detect, No.2[04.1997 - 08.2000] AE11#,EE111 |
89428-12160 |
from US $82.66 |
||
|
89465
|
89465
89465-19685
Sensor, Oxygen
[04.1997 - 08.2000] AE111 |
89465-19685 |
— | ||
|
89466
|
89466
89466-12020 Gasket, Oxygen Sensor[04.1997 - 08.2000] AE111 |
89466-12020 |
US $17.74 |
||
|
89615
|
89615
89615-12030
Sensor, Knock Control
[04.1997 - 09.1998] AE11# ＴＯＹＯＴＡ |
89615-12030 |
— | ||
| replacement | |||||
|
89615
|
89615
89615-52010 Sensor, Knock Control[04.1997 - 09.1998] AE11# ＴＯＹＯＴＡ |
89615-52010 |
from US $120.08 |
||
|
89615
|
89615
89615-22030 Sensor, Knock Control[04.1997 - 09.1999] AE11#,EE111 ＭＡＴＳＵＳＨＩＴＡ |
89615-22030 |
from US $133.34 |
||
|
89615
|
89615
89615-22050 Sensor, Knock Control[09.1998 - 08.2000] AE11# ＴＯＹＯＴＡ |
89615-22050 |
US $208.21 |
||
| replacement | |||||
|
89615
|
89615
89615-52010 Sensor, Knock Control[09.1998 - 08.2000] AE11# ＴＯＹＯＴＡ |
89615-52010 |
from US $120.08 |
||
|
89615
|
89615
89615-52010 Sensor, Knock Control[09.1999 - 08.2000] AE11# ＭＡＴＳＵＳＨＩＴＡ; EE111 |
89615-52010 |
from US $120.08 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
