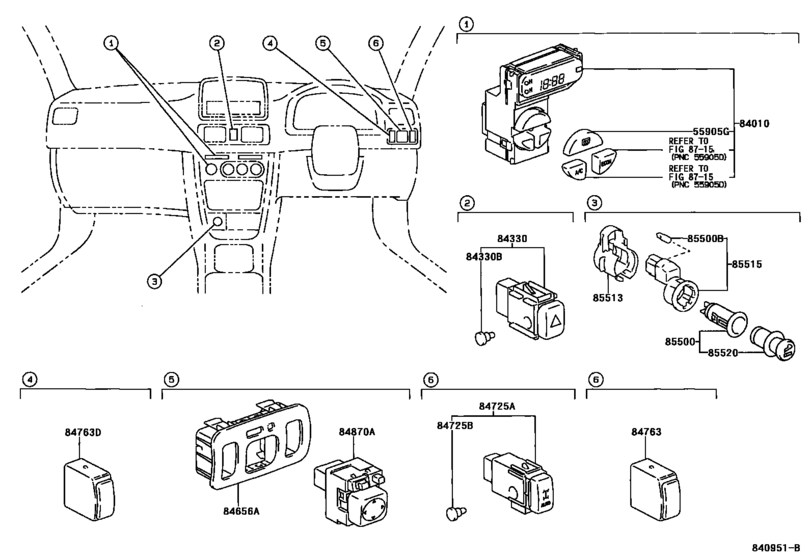

Switch & Relay & Computer ([04.1997 - 04.1998] INSTRUMENT PANEL SWITCH (9704-9804)) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-12400 Switch Assy, Hazard Warning Signal[04.1997 - 04.1998] AE11#,CE11#,EE111 |
84332-12400 |
US $57.51 |
||
|
84330
|
84330
84332-12410 Switch Assy, Hazard Warning Signal[04.1998 - 08.2000] AE11#,CE11#,EE111 |
84332-12410 |
US $57.51 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[04.1997 - 08.2000] AE11#,CE11#,EE111 １４Ｖ ０．９１Ｗ |
84999-10860 |
from US $4.84 |
||
|
84656A
|
84656A
84656-12050-B0 Bezel, Switch[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
84656-12050-B0 |
US $20.68 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12050-B2 Bezel, Switch[04.1997 - 08.2000] AE111 SHADOW GRAY,TRIM1# |
84656-12050-B2 |
US $20.09 |
||
|
84656A
|
84656A
84656-12060-B0 Bezel, Switch[04.1997 - 08.2000] AE111 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
84656-12060-B0 |
US $24.75 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12060-B4 Bezel, SwitchSWITCH [04.1997 - 08.2000] AE111 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),SHADOW GRAY,TRIM1# |
84656-12060-B4 |
US $24.90 |
||
|
84763
|
84763
84763-12110-B0 Plate, Switch[04.1997 - 04.1998] AE11#,CE11#,EE111..GT,LX SHADOW GRAY,TRIM1#; AE114..5F..(SEVIN,XEVIN);AE110,CE11#,EE111..SEVIN,XEVIN SHADOW GRAY,TRIM11 |
84763-12110-B0 |
US $10.19 |
||
| replacement | |||||
|
84763
|
84763
84763-12110-B4 Plate, Switch[04.1997 - 04.1998] AE11#,CE11#,EE111..GT,LX SHADOW GRAY,TRIM1#; AE114..5F..(SEVIN,XEVIN);AE110,CE11#,EE111..SEVIN,XEVIN SHADOW GRAY,TRIM11 |
84763-12110-B4 |
US $9.96 |
||
|
84763D
|
84763D
84763-12110-B0 Plate, Switch[04.1997 - 04.1998] AE110,114,CE11#,EE111..SEVIN,XEVIN SHADOW GRAY,TRIM11; AE11#,CE11#,EE111..GT,LX SHADOW GRAY,TRIM1# |
84763-12110-B0 |
US $10.19 |
||
| replacement | |||||
|
84763D
|
84763D
84763-12110-B4 Plate, Switch[04.1997 - 04.1998] AE110,114,CE11#,EE111..SEVIN,XEVIN SHADOW GRAY,TRIM11; AE11#,CE11#,EE111..GT,LX SHADOW GRAY,TRIM1# |
84763-12110-B4 |
US $9.96 |
||
|
84870A
|
84870A
84870-12140 Switch Assy, Outer Mirror[04.1997 - 08.2000] AE11#,CE11#..GT,SEVIN |
84870-12140 |
US $94.64 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[04.1997 - 08.2000] AE11#,CE11#,EE111 |
85500-12240 |
from US $27.42 |
||
|
85500B
|
85500B
90010-01015 Bulb, Cigarette Lighter[04.1997 - 08.2000] AE11#,CE11#,EE111 １４Ｖ １．４Ｗ，キャップ付き |
90010-01015 |
from US $2.40 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[04.1997 - 08.2000] AE11#,CE11#,EE111 |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-12100
Stay, Cigarette Lighter Bezel
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
85515-12100 |
— | ||
| replacements | |||||
|
85515
|
85515
55477-33010 Bezel, Cigar Lighter Hole[04.1997 - 08.2000] AE11#,CE11#,EE111 |
55477-33010 |
US $8.24 |
||
|
85515
|
85515
85515-12130 Stay, Cigarette Lighter Bezel[04.1997 - 08.2000] AE11#,CE11#,EE111 |
85515-12130 |
US $11.53 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[04.1997 - 08.2000] AE11#,CE11#,EE111 |
85520-28010 |
from US $16.77 |
||
