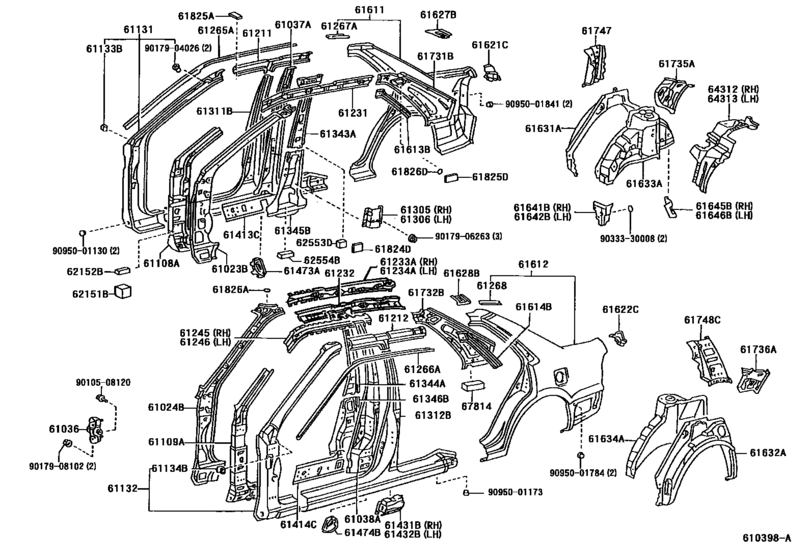

Side Member ([04.1997 - ] (9704- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61023B
|
61023B
61023-12230 Pillar Sub-Assy, Front Body, Inner Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61023-12230 |
US $318.86 |
||
|
61024B
|
61024B
61024-12230 Pillar Sub-Assy, Front Body, Inner Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61024-12230 |
US $318.86 |
||
|
61036
|
61036
61036-12070 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61036-12070 |
US $22.57 |
||
|
61037A
|
61037A
61037-12901 Reinforcement Sub-Assy, Center Body Pillar, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61037-12901 |
US $254.80 |
||
|
61038A
|
61038A
61038-12901 Reinforcement Sub-Assy, Center Body Pillar, Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61038-12901 |
US $254.80 |
||
|
61108A
|
61108A
61108-12180 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61108-12180 |
US $158.70 |
||
|
61109A
|
61109A
61109-12170 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61109-12170 |
US $158.70 |
||
|
61131
|
61131
61131-12470 Pillar, Front Body, Upper Outer Rh[04.1997 - 09.1999] AE111 |
61131-12470 |
US $289.74 |
||
| replacements | |||||
|
61131
|
61131
61131-12560 Pillar, Front Body, Upper Outer Rh[04.1997 - 09.1999] AE111 |
61131-12560 |
US $285.38 |
||
|
61131
|
61131
90950-01944 PLUG HOLE[04.1997 - 09.1999] AE111 |
90950-01944 |
from US $1.79 |
||
|
61131
|
61131
61131-12560 Pillar, Front Body, Upper Outer Rh[09.1999 - 08.2000] AE111 |
61131-12560 |
US $285.38 |
||
|
61132
|
61132
61132-12480 Pillar, Front Body, Upper Outer Lh[04.1997 - 09.1999] AE111 |
61132-12480 |
US $289.74 |
||
| replacements | |||||
|
61132
|
61132
61132-12570 Pillar, Front Body, Upper Outer Lh[04.1997 - 09.1999] AE111 |
61132-12570 |
US $285.38 |
||
|
61132
|
61132
90950-01944 PLUG HOLE[04.1997 - 09.1999] AE111 |
90950-01944 |
from US $1.79 |
||
|
61132
|
61132
61132-12570 Pillar, Front Body, Upper Outer Lh[09.1999 - 08.2000] AE111 |
61132-12570 |
US $285.38 |
||
|
61133B
|
61133B
61133-12190 Bracket, Front Body Pillar ,outer Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61133-12190 |
US $5.53 |
||
|
61134B
|
61134B
61133-12190 Bracket, Front Body Pillar ,outer Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61133-12190 |
US $5.53 |
||
|
61211
|
61211
61211-12350 Rail, Roof Side, Outer Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61211-12350 |
US $90.27 |
||
|
61212
|
61212
61212-12350 Rail, Roof Side, Outer Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61212-12350 |
US $90.27 |
||
|
61231
|
61231
61231-1A040 Rail, Roof Side, Inner Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61231-1A040 |
US $78.62 |
||
|
61232
|
61232
61232-12810 Rail, Roof Side, Inner Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61232-12810 |
US $78.62 |
||
|
61233A
|
61233A
61233-12150 Rail, Roof Side, Inner No.2 Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61233-12150 |
US $85.90 |
||
|
61234A
|
61234A
61234-12110 Rail, Roof Side, Inner No.2 Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61234-12110 |
US $85.90 |
||
|
61245
|
61245
61245-12010 Reinforcement, Roof Side Rail, Outer Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61245-12010 |
US $85.90 |
||
|
61246
|
61246
61246-12010 Reinforcement, Roof Side Rail, Outer Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61246-12010 |
US $85.90 |
||
|
61265A
|
61265A
61265-12230 Channel, Roof Drip Side, Center Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61265-12230 |
US $34.65 |
||
|
61266A
|
61266A
61266-12230 Channel, Roof Drip Side, Center Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61266-12230 |
US $34.65 |
||
|
61267A
|
61267A
61267-12200 Channel, Roof Drip Side, Rear Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61267-12200 |
US $17.18 |
||
|
61268
|
61268
61268-12200 Channel, Roof Drip Side, Rear Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61268-12200 |
US $17.18 |
||
|
61305
|
61305
61305-12130 Reinforce Sub-Assy, Center Body Pillar, Lower Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61305-12130 |
US $30.58 |
||
|
61306
|
61306
61306-12130 Reinforce Sub-Assy, Center Body Pillar, Lower Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61306-12130 |
US $30.58 |
||
|
61311B
|
61311B
61311-12300 Pillar, Center Body, Outer Rh[04.1997 - 09.1999] AE111 |
61311-12300 |
US $493.58 |
||
| replacements | |||||
|
61311B
|
61311B
61311-12320 Pillar, Center Body, Outer Rh[04.1997 - 09.1999] AE111 |
61311-12320 |
US $496.50 |
||
|
61311B
|
61311B
90950-01944 PLUG HOLE[04.1997 - 09.1999] AE111 |
90950-01944 |
from US $1.79 |
||
|
61311B
|
61311B
61311-12320 Pillar, Center Body, Outer Rh[09.1999 - 08.2000] AE111 |
61311-12320 |
US $496.50 |
||
|
61312B
|
61312B
61312-12340 Pillar, Center Body, Outer Lh[04.1997 - 09.1999] AE111 |
61312-12340 |
US $493.58 |
||
| replacements | |||||
|
61312B
|
61312B
61312-12360 Pillar, Center Body, Outer Lh[04.1997 - 09.1999] AE111 |
61312-12360 |
US $496.50 |
||
|
61312B
|
61312B
90950-01944 PLUG HOLE[04.1997 - 09.1999] AE111 |
90950-01944 |
from US $1.79 |
||
|
61312B
|
61312B
61312-12360 Pillar, Center Body, Outer Lh[09.1999 - 08.2000] AE111 |
61312-12360 |
US $496.50 |
||
|
61343A
|
61343A
61343-12160 Pillar, Center Body, Inner Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61343-12160 |
US $154.34 |
||
|
61344A
|
61344A
61344-12160 Pillar, Center Body, Inner Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61344-12160 |
US $154.34 |
||
|
61345B
|
61345B
61345-12040 Pillar, Center Body, Inner Lower Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61345-12040 |
US $106.29 |
||
|
61346B
|
61346B
61346-12040 Pillar, Center Body, Inner Lower Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61346-12040 |
US $106.29 |
||
|
61413C
|
61413C
61413-12900 Reinforcement, Rocker Panel, No.2 Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61413-12900 |
US $158.70 |
||
|
61414C
|
61414C
61414-12900 Reinforcement, Rocker Panel, No.2 Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61414-12900 |
US $158.70 |
||
|
61431B
|
61431B
61431-12010 Reinforcement, Rocker Panel, No.6 Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61431-12010 |
US $36.69 |
||
|
61432B
|
61432B
61432-12010 Reinforcement, Rocker Panel, No.6 Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61432-12010 |
US $36.69 |
||
|
61473A
|
61473A
61473-12030 Plate, Pillar No.3, Lower Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61473-12030 |
US $10.63 |
||
|
61474B
|
61474B
61474-12030 Plate, Pillar No.4, Lower Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61474-12030 |
US $10.63 |
||
|
61611
|
61611
61601-1H901 Panel, Quarter, Rh[04.1997 - 08.2000] AE111 |
61601-1H901 |
US $579.49 |
||
|
61612
|
61612
61602-1E943 Panel, Quarter, Lh[04.1997 - 08.2000] AE111 |
61602-1E943 |
US $579.49 |
||
|
61613B
|
61613B
61613-12040 Panel, Quarter, Inner Front Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61613-12040 |
US $30.43 |
||
|
61614B
|
61614B
61614-12040 Panel, Quarter, Inner Front Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61614-12040 |
US $30.43 |
||
|
61621C
|
61621C
61621-12340 Trough, Luggage Compartment Opening, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61621-12340 |
US $30.28 |
||
|
61622C
|
61622C
61622-12340 Trough, Luggage Compartment Opening, Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61622-12340 |
US $30.28 |
||
|
61627B
|
61627B
61627-12150 Extension, Quarter Panel, Upper Rear Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61627-12150 |
US $7.28 |
||
|
61628B
|
61628B
61628-12160 Extension, Quarter Panel, Upper Rear Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61628-12160 |
US $7.28 |
||
|
61631A
|
61631A
61631-12300 Panel, Quarter Wheel House, Outer Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61631-12300 |
US $160.16 |
||
|
61632A
|
61632A
61632-12320 Panel, Quarter Wheel House, Outer Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61632-12320 |
US $160.16 |
||
|
61633A
|
61633A
61607-12922 Panel, Quarter Wheel House, Inner Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61607-12922 |
US $281.01 |
||
|
61634A
|
61634A
61608-12920 Panel, Quarter Wheel House, Inner Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61608-12920 |
US $281.01 |
||
|
61641B
|
61641B
61641-12070 Gusset, Quarter Wheel House, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61641-12070 |
US $11.79 |
||
|
61642B
|
61642B
61642-12070 Gusset, Quarter Wheel House, Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61642-12070 |
US $11.79 |
||
|
61645B
|
61645B
61645-12120 Gusset, Quarter Wheel House, Rear Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61645-12120 |
US $20.09 |
||
|
61646B
|
61646B
61646-12110 Gusset, Quarter Wheel House, Rear Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61646-12110 |
US $19.95 |
||
|
61731B
|
61731B
61731-12660 Panel, Roof Side, Inner Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61731-12660 |
US $165.98 |
||
|
61732B
|
61732B
61732-12580 Panel, Roof Side, Inner Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61732-12580 |
US $165.98 |
||
|
61735A
|
61735A
61735-12350 Panel, Roof Side, Inner Rear Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61735-12350 |
US $56.64 |
||
|
61736A
|
61736A
61736-12340 Panel, Roof Side, Inner Rear Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61736-12340 |
US $56.64 |
||
|
61747
|
61747
61747-12250 Brace, Roof Side Inner To Wheel House, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61747-12250 |
US $77.17 |
||
|
61748C
|
61748C
61748-12250 Brace, Roof Side Inner To Wheel House, Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61748-12250 |
US $77.17 |
||
|
61824D
|
61824D
61824-50020 Cover, Front Pillar Service Hole[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61824-50020 |
US $5.68 |
||
|
61825A
|
61825A
61815-32020 Cover, Roof Side, Inner Upper Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
61815-32020 |
US $10.19 |
||
|
61826A
|
61826A
61824-12040 Plate, Noise Control, No.1[04.1997 - 08.2000] AE11#,CE11#,EE111 厚さ＝０．８ |
61824-12040 |
US $1.89 |
||
|
61826A
|
61826A
61824-12050 Plate, Noise Control, No.1[04.1997 - 08.2000] AE11#,CE11#,EE111 厚さ＝０．３ |
61824-12050 |
US $5.82 |
||
|
61826D
|
61826D
61824-12040 Plate, Noise Control, No.1[04.1997 - 08.2000] AE11#,CE11#,EE111 厚さ＝０．８ |
61824-12040 |
US $1.89 |
||
|
61826D
|
61826D
61824-12050 Plate, Noise Control, No.1[04.1997 - 08.2000] AE11#,CE11#,EE111 厚さ＝０．３ |
61824-12050 |
US $5.82 |
||
|
62152B
|
62152B
62152-12050 Pad, Cowl Side Silencer, No.2[04.1997 - 08.2000] AE11#,CE11#,EE111 90 X 140 |
62152-12050 |
US $1.60 |
||
|
62152B
|
62152B
62554-12160 Pad, Cowl Side Silencer, No.2[04.1997 - 08.2000] AE11#,CE11#,EE111 70 X 150 |
62554-12160 |
US $1.60 |
||
|
62553D
|
62553D
62553-12120 Pad, Cowl Side Silencer[04.1997 - 08.2000] AE11#,CE11#,EE111 |
62553-12120 |
US $1.60 |
||
|
62554B
|
62554B
62554-12160 Pad, Cowl Side Silencer, No.2[04.1997 - 08.2000] AE11#,CE11#,EE111 |
62554-12160 |
US $1.60 |
||
|
64312
|
64312
64301-12250 Bracket, Package Tray, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64301-12250 |
US $122.30 |
||
|
64313
|
64313
64302-12250 Bracket, Package Tray, Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64302-12250 |
US $122.30 |
||
|
67814
|
67814
67814-12020 Pad, Quarter Panel Silencer, No.2[04.1997 - 08.2000] AE11#,CE11#,EE111 |
67814-12020 |
US $8.15 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9017904026
|
9017904026
90179-04026 New Genuine Part |
90179-04026 |
US $0.58 |
||
|
9017906263
|
9017906263
90179-06263 Nut (For Rear Wiper Arm Setting) |
90179-06263 |
US $1.89 |
||
| replacement | |||||
|
9017906263
|
9017906263
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9095001130
|
9095001130
90950-01130 Plug, Hole(For Rear Door Panel) |
90950-01130 |
US $5.24 |
||
| replacement | |||||
|
9095001130
|
9095001130
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9095001173
|
9095001173
90950-01173 New Genuine Part |
90950-01173 |
US $2.18 |
||
| replacement | |||||
|
9095001173
|
9095001173
90950-01684 PLUG HOLE |
90950-01684 |
from US $2.69 |
||
|
9095001784
|
9095001784
90950-01784 New Genuine Part |
90950-01784 |
US $3.40 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.97 |
||
