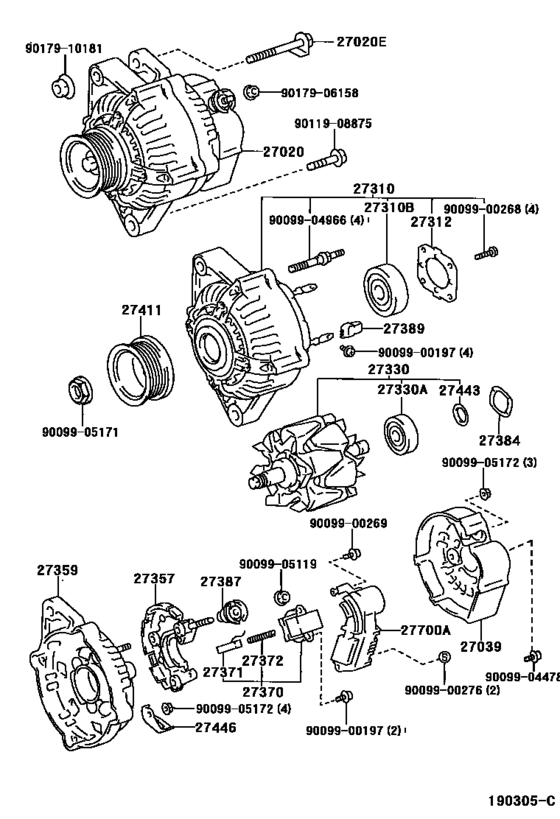

Alternator ([08.1995 - ] 12V 70A (9508- )4AFE,7AFE..5F) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- STOUR
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 5F
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-15130 Alternator Assy[08.1995 - 04.1997] 4AFE,7AFE..AE11#..5F １２Ｖ ７０Ａ |
27060-15130 |
US $1,572.48 |
||
| replacement | |||||
|
27020
|
27020
27060-15080 Alternator Assy[08.1995 - 04.1997] 4AFE,7AFE..AE11#..5F １２Ｖ ７０Ａ |
27060-15080 |
US $1,557.92 |
||
|
27020E
|
27020E
90105-10336 Bolt(For Alternator)[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
90105-10336 |
US $5.56 |
||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[01.1997 - 04.1997] 4A#,7AFE..AE11#..(BZT,STOUR,ZTOUR)..5F |
27039-16380 |
— | ||
|
27039
|
27039
27039-73020
Cover, Alternator Rear End
[08.1995 - 01.1997] 4A#,7AFE..AE11#..5F |
27039-73020 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[08.1995 - 01.1997] 4A#,7AFE..AE11#..5F |
27039-16380 |
— | ||
|
27310
|
27310
27310-15170
Frame Assy, Drive End, Alternator
[08.1995 - 04.1997] 4AFE,7AFE..AE11#..5F |
27310-15170 |
— | ||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
90099-10178 |
from US $17.65 |
||
|
27312
|
27312
27312-70200
Plate, Bearing Retainer, Alternator
[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
27312-70200 |
— | ||
|
27330
|
27330
27330-64570
Rotor Assy, Alternator
[01.1997 - 04.1997] 4AFE,7AFE..AE11#..(STOUR,ZTOUR)..5F |
27330-64570 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[08.1995 - 01.1997] 4AFE,7AFE..AE11#..5F |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-16380 Holder, Alternator, W/rectifier[01.1997 - 04.1997] 4A#,7AFE..AE11#..(BZT,STOUR,ZTOUR)..5F |
27357-16380 |
US $164.24 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[08.1995 - 01.1997] 4A#,7AFE..AE11#..5F |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-15171
Frame, Alternator Rectifier End
[01.1996 - 01.1997] 4AFE,7AFE..AE11#..5F |
27359-15171 |
— | ||
|
27359
|
27359
27359-16380
Frame, Alternator Rectifier End
[01.1997 - 04.1997] 4AFE,7AFE..AE11#..(STOUR,ZTOUR)..5F |
27359-16380 |
— | ||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[08.1995 - 04.1997] 4AFE,7AFE..AE11#..5F |
27370-35060 |
from US $17.08 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
27372-87501 |
— | ||
|
27384
|
27384
27384-16380
Washer
[01.1996 - 04.1997] 4AFE..AE114;7AFE..AE115..VTOUR..4FC;4A#,7AFE..AE111,115..(BZT,STOUR,ZTOUR)..5F; 7AFE..AE115..VTOUR..5F 12V 70A |
27384-16380 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
27387-70170 |
— | ||
|
27387
|
27387
27387-70171
Insulator, Terminal
[09.1997 - 07.2002] 4A#,7AFE..AE11#..MTM |
27387-70171 |
— | ||
|
27389
|
27389
27389-63020
Insulator, Terminal
[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
27389-63020 |
— | ||
|
27411
|
27411
27411-16180
Pulley, Alternator
[08.1995 - 04.1997] 4A#,7AFE..AE11#..5F |
27411-16180 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1995 - 04.1997] 4A#,7AFE..AE11# |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-15170
Clip, Alternator Cord
[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
27446-15170 |
— | ||
|
27700A
|
27700A
27700-74040 Regulator Assy, Generator[08.1995 - 04.1997] 4A#,7AFE..AE11# |
27700-74040 |
US $213.16 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009900269
|
9009900269
90099-00269
New Genuine Part
|
90099-00269 |
— | ||
|
9009900276
|
9009900276
90099-00276 New Genuine Part |
90099-00276 |
US $0.87 |
||
|
9009904478
|
9009904478
90099-04478
New Genuine Part
|
90099-04478 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9011908875
|
9011908875
90119-08875 Bolt(For Alternator) |
90119-08875 |
US $3.40 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017910181
|
9017910181
90179-10181 New Genuine Part |
90179-10181 |
US $2.87 |
||
