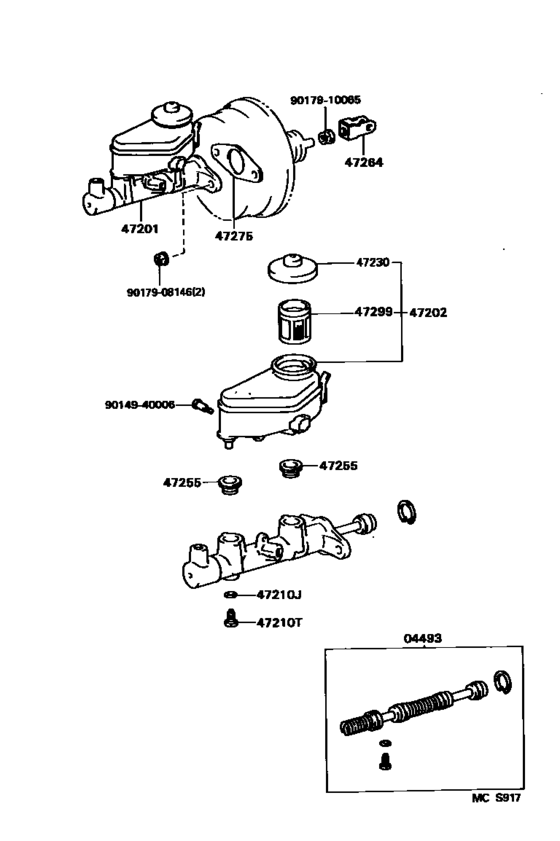

Brake Master Cylinder ([08.1995 - ] (9508- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ROSSO
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 04.1998
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-16080
Cylinder Kit, Brake Master
[04.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR |
04493-16080 |
— | ||
|
47201
|
47201
47201-1A050
Cylinder Sub-Assy, Brake Master
[04.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR |
47201-1A050 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-1A410
Cylinder Sub-Assy, Brake Master
[04.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR |
47201-1A410 |
— | ||
|
47202
|
47202
47220-32060 Reservoir Sub-Assy, Brake Master Cylinder[04.1997 - 07.2002] AE11# |
47220-32060 |
US $131.04 |
||
| replacement | |||||
|
47202
|
47202
47220-12180 Reservoir Sub-Assy, Brake Master Cylinder[04.1997 - 07.2002] AE11# |
47220-12180 |
US $131.04 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[04.1997 - 07.2002] AE11# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[04.1997 - 07.2002] AE11# |
90109-06077 |
from US $2.87 |
||
|
47230
|
47230
47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler[04.1997 - 07.2002] AE11# |
47230-12040 |
from US $9.32 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[04.1997 - 07.2002] AE11# |
47255-16010 |
from US $6.45 |
||
|
47264
|
47264
47264-32020 Clevis, Master Cylinder Push Rod[10.1999 - 07.2002] AE11# |
47264-32020 |
US $6.12 |
||
|
47264
|
47264
47264-33010
Clevis, Master Cylinder Push Rod
[04.1997 - 10.1999] AE111..ROSSO,STOUR,ZTOUR |
47264-33010 |
— | ||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[04.1997 - 07.2002] AE11# |
47275-12020 |
from US $0.98 |
||
|
47299
|
47299
47299-24010 Strainer, Brake Master Cylinder Reservoir[04.1997 - 07.2002] AE11# |
47299-24010 |
US $9.68 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
