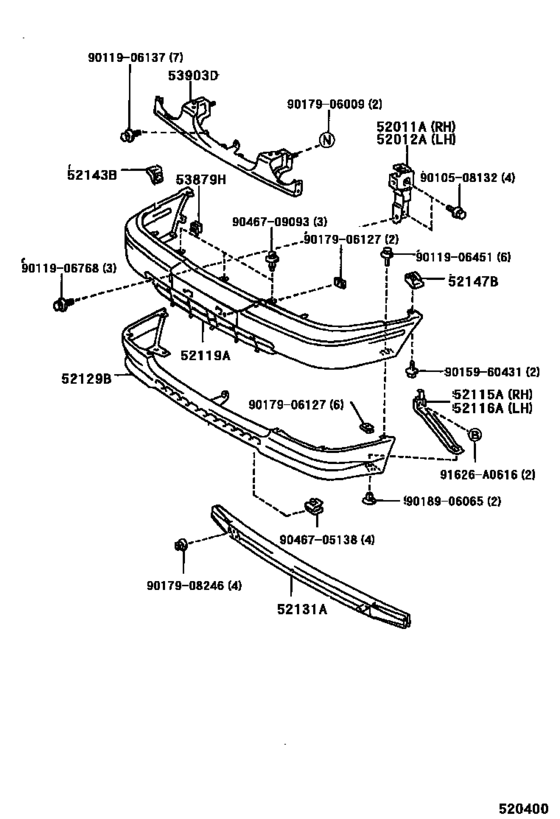

Front Bumper & Bumper Stay ([04.1998 - ] (9804- )ROSSO) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ROSSO
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 04.1998
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52011A
|
52011A
52141-12430 Arm Sub-Assy, Front Bumper, Rh[04.1998 - 07.2002] AE111,114..ROSSO |
52141-12430 |
US $15.87 |
||
|
52012A
|
52012A
52142-12360
Arm Sub-Assy, Front Bumper, Lh
[04.1998 - 07.2002] AE111,114..ROSSO |
52142-12360 |
— | ||
|
52115A
|
52115A
52115-12320 Support, Front Bumper Side, Rh[04.1997 - 07.2002] AE11# |
52115-12320 |
US $7.94 |
||
|
52116A
|
52116A
52116-12290 Support, Front Bumper Side, Lh[04.1997 - 07.2002] AE11# |
52116-12290 |
US $7.94 |
||
|
52119A
|
52119A
52119-1E020 Cover, Front Bumper[04.1998 - 07.2002] AE111,114..ROSSO |
52119-1E020 |
US $209.66 |
||
|
52129B
|
52129B
52129-12070 Cover, Front Bumper, Lower[04.1998 - 07.2002] AE111,114..ROSSO ﾄｿｳ ﾅｼ |
52129-12070 |
US $209.66 |
||
|
52129B
|
52129B
52129-12080-B0 Cover, Front Bumper, Lower[04.1998 - 07.2002] AE111,114..ROSSO SILVER ME,199 |
52129-12080-B0 |
US $313.04 |
||
| replacement | |||||
|
52129B
|
52129B
52129-12070 Cover, Front Bumper, Lower[04.1998 - 07.2002] AE111,114..ROSSO SILVER ME,199 |
52129-12070 |
US $209.66 |
||
|
52129B
|
52129B
52129-12080-D1 Cover, Front Bumper, Lower[04.1998 - 04.1999] AE111,114..ROSSO RED,3M7 |
52129-12080-D1 |
US $313.04 |
||
| replacement | |||||
|
52129B
|
52129B
52129-12070 Cover, Front Bumper, Lower[04.1998 - 04.1999] AE111,114..ROSSO RED,3M7 |
52129-12070 |
US $209.66 |
||
|
52129B
|
52129B
52129-12080-D2 Cover, Front Bumper, Lower[04.1999 - 07.2002] AE111,114..ROSSO SUPER RED II,3E5 |
52129-12080-D2 |
US $313.04 |
||
| replacement | |||||
|
52129B
|
52129B
52129-12070 Cover, Front Bumper, Lower[04.1999 - 07.2002] AE111,114..ROSSO SUPER RED II,3E5 |
52129-12070 |
US $209.66 |
||
|
52129B
|
52129B
52129-12080-J0 Cover, Front Bumper, Lower[04.1998 - 04.1999] AE111,114..ROSSO BLUE M.M.,8L5 |
52129-12080-J0 |
US $313.04 |
||
| replacement | |||||
|
52129B
|
52129B
52129-12070 Cover, Front Bumper, Lower[04.1998 - 04.1999] AE111,114..ROSSO BLUE M.M.,8L5 |
52129-12070 |
US $209.66 |
||
|
52131A
|
52131A
52131-12180 Reinforcement, Front Bumper[04.1997 - 07.2002] AE11# |
52131-12180 |
US $193.65 |
||
|
52143B
|
52143B
52143-12350 Bracket, Front Bumper Side[04.1998 - 07.2002] AE111,114..ROSSO |
52143-12350 |
US $5.10 |
||
|
52147B
|
52147B
52147-12190 Bracket, Front Bumper Mounting[04.1998 - 07.2002] AE111,114..ROSSO |
52147-12190 |
US $3.64 |
||
|
53879H
|
53879H
53879-12010 Retainer, Front Fender Liner[04.1998 - 07.2002] AE111,114..ROSSO |
53879-12010 |
US $3.40 |
||
|
53903D
|
53903D
53903-12080 Extension Sub-Assy, Front Bumper, Upr[04.1998 - 07.2002] AE111,114..ROSSO |
53903-12080 |
US $198.02 |
||
|
91626A0616
|
91626A0616
91626-A0616 BOLT WWASHER |
91626-A0616 |
US $6.09 |
||
|
9010508132
|
9010508132
90105-08132 New Genuine Part |
90105-08132 |
US $2.33 |
||
| replacement | |||||
|
9010508132
|
9010508132
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.68 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
US $1.25 |
||
|
9011906768
|
9011906768
90119-06768 BOLT WWASHER |
90119-06768 |
US $1.97 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9017908246
|
9017908246
90179-08246
NUT
|
90179-08246 |
— | ||
| replacement | |||||
|
9017908246
|
9017908246
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.76 |
||
|
9046705138
|
9046705138
90467-05138 Clip(For Front Bumper Retainer) |
90467-05138 |
from US $2.05 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $1.72 |
||
