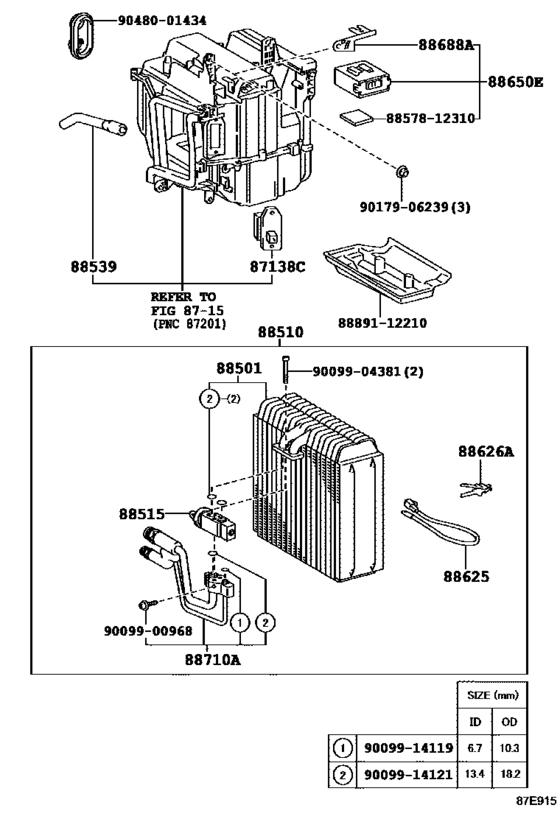

Heating & Air Conditioning - Cooler Unit ([08.1995 - ] ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ (9508- )STOUR) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- STOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87138C
|
87138C
87138-12140
Resistor, Heater Blower
[08.1995 - 04.1997] AE11# |
87138-12140 |
— | ||
|
88501
|
88501
88501-12391 Evaporator Sub-Assy, Cooler, No.1[04.1999 - 07.2002] AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H) & ﾘﾐﾃﾂﾄﾞ *(G) |
88501-12391 |
US $515.42 |
||
|
88501
|
88501
88501-12430
Evaporator Sub-Assy, Cooler, No.1
[08.1995 - 04.1997] AE111,114..STOUR |
88501-12430 |
— | ||
|
88510
|
88510
88501-12420
Unit Assy, Cooler
[08.1995 - 04.1997] AE111,114..STOUR |
88501-12420 |
— | ||
|
88510
|
88510
88510-1A300
Unit Assy, Cooler
[08.1997 - 04.1999] AE111,114..STOUR Sﾂ-ﾘﾝｸﾞ ﾘﾐﾃﾂﾄﾞ *(Z) |
88510-1A300 |
— | ||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[08.1995 - 04.1997] AE11# |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[08.1995 - 04.1997] AE11# |
88515-22240 |
from US $125.76 |
||
|
88539
|
88539
88539-12120
Hose, Cooler Unit Drain, No.1
[08.1995 - 04.1997] AE11# |
88539-12120 |
— | ||
|
88539
|
88539
88539-12160
Hose, Cooler Unit Drain, No.1
[04.1999 - 07.2002] AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H) & ﾘﾐﾃﾂﾄﾞ *(G) |
88539-12160 |
— | ||
|
88625
|
88625
88625-12280 Thermistor, Cooler, No.1[08.1995 - 04.1997] AE11# |
88625-12280 |
US $12.23 |
||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[08.1995 - 04.1997] AE11# |
88626-28010 |
— | ||
|
88650E
|
88650E
88650-1E040
Amplifier Assy, Cooler Stabilizer
[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
88650-1E040 |
— | ||
|
88688A
|
88688A
88688-1A090
Bracket, Cooler Stabilizer Amplifier
[08.1995 - 04.1997] AE111,114..STOUR |
88688-1A090 |
— | ||
|
88710A
|
88710A
88710-12330 Tube Assy, Air Conditioner[08.1995 - 04.1997] AE11# |
88710-12330 |
US $145.60 |
||
|
8857812310
|
8857812310
88578-12310
Packing, Cooler Stabilizer Amplifier
|
88578-12310 |
— | ||
|
8889112210
|
8889112210
88891-12210
Packing (for Cooler)
|
88891-12210 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9048001434
|
9048001434
90480-01434 Grommet, (For Cooler Pipe) |
90480-01434 |
US $4.54 |
||
