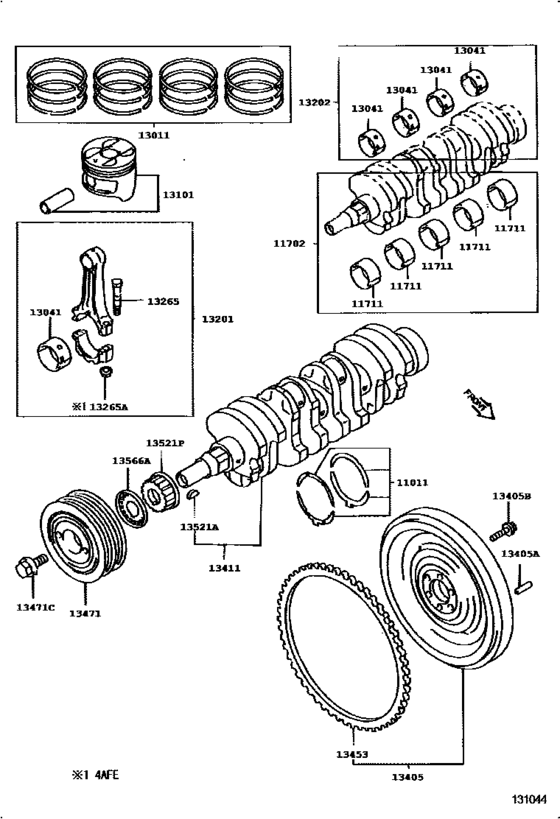

Crankshaft & Piston ([08.1995 - ] (9508- )4AFE,7AFE) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[08.1995 - 04.1997] 4A#,7AFE..AE11# ＳＴＤ |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[08.1995 - 04.1997] 4A#,7AFE..AE11# ＳＴＤ |
11011-15021 |
US $34.78 |
||
|
11011
|
11011
11011-15020
Washer Set, Crankshaft Thrust
[12.1997 - 07.2002] 4A#,7AFE..AE11# ＳＴＤ |
11011-15020 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[12.1997 - 07.2002] 4A#,7AFE..AE11# ＳＴＤ |
11011-15021 |
US $34.78 |
||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[08.1995 - 04.1997] 4A#,7AFE..AE11# Ｕ／Ｓ ０．２５ |
11704-16010 |
from US $121.08 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[08.1995 - 04.1997] 4A#,7AFE..AE11# MARK 1 |
11701-16010-01 |
from US $20.81 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[08.1995 - 04.1997] 4A#,7AFE..AE11# MARK 2 |
11701-16010-02 |
from US $17.94 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[08.1995 - 04.1997] 4A#,7AFE..AE11# MARK 3 |
11701-16010-03 |
from US $18.31 |
||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[08.1995 - 04.1997] 4A#,7AFE..AE11# MARK 4 |
11701-16010-04 |
US $57.62 |
||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[08.1995 - 04.1997] 4A#,7AFE..AE11# MARK 5 |
11701-16010-05 |
US $45.49 |
||
|
13011
|
13011
13011-16300 Ring Set, Piston[08.1995 - 04.1997] 4AFE,7AFE..AE11# ＳＴＤ |
13011-16300 |
from US $121.74 |
||
|
13011
|
13011
13011-16340 Ring Set, Piston[04.1997 - 07.2002] 4AFE..AE111,114 ＳＴＤ |
13011-16340 |
from US $112.53 |
||
|
13011
|
13011
13013-16300 Ring Set, Piston[08.1995 - 04.1997] 4AFE,7AFE..AE11# Ｏ／Ｓ ０．５０ |
13013-16300 |
from US $125.87 |
||
|
13011
|
13011
13013-16340
Ring Set, Piston
[04.1997 - 07.2002] 4AFE..AE111,114 Ｏ／Ｓ ０．５０ |
13013-16340 |
— | ||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[08.1995 - 04.1997] 4AFE..AE111,114 MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[08.1995 - 04.1997] 4AFE..AE111,114 MARK 1 |
13041-15031-01 |
from US $18.19 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[08.1995 - 04.1997] 4AFE..AE111,114 MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[08.1995 - 04.1997] 4AFE..AE111,114 MARK 2 |
13041-15031-02 |
from US $14.04 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[08.1995 - 04.1997] 4AFE..AE111,114 MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[08.1995 - 04.1997] 4AFE..AE111,114 MARK 3 |
13041-15031-03 |
from US $15.33 |
||
|
13101
|
13101
13101-16160-01 Piston Sub-Assy, W/pin[08.1995 - 04.1997] 4AFE..AE111,114 ＳＴＤ,MARK 1 |
13101-16160-01 |
US $94.64 |
||
|
13101
|
13101
13101-16160-02 Piston Sub-Assy, W/pin[08.1995 - 04.1997] 4AFE..AE111,114 ＳＴＤ,MARK 2 |
13101-16160-02 |
US $94.64 |
||
|
13101
|
13101
13101-16160-03 Piston Sub-Assy, W/pin[08.1995 - 04.1997] 4AFE..AE111,114 ＳＴＤ,MARK 3 |
13101-16160-03 |
US $94.64 |
||
|
13101
|
13101
13103-16160 Piston Sub-Assy, W/pin[08.1995 - 04.1997] 4AFE..AE111,114 Ｏ／Ｓ ０．５０ |
13103-16160 |
US $85.80 |
||
|
13201
|
13201
13201-19135 Rod Sub-Assy, Connecting[08.1995 - 04.1997] 4AFE..AE111,114 |
13201-19135 |
US $123.76 |
||
| replacement | |||||
|
13201
|
13201
13201-19176 Rod Sub-Assy, Connecting[08.1995 - 04.1997] 4AFE..AE111,114 |
13201-19176 |
US $101.92 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[08.1995 - 04.1997] 4AFE..AE111,114 Ｕ／Ｓ ０．２５ |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[08.1995 - 04.1997] 4AFE..AE111,114 Ｕ／Ｓ ０．２５ |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15030 Bolt, Connecting Rod[08.1995 - 04.1997] 4AFE..AE111,114 |
13265-15030 |
US $5.24 |
||
|
13265A
|
13265A
90179-09008 Nut, Hexagon(For Connecting Rod Bolt)[08.1995 - 04.1997] 4A#..AE111,114 |
90179-09008 |
US $2.87 |
||
|
13411
|
13411
13411-16900 Crankshaft[08.1995 - 04.1997] 4AFE..AE111,114 |
13411-16900 |
US $1,158.98 |
||
|
13471
|
13471
13470-16100 Pulley, Crankshaft[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
13470-16100 |
US $385.32 |
||
|
13471C
|
13471C
90119-12230 Bolt(For Crankshaft Pulley Set)[08.1995 - 01.1997] 4AFE,7AFE..AE11# |
90119-12230 |
US $6.84 |
||
| replacement | |||||
|
13471C
|
13471C
90119-12314 Bolt(For Crankshaft Pulley Set)[08.1995 - 01.1997] 4AFE,7AFE..AE11# |
90119-12314 |
from US $3.28 |
||
|
13471C
|
13471C
90119-12314 Bolt(For Crankshaft Pulley Set)[01.1997 - 04.1997] 4AFE,7AFE..AE11# |
90119-12314 |
from US $3.28 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90280-05005 |
from US $0.94 |
||
|
13521P
|
13521P
13521-15020 Pulley, Crankshaft Timing[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
13521-15020 |
from US $29.85 |
||
|
13566A
|
13566A
13566-15020 Guide, Timing Belt[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
13566-15020 |
from US $4.35 |
||
