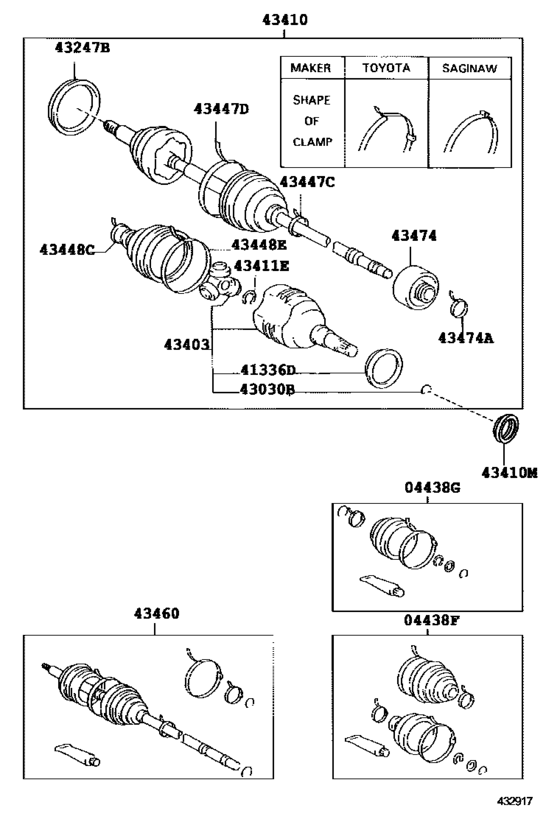

Front Drive Shaft ([05.1996 - ] TOYOTA,RH (9605- )AE111..ROSSO,STOUR,ZTOUR) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-12172
Boot Kit, Front Drive Shaft, In & Outboard
[05.1996 - 04.1997] AE111..STOUR,ZTOUR |
04438-12172 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04428-12270 Boot Kit, Front Drive Shaft, In & Outboard[05.1996 - 04.1997] AE111..STOUR,ZTOUR |
04428-12270 |
US $141.52 |
||
|
04438G
|
04438G
04438-02050 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
04438-02050 |
US $90.27 |
||
|
04438G
|
04438G
04438-12410 Boot Kit, Front Drive Shaft Inboard Joint[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
04438-12410 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-32290 Boot Kit, Front Drive Shaft Inboard Joint[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
04438-32290 |
US $87.36 |
||
|
41336D
|
41336D
41336-01010
Cover, Front Drive Shaft Dust, Rh
[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
41336-01010 |
— | ||
|
41336D
|
41336D
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
41336-12010 |
from US $1.46 |
||
|
43030B
|
43030B
90080-52015
Ring, Hole Snap (For Front Drive Inboard Joint Rh)
[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90080-52015 |
— | ||
|
43030B
|
43030B
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
90521-26004 |
from US $1.79 |
||
|
43247B
|
43247B
43247-02020
Deflector, Front Wheel Bearing Dust, Rh No.2
[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
43247-02020 |
— | ||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ; AE114,115;AE111..BZT |
43247-12010 |
from US $9.50 |
||
|
43403
|
43403
43047-02030 Joint Set, Front Axle Inboard, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
43047-02030 |
US $454.27 |
||
|
43403
|
43403
43403-12040 Joint Assy, Front Drive Inboard[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
43403-12040 |
from US $257.86 |
||
|
43410
|
43410
43410-02080 Shaft Assy, Front Drive, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
43410-02080 |
US $1,113.84 |
||
| replacements | |||||
|
43410
|
43410
43410-02081 Shaft Assy, Front Drive, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
43410-02081 |
US $1,113.84 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90178-22001 |
from US $3.98 |
||
|
43410
|
43410
43410-02081 Shaft Assy, Front Drive, Rh[09.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR SAGINAW |
43410-02081 |
US $1,113.84 |
||
|
43410
|
43410
43410-20450 Shaft Assy, Front Drive, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
43410-20450 |
US $1,116.75 |
||
| replacements | |||||
|
43410
|
43410
43410-20452
Shaft Assy, Front Drive, Rh
[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
43410-20452 |
— | ||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
90178-22001 |
from US $3.98 |
||
|
43410
|
43410
43410-20451
Shaft Assy, Front Drive, Rh
[09.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR ＴＯＹＯＴＡ |
43410-20451 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-20452
Shaft Assy, Front Drive, Rh
[09.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR ＴＯＹＯＴＡ |
43410-20452 |
— | ||
|
43410M
|
43410M
90311-34012 Oil Seal[05.1996 - 04.1997] AE111..4FC |
90311-34012 |
from US $6.27 |
||
|
43410M
|
43410M
90311-34023 Seal, Type T Oil, No.2(For Cvt)[08.1999 - 07.2002] AE111..4FC |
90311-34023 |
from US $4.84 |
||
|
43411E
|
43411E
90080-52008 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90080-52008 |
US $2.18 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
90520-22005 |
from US $1.17 |
||
|
43447C
|
43447C
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[04.1997 - 07.2002] AE111..STOUR,ZTOUR |
42345-16010 |
US $1.88 |
||
|
43447C
|
43447C
90080-46147 Clamp (For Front Axle Outboard Joint Boot Rh)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90080-46147 |
US $3.20 |
||
|
43447C
|
43447C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1996 - 04.1997] AE111..STOUR,ZTOUR 内径＝３２．７,ＴＯＹＯＴＡ |
90949-01078 |
US $0.96 |
||
|
43447D
|
43447D
42345-16020 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
42345-16020 |
US $3.79 |
||
|
43447D
|
43447D
90080-46149 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90080-46149 |
US $5.97 |
||
|
43447D
|
43447D
90949-01080 Clamp (For Rear Drive Shaft Outboard Joint Boot)[04.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR 内径＝８８．２ |
90949-01080 |
US $3.93 |
||
|
43448C
|
43448C
90080-46148 Clamp (For Front Axle Inboard Joint Boot Rh)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90080-46148 |
US $3.20 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
90949-01078 |
US $0.96 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [02.2002 - 07.2002] AE11#..4FC,5F |
42345-12160 |
from US $4.43 |
||
|
43448E
|
43448E
90080-46150 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90080-46150 |
US $4.95 |
||
|
43448E
|
43448E
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[04.1997 - 01.1999] AE111..ROSSO,STOUR,ZTOUR |
90949-01076 |
— | ||
| replacement | |||||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [04.1997 - 01.1999] AE111..ROSSO,STOUR,ZTOUR |
42345-12160 |
from US $4.43 |
||
|
43460
|
43460
43460-09200 Shaft Assy, Front Drive Outboard Joint, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
43460-09200 |
US $813.90 |
||
| replacements | |||||
|
43460
|
43460
43460-09201 Shaft Assy, Front Drive Outboard Joint, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
43460-09201 |
US $813.90 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90178-22001 |
from US $3.98 |
||
|
43460
|
43460
43460-09201 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR SAGINAW |
43460-09201 |
US $813.90 |
||
|
43460
|
43460
43460-29167 Shaft Assy, Front Drive Outboard Joint, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
43460-29167 |
US $661.02 |
||
| replacements | |||||
|
43460
|
43460
43460-80146 Shaft Assy, Front Drive Outboard Joint, Rh[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
43460-80146 |
from US $515.74 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
90178-22001 |
from US $3.98 |
||
|
43460
|
43460
43460-29168 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR ＴＯＹＯＴＡ |
43460-29168 |
US $690.14 |
||
| replacement | |||||
|
43460
|
43460
43460-80146 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR ＴＯＹＯＴＡ |
43460-80146 |
from US $515.74 |
||
|
43474
|
43474
43474-02041 Damper, Drive Shaft[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
43474-02041 |
US $29.85 |
||
|
43474
|
43474
43474-12040 Damper, Drive Shaft[04.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR ＴＯＹＯＴＡ |
43474-12040 |
US $56.93 |
||
| replacement | |||||
|
43474
|
43474
43474-12130 Damper, Drive Shaft[04.1997 - 07.2002] AE111..ROSSO,STOUR,ZTOUR ＴＯＹＯＴＡ |
43474-12130 |
US $55.56 |
||
|
43474
|
43474
43474-20050 Damper, Drive Shaft[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
43474-20050 |
US $26.94 |
||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[02.2002 - 07.2002] AE111..ROSSO,STOUR,ZTOUR |
42345-14010 |
US $12.54 |
||
|
43474A
|
43474A
42345-16030 Clamp, Rear Drive Shaft Boot[05.1996 - 04.1997] AE111..STOUR,ZTOUR ＴＯＹＯＴＡ |
42345-16030 |
from US $3.65 |
||
|
43474A
|
43474A
90080-46148 Clamp (For Front Axle Inboard Joint Boot Rh)[05.1996 - 04.1997] AE111..STOUR,ZTOUR SAGINAW |
90080-46148 |
US $3.20 |
||
