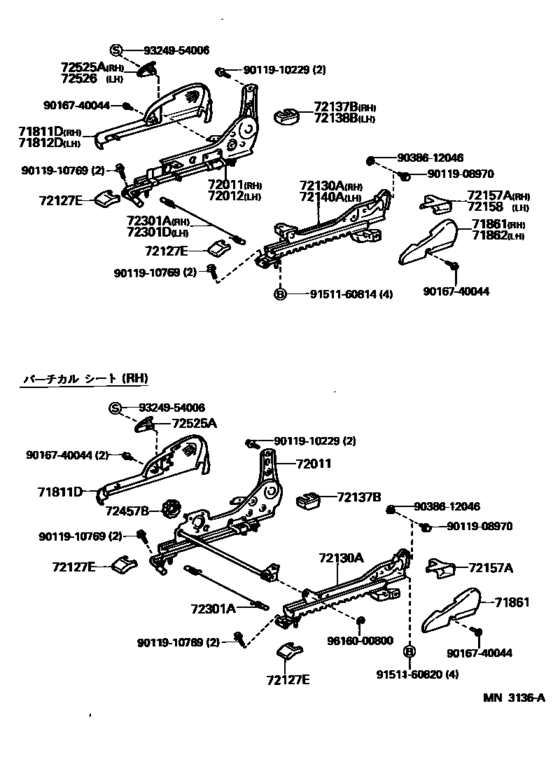

Front Seat & Seat Track ([08.1995 - 05.1997] (9508-9705)4FC,5F) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-12280-P0
Shield, Front Seat Cushion, Rh
[05.1996 - 04.1997] AE111..BZT SHADOW GRAY,TRIM1#; AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
71811-12280-P0 |
— | ||
|
71811D
|
71811D
71811-16230-B0 Shield, Front Seat Cushion, Rh[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71811-16230-B0 |
US $44.84 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16240-B2 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71811-16240-B2 |
US $44.84 |
||
|
71812D
|
71812D
71812-12220-P0 Shield, Front Seat Cushion, Lh[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
71812-12220-P0 |
US $30.87 |
||
|
71812D
|
71812D
71812-16190-B0 Shield, Front Seat Cushion, Lh[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71812-16190-B0 |
US $44.84 |
||
| replacement | |||||
|
71812D
|
71812D
71812-16200-B2 Shield, Front Seat Cushion, Lh[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71812-16200-B2 |
US $44.84 |
||
|
71861
|
71861
71861-12220-P0 Shield, Front Seat Cushion, Inner Rh[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
71861-12220-P0 |
US $20.82 |
||
|
71861
|
71861
71861-20130-B0 Shield, Front Seat Cushion, Inner Rh[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71861-20130-B0 |
US $24.46 |
||
| replacement | |||||
|
71861
|
71861
71861-20130-B6 Shield, Front Seat Cushion, Inner Rh[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71861-20130-B6 |
US $24.46 |
||
|
71862
|
71862
71862-12210-P0 Shield, Front Seat Cushion, Inner Lh[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
71862-12210-P0 |
US $20.82 |
||
|
71862
|
71862
71862-20130-B0 Shield, Front Seat Cushion, Inner Lh[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71862-20130-B0 |
US $24.46 |
||
| replacement | |||||
|
71862
|
71862
71862-20130-B6 Shield, Front Seat Cushion, Inner Lh[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
71862-20130-B6 |
US $24.46 |
||
|
72011
|
72011
72010-12600 Adjuster Sub-Assy, Front Seat, Outer Rh[08.1995 - 04.1997] AE111,115..ZTOUR |
72010-12600 |
US $396.03 |
||
|
72011
|
72011
72011-12260 Adjuster Sub-Assy, Front Seat, Outer Rh[04.1997 - 07.2002] AE11#..BZT,ROSSO,ZTOUR ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
72011-12260 |
US $371.28 |
||
|
72012
|
72012
72012-12210 Adjuster Sub-Assy, Front Seat, Outer Lh[04.1997 - 07.2002] AE11# |
72012-12210 |
US $285.38 |
||
|
72012
|
72012
72020-12570 Adjuster Sub-Assy, Front Seat, Outer Lh[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
72020-12570 |
US $310.13 |
||
|
72127E
|
72127E
72127-12010-C0
Cover, Seat Track Bracket, Inner Front
[05.1996 - 04.1997] AE111,115..ZTOUR BLACK,TRIM16,17; AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
72127-12010-C0 |
— | ||
|
72130A
|
72130A
72130-12650 Track Assy, Front Seat, Inner Rh[05.1996 - 04.1997] AE111..BZT,ZTOUR |
72130-12650 |
US $133.95 |
||
|
72137B
|
72137B
72137-12030-C0
Cover, Seat Track, Rh
[05.1996 - 04.1997] AE111,115..ZTOUR BLACK,TRIM16,17; AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
72137-12030-C0 |
— | ||
|
72137B
|
72137B
72137-12070-C0 Cover, Seat Track, Rh[04.1997 - 07.2002] AE11#..BZT,ROSSO,STOUR,ZTOUR BLACK,TRIM1# |
72137-12070-C0 |
US $12.67 |
||
|
72138B
|
72138B
72138-12040-C0 Cover, Seat Track, Lh[05.1996 - 04.1997] AE111,115..ZTOUR BLACK,TRIM16,17; AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
72138-12040-C0 |
US $10.48 |
||
|
72138B
|
72138B
72138-12080-C0 Cover, Seat Track, Lh[04.1997 - 07.2002] AE11#..BZT,ROSSO,STOUR,ZTOUR BLACK,TRIM1# |
72138-12080-C0 |
US $12.67 |
||
|
72140A
|
72140A
72140-12490 Track Assy, Front Seat,inner Lh[05.1996 - 04.1997] AE111..STOUR,ZTOUR |
72140-12490 |
US $133.95 |
||
|
72157A
|
72157A
72157-12030-C0
Cover, Seat Track Bracket, Inner Rh
[05.1996 - 04.1997] AE111..ZTOUR BLACK,TRIM16,17; AE111..BZT,STOUR BLACK,TRIM1# |
72157-12030-C0 |
— | ||
|
72158
|
72158
72158-12030-C0
Cover, Seat Track Bracket, Inner Lh
[05.1996 - 04.1997] AE111..ZTOUR BLACK,TRIM16,17; AE111..BZT,STOUR BLACK,TRIM1# |
72158-12030-C0 |
— | ||
|
72301A
|
72301A
72301-12090 Wire Sub-Assy, Seat Track Equalizing, Rh[08.1995 - 04.1997] AE111,115..BZT,ZTOUR |
72301-12090 |
US $4.66 |
||
|
72301D
|
72301D
72301-12160 Wire Sub-Assy, Seat Track Equalizing, Rh[08.1995 - 04.1997] AE11# |
72301-12160 |
US $2.91 |
||
|
72457B
|
72457B
72457-18010-B3 Knob, Vertical Seat Adjuster[04.1997 - 07.2002] AE111,115..BZT,ZTOUR SHADOW GRAY,TRIM1# |
72457-18010-B3 |
US $17.33 |
||
| replacement | |||||
|
72457B
|
72457B
72457-18010-S1 Knob, Vertical Seat Adjuster[04.1997 - 07.2002] AE111,115..BZT,ZTOUR SHADOW GRAY,TRIM1# |
72457-18010-S1 |
US $10.63 |
||
|
72457B
|
72457B
72457-22020-B1 Knob, Vertical Seat Adjuster[05.1996 - 04.1997] AE111..BZT SHADOW GRAY,TRIM1#; AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
72457-22020-B1 |
US $15.29 |
||
| replacement | |||||
|
72457B
|
72457B
72457-22020-B2 Knob, Vertical Seat Adjuster, Rh[05.1996 - 04.1997] AE111..BZT SHADOW GRAY,TRIM1#; AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
72457-22020-B2 |
US $9.26 |
||
|
72525A
|
72525A
72525-12100-P0 Handle, Reclining Adjuster Release, Rh[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
72525-12100-P0 |
US $6.81 |
||
|
72525A
|
72525A
72525-16010-B0
Handle, Reclining Adjuster Release, Rh
[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
72525-16010-B0 |
— | ||
|
72526
|
72526
72526-12040-P0 Handle, Reclining Adjuster Release, Lh[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
72526-12040-P0 |
US $6.41 |
||
|
72526
|
72526
72526-16010-B0
Handle, Reclining Adjuster Release, Lh
[04.1997 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
72526-16010-B0 |
— | ||
|
9011908970
|
9011908970
90119-08970 New Genuine Part |
90119-08970 |
US $1.16 |
||
|
9011910229
|
9011910229
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9011910769
|
9011910769
90119-10769
Bolt with washer
|
90119-10769 |
— | ||
| replacement | |||||
|
9011910769
|
9011910769
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9038612046
|
9038612046
90386-12046 Bush (For Front Seat Hinge Pin) |
90386-12046 |
US $0.87 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $1.97 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.88 |
||
