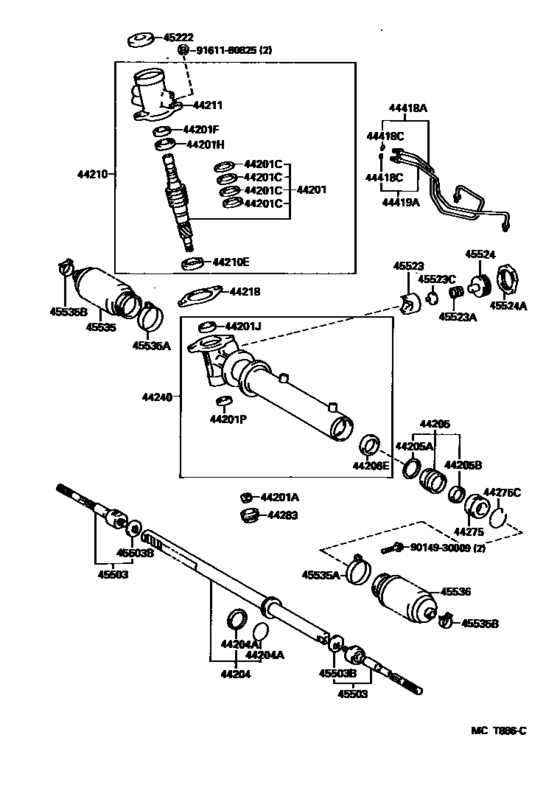

Front Steering Gear & Link ([05.1996 - ] (9508-9605) ; (9605- )ROSSO,STOUR,VTOUR,ZTOUR) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-12420 Valve Sub-Assy, Power Steering Control[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
44201-12420 |
US $294.11 |
||
|
44201A
|
44201A
90179-10048 Nut, Lock(For Power Steering Control Valve)[08.1995 - 04.1997] AE11# |
90179-10048 |
US $4.19 |
||
|
44201C
|
44201C
90560-33003 Spacer(For Power Steering Control Valve)[11.1995 - 04.1997] AE11# |
90560-33003 |
from US $1.19 |
||
|
44201F
|
44201F
90311-19010 Seal, Oil(For Power Steering Control Valve)[08.1995 - 04.1997] AE11# |
90311-19010 |
from US $4.30 |
||
|
44201H
|
44201H
90365-19001 Bearing(For Power Steering Control Valve)[08.1995 - 04.1997] AE11# |
90365-19001 |
from US $22.68 |
||
|
44201J
|
44201J
90364-22006 Bearing(For Power Steering Control Valve Center)[08.1995 - 04.1997] AE11# |
90364-22006 |
US $13.28 |
||
|
44201P
|
44201P
90363-12009 Bearing(For Power Steering Control Valve Lower)[08.1995 - 04.1997] AE11# |
90363-12009 |
US $6.29 |
||
|
44204
|
44204
44204-12100 Rack Sub-Assy, Power Steering[08.1995 - 04.1997] AE11# |
44204-12100 |
US $205.30 |
||
|
44204A
|
44204A
90080-56028 Ring(For Rack Steering Piston)[04.1997 - 07.2002] AE11# 外側 |
90080-56028 |
US $1.75 |
||
|
44204A
|
44204A
90301-34006
Ring(For Rack Steering Piston)
[08.1995 - 04.1997] AE11# 内側 |
90301-34006 |
— | ||
|
44204A
|
44204A
90562-37003 Ring(For Rack Steering Piston)[08.1995 - 04.1997] AE11# KOYO GEAR BOX,外側 |
90562-37003 |
US $1.60 |
||
|
44205
|
44205
44205-12051 Stopper Sub-Assy, Cylinder End[08.1995 - 04.1997] AE11# |
44205-12051 |
US $62.03 |
||
|
44205A
|
44205A
96711-31035 Ring, O (For Power Take-Off Input Shaft)[08.1995 - 04.1997] AE11# |
96711-31035 |
US $3.93 |
||
|
44205B
|
44205B
90080-31025
Seal, Oil(For Cylinder End Stopper)
[04.1997 - 07.2002] AE11# （Ｌ） |
90080-31025 |
— | ||
|
44205B
|
44205B
90311-24008 Seal, Oil(For Cylinder End Stopper)[08.1995 - 04.1997] AE11# （Ｊ） |
90311-24008 |
from US $3.58 |
||
|
44206E
|
44206E
90311-24011 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1995 - 04.1997] AE11# |
90311-24011 |
from US $3.20 |
||
|
44210
|
44210
44210-12250 Valve Assy, Power Steering Control[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
44210-12250 |
US $560.56 |
||
|
44210E
|
44210E
90311-26003 Seal, Oil(For Power Steering Control Valve)[08.1995 - 04.1997] AE11# |
90311-26003 |
from US $4.30 |
||
|
44211
|
44211
44211-12140 Housing, Control Valve[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
44211-12140 |
US $136.86 |
||
|
44218
|
44218
44218-12020 Gasket, Valve Housing[08.1995 - 04.1997] AE11# |
44218-12020 |
from US $2.46 |
||
|
44240
|
44240
44240-12300 Housing Assy, Power Steering Rack[08.1995 - 04.1997] AE11# |
44240-12300 |
US $273.73 |
||
|
44275
|
44275
44275-12051
Stopper, Cylinder End
[08.1995 - 04.1997] AE11# |
44275-12051 |
— | ||
|
44275C
|
44275C
90580-18002 Wire(For Cylinder End Stopper)[08.1995 - 04.1997] AE11# |
90580-18002 |
US $1.60 |
||
|
44283
|
44283
44283-16010 Cap, Power Steering Rack Housing[08.1995 - 04.1997] AE11# |
44283-16010 |
US $13.69 |
||
|
44418A
|
44418A
44418-12120 Tube, Steering Right Turn Pressure[08.1995 - 04.1997] AE11# |
44418-12120 |
US $24.02 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[08.1995 - 04.1997] AE11# |
90301-03001 |
US $3.23 |
||
|
44419A
|
44419A
44419-12150 Tube, Steering Left Turn Pressure[08.1995 - 04.1997] AE11# |
44419-12150 |
US $16.16 |
||
|
45222
|
45222
45222-12080 Cover, Steering Gear Dust[08.1995 - 04.1997] AE11# |
45222-12080 |
US $6.99 |
||
|
45503
|
45503
45503-19215 End Sub-Assy, Steering Rack[08.1995 - 04.1997] AE11# |
45503-19215 |
from US $105.30 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[08.1995 - 04.1997] AE11# 外径＝３５．２ |
90214-14009 |
from US $1.68 |
||
|
45523
|
45523
45504-12030 Guide, Rack(For Steering Gear)[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR （Ｊ） |
45504-12030 |
US $18.78 |
||
|
45523A
|
45523A
90501-29047 Spring(For Power Steering Rack Guide)[04.1999 - 07.2002] AE11# |
90501-29047 |
US $1.46 |
||
|
45523A
|
45523A
90501-32032 Spring(For Steering Gear Rack Guide)[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
90501-32032 |
US $3.35 |
||
|
45523C
|
45523C
45542-12010
Spacer(For Rack Guide)
[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
45542-12010 |
— | ||
|
45524
|
45524
45524-12050 Cap, Steering Rack Guide Spring[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
45524-12050 |
US $6.99 |
||
|
45524A
|
45524A
90179-32001 Nut(For Steering Rack Guide Spring Cap)[08.1995 - 04.1997] AE11# |
90179-32001 |
US $3.20 |
||
|
45535
|
45535
45535-02010
Boot, Steering Rack, No.1
[04.1997 - 07.2002] AE11# （Ｌ） |
45535-02010 |
— | ||
|
45535
|
45535
45535-12060 Boot, Steering Rack, No.1[08.1995 - 04.1997] AE11# |
45535-12060 |
from US $18.25 |
||
|
45535A
|
45535A
90460-50003 Clamp(For Steering Rack Boot)[08.1995 - 04.1997] AE11# |
90460-50003 |
US $7.35 |
||
|
45535B
|
45535B
90080-46174
Clip(For Steering Rack Boot)
[04.1997 - 07.2002] AE11# （Ｌ） |
90080-46174 |
— | ||
|
45535B
|
45535B
90467-19012
Clip
[08.1995 - 04.1997] AE11# （Ｊ） |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[08.1995 - 04.1997] AE11# （Ｊ） |
90467-19019 |
from US $4.19 |
||
|
45535B
|
45535B
90467-19019 Clip[04.2002 - 07.2002] AE11# （Ｊ） |
90467-19019 |
from US $4.19 |
||
|
45536
|
45536
45535-02010
Boot, Steering Rack, No.1
[04.1997 - 07.2002] AE11# （Ｌ） |
45535-02010 |
— | ||
|
45536
|
45536
45535-12060 Boot, Steering Rack, No.1[08.1995 - 04.1997] AE11# |
45535-12060 |
from US $18.25 |
||
|
9014930009
|
9014930009
90149-30009 Screw(For Steering Rack Boot Clamp) |
90149-30009 |
US $1.97 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
