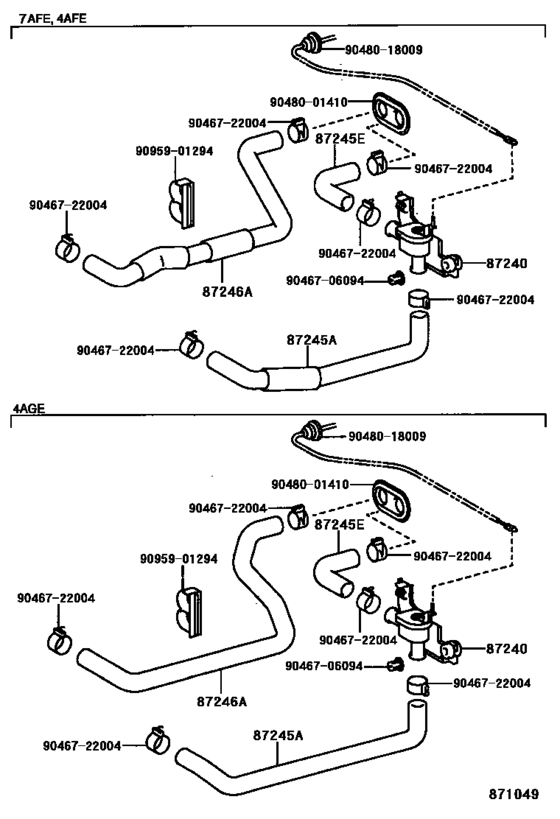

Heating & Air Conditioning - Water Piping ([08.1995 - ] (9508- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87240
|
87240
87240-12250 Valve Assy, Heater Water[08.1995 - 04.1997] AE11# |
87240-12250 |
US $54.10 |
||
|
87245A
|
87245A
87245-1A640 Hose, Heater Water, Inlet A[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
87245-1A640 |
US $30.41 |
||
|
87245E
|
87245E
87245-1A440 Hose, Heater Water, Inlet B[08.1995 - 04.1997] AE11# |
87245-1A440 |
US $14.16 |
||
|
87246A
|
87246A
87245-1A630 Hose, Heater Water, Outlet A[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
87245-1A630 |
US $35.62 |
||
|
9046706094
|
9046706094
90467-06094 Clip(For Cowl Side Trim) |
90467-06094 |
from US $1.07 |
||
|
9046722004
|
9046722004
90467-22004
Clip(For Ventilation Hose No.2)
|
90467-22004 |
— | ||
| replacement | |||||
|
9046722004
|
9046722004
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9048001410
|
9048001410
90480-01410
New Genuine Part
|
90480-01410 |
— | ||
|
9048018009
|
9048018009
90480-18009 Grommet(For Heater Control Cable) |
90480-18009 |
US $2.34 |
||
|
9095901294
|
9095901294
90959-01294
New Genuine Part
|
90959-01294 |
— | ||
