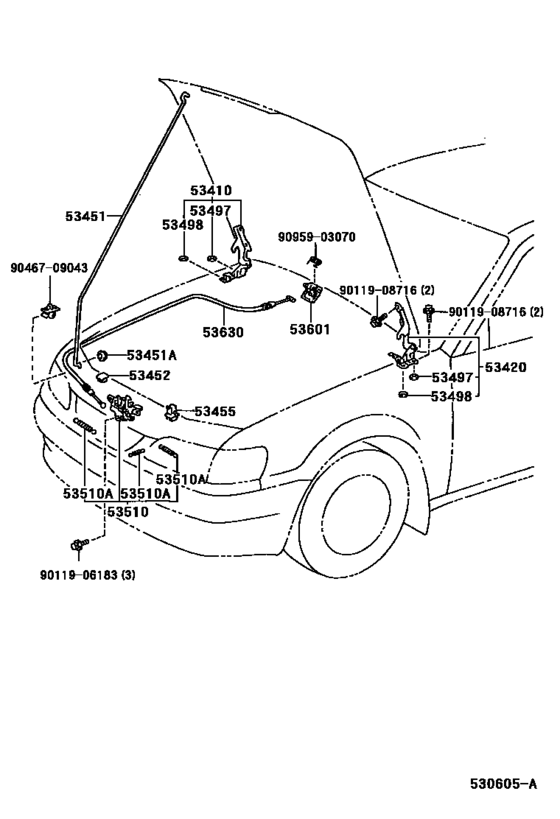

Hood Lock & Hinge ([08.1995 - ] (9508- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-12290 Hinge Assy, Hood, Rh[08.1995 - 04.1997] AE11# |
53410-12290 |
US $32.03 |
||
|
53410
|
53410
53410-12340 Hinge Assy, Hood, Rh[04.1997 - 07.2002] AE11# |
53410-12340 |
US $32.32 |
||
|
53420
|
53420
53420-12280 Hinge Assy, Hood, Lh[08.1995 - 04.1997] AE11# |
53420-12280 |
US $32.03 |
||
|
53420
|
53420
53420-12340 Hinge Assy, Hood, Lh[04.1997 - 07.2002] AE11# |
53420-12340 |
US $32.32 |
||
|
53451
|
53451
53451-12191 Rod, Hood Support[08.1995 - 01.1997] AE11# |
53451-12191 |
US $29.99 |
||
|
53451
|
53451
53451-12192 Rod, Hood Support[01.1997 - 04.1997] AE11# |
53451-12192 |
US $30.14 |
||
|
53451A
|
53451A
53454-12010 Grommet(For Hood Support Rod)[08.1995 - 04.1997] AE11# |
53454-12010 |
from US $2.40 |
||
|
53452
|
53452
53452-12030 Holder, Hood Stay[08.1995 - 04.1997] AE11# |
53452-12030 |
US $5.24 |
||
|
53455
|
53455
53455-12100 Clamp, Hood Support Rod[08.1995 - 04.1997] AE11# |
53455-12100 |
from US $4 |
||
|
53497
|
53497
53497-12060 Pad, Hood Hinge, No.1[08.1995 - 04.1997] AE11# 厚さ＝１．０ |
53497-12060 |
US $2.04 |
||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[08.1995 - 04.1997] AE11# 厚さ＝０．５ |
53497-12070 |
US $1.79 |
||
|
53497
|
53497
53497-12080 Pad, Hood Hinge, No.1[08.1995 - 04.1997] AE11# 厚さ＝１．６ |
53497-12080 |
US $1.61 |
||
|
53497
|
53497
53497-12100 Pad, Hood Hinge, No.1[07.1997 - 07.2002] AE11# 厚さ＝２．５ |
53497-12100 |
US $1.75 |
||
|
53498
|
53498
53497-12060 Pad, Hood Hinge, No.1[08.1995 - 04.1997] AE11# 厚さ＝１．０ |
53497-12060 |
US $2.04 |
||
|
53498
|
53498
53497-12070 Pad, Hood Hinge, No.1[08.1995 - 04.1997] AE11# 厚さ＝０．５ |
53497-12070 |
US $1.79 |
||
|
53498
|
53498
53497-12080 Pad, Hood Hinge, No.1[08.1995 - 04.1997] AE11# 厚さ＝１．６ |
53497-12080 |
US $1.61 |
||
|
53510
|
53510
53510-12480 Lock Assy, Hood[08.1995 - 04.1997] AE11# |
53510-12480 |
US $42.95 |
||
|
53510
|
53510
53510-12631 Lock Assy, Hood[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR |
53510-12631 |
US $43.10 |
||
|
53510A
|
53510A
90506-09057 Spring, Tension(For Hood Lock)[08.1995 - 04.1997] AE11# 線径＝０．９，コイル巻数＝２３ |
90506-09057 |
US $1.22 |
||
|
53510A
|
53510A
90506-14064 Spring, Tension(For Hood Lock)[08.1995 - 04.1997] AE11# 線径＝１．４，コイル巻数＝７．２５ |
90506-14064 |
US $1.16 |
||
|
53510A
|
53510A
90506-20065 Spring, Tension(For Hood Lock)[08.1995 - 04.1997] AE11# 線径＝２．０，コイル巻数＝１６．０ |
90506-20065 |
US $2.48 |
||
|
53601
|
53601
53611-12040-B0 Lever Sub-Assy, Hood Lock Control[04.1997 - 11.2000] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
53611-12040-B0 |
US $9.90 |
||
| replacement | |||||
|
53601
|
53601
53611-12040-C0 Lever Sub-Assy, Hood Lock Control[04.1997 - 11.2000] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
53611-12040-C0 |
from US $7.94 |
||
|
53601
|
53601
53611-12040-C0 Lever Sub-Assy, Hood Lock Control[05.1996 - 04.1997] AE111,115..ZTOUR BLACK,TRIM16,17; AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
53611-12040-C0 |
from US $7.94 |
||
|
53630
|
53630
53630-12480 Cable Assy, Hood Lock Control[08.1995 - 04.1997] AE11# |
53630-12480 |
from US $23.88 |
||
|
53630
|
53630
53630-12500 Cable Assy, Hood Lock Control[04.1998 - 07.2002] AE11# |
53630-12500 |
from US $23.24 |
||
|
9011906183
|
9011906183
90119-06183 New Genuine Part |
90119-06183 |
US $1.97 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.76 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.42 |
||
|
9095903070
|
9095903070
90959-03070 New Genuine Part |
90959-03070 |
US $1.16 |
||
