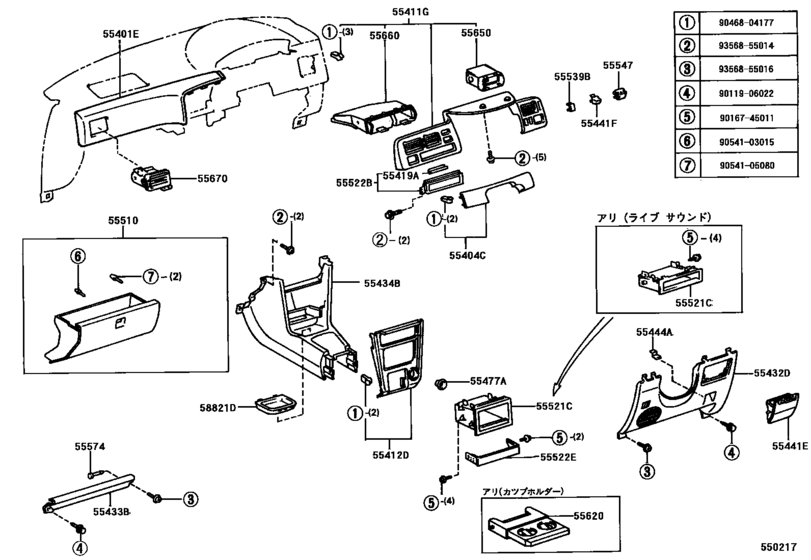

Instrument Panel & Glove Compartment ([08.1995 - 04.1997] (9508-9704)) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55401E
|
55401E
55401-12420-B0 Pad Sub-Assy, Instrument Panel Safety[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55401-12420-B0 |
US $225.68 |
||
|
55401E
|
55401E
55401-12530-B0 Pad Sub-Assy, Instrument Panel Safety[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55401-12530-B0 |
US $828.46 |
||
|
55404C
|
55404C
55404-13020 Panel Sub-Assy, Instrument Cluster Finish, No.2[08.1995 - 04.1997] AE11# |
55404-13020 |
US $23.59 |
||
|
55411G
|
55411G
55410-1A160 Panel, Instrument Cluster Finish, No.1[08.1995 - 04.1997] AE11# |
55410-1A160 |
US $186.37 |
||
|
55411G
|
55411G
55411-12905-B2
Panel, Instrument Cluster Finish, No.1
[04.1997 - 07.2002] AE111,115..BZT,ZTOUR SILVER,TRIM1# |
55411-12905-B2 |
— | ||
|
55412D
|
55412D
55405-12670 Panel, Instrument Cluster Finish, Center[08.1995 - 04.1997] AE11# |
55405-12670 |
US $45.72 |
||
|
55412D
|
55412D
55405-1A030-B0 Panel, Instrument Cluster Finish, Center[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR 1DIN,SHADOW GRAY,TRIM1# |
55405-1A030-B0 |
US $69.71 |
||
|
55412D
|
55412D
55405-1A050-B2
Panel, Instrument Cluster Finish, Center
[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR 2DIN,SHADOW GRAY,TRIM1# |
55405-1A050-B2 |
— | ||
|
55419A
|
55419A
55419-14020 Cushion, Instrument Cluster Finish Panel[08.1995 - 04.1997] AE11# |
55419-14020 |
US $0.73 |
||
|
55432D
|
55432D
55432-12380-B0 Panel, Instrument Panel Finish, Lower No.1[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55432-12380-B0 |
US $131.04 |
||
|
55432D
|
55432D
55432-12410-B0 Panel, Instrument Panel Finish, Lower No.1[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55432-12410-B0 |
US $131.04 |
||
| replacement | |||||
|
55432D
|
55432D
55432-12420-B2 Panel, Instrument Panel Finish, Lower No.1[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55432-12420-B2 |
US $131.04 |
||
|
55432D
|
55432D
55432-12420-B0 Panel, Instrument Panel Finish, Lower No.1[04.1998 - 07.2002] AE11#..STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55432-12420-B0 |
US $131.04 |
||
| replacement | |||||
|
55432D
|
55432D
55432-12420-B2 Panel, Instrument Panel Finish, Lower No.1[04.1998 - 07.2002] AE11#..STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55432-12420-B2 |
US $131.04 |
||
|
55433B
|
55433B
55433-12110-B0 Panel, Instrument Panel Finish, Lower No.2[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55433-12110-B0 |
US $75.71 |
||
|
55433B
|
55433B
55433-12180-B0 Panel, Instrument Panel Finish, Lower No.2[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55433-12180-B0 |
US $100.46 |
||
|
55434B
|
55434B
55434-12150-B0 Panel, Instrument Panel Finish, Lower Center[05.1996 - 04.1997] AE111..ZTOUR SHADOW GRAY,TRIM16,17; AE111..BZT,STOUR SHADOW GRAY,TRIM1# |
55434-12150-B0 |
US $180.54 |
||
|
55434B
|
55434B
55434-12190-B0 Panel, Instrument Panel Finish, Lower Center[04.1997 - 07.2002] AE111..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55434-12190-B0 |
US $180.54 |
||
|
55441E
|
55441E
55441-12110-B0 Box, Instrument Panel[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55441-12110-B0 |
US $21.99 |
||
|
55441E
|
55441E
55441-12140-B0 Box, Instrument Panel[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55441-12140-B0 |
US $21.99 |
||
| replacement | |||||
|
55441E
|
55441E
55441-12140-B1 Box, Instrument Panel[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55441-12140-B1 |
US $22.13 |
||
|
55441F
|
55441F
55441-12130-C0 Box, Instrument Panel[05.1996 - 04.1997] AE111,115..ZTOUR BLACK,TRIM16,17; AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
55441-12130-C0 |
US $6.99 |
||
|
55444A
|
55444A
55444-12050 Spring, Instrument Panel Box[08.1995 - 04.1997] AE11# |
55444-12050 |
US $2.91 |
||
|
55477A
|
55477A
55477-33010 Bezel, Cigar Lighter Hole[08.1995 - 04.1997] AE11# |
55477-33010 |
US $8.24 |
||
|
55510
|
55510
55550-12330-B0 Door Assy, Glove Compartment[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55550-12330-B0 |
US $182 |
||
|
55510
|
55510
55550-12380-B0 Door Assy, Glove Compartment[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55550-12380-B0 |
US $199.47 |
||
|
55521C
|
55521C
55520-12010-C0
Cover, Stereo Opening
[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55520-12010-C0 |
— | ||
| replacement | |||||
|
55521C
|
55521C
55520-12010-B1 Cover, Stereo Opening[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55520-12010-B1 |
US $60.10 |
||
|
55521C
|
55521C
55521-16030 Cover, Radio Tuner Opening[08.1995 - 04.1997] AE111,115..BZT,ZTOUR ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ) |
55521-16030 |
from US $23.15 |
||
|
55521C
|
55521C
55521-16040
Cover, Stereo Opening
[08.1995 - 04.1997] AE11# |
55521-16040 |
— | ||
| replacement | |||||
|
55521C
|
55521C
55521-36020
Cover, Stereo Opening
[08.1995 - 04.1997] AE11# |
55521-36020 |
— | ||
|
55522B
|
55522B
55522-32010
Cover, Radio Tuner Opening
[08.1995 - 04.1997] AE11# |
55522-32010 |
— | ||
| replacement | |||||
|
55522B
|
55522B
55522-20070 Cover, Radio Tuner Opening[08.1995 - 04.1997] AE11# |
55522-20070 |
US $28.39 |
||
|
55539B
|
55539B
55539-32010-C0 Cover, Cooler Switch Hole[05.1996 - 04.1997] AE115..VTOUR..5F;AE111,114..BZT,STOUR BLACK,TRIM1#; AE111..ZTOUR;AE115..ZTOUR..5F BLACK,TRIM16,17 |
55539-32010-C0 |
from US $3.04 |
||
|
55574
|
55574
55574-10010 Shaft, Glove Compartment Door Hinge[08.1995 - 04.1997] AE11# |
55574-10010 |
US $2.87 |
||
|
55620
|
55620
55604-12030-C0 Holder Assy, Instrument Panel Cup[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55604-12030-C0 |
US $77.17 |
||
| replacement | |||||
|
55620
|
55620
55604-12030-B1 Holder Assy, Instrument Panel Cup[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55604-12030-B1 |
US $77.17 |
||
|
55620
|
55620
55620-12070 Holder Assy, Instrument Panel Cup[08.1995 - 04.1997] AE11# |
55620-12070 |
US $50.96 |
||
|
55650
|
55650
55650-12210 Register Assy, Instrument Panel, No.1[08.1995 - 04.1997] AE11# |
55650-12210 |
US $48.48 |
||
|
55650
|
55650
55650-12240-B0
Register Assy, Instrument Panel, No.1
[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55650-12240-B0 |
— | ||
|
55660
|
55660
55660-12250 Register Assy, Instrument Panel, No.2[08.1995 - 04.1997] AE11# |
55660-12250 |
US $113.57 |
||
|
55660
|
55660
55660-12290-B0
Register Assy, Instrument Panel, No.2
[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55660-12290-B0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-12290-B1
Register Assy, Instrument Panel, No.2
[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55660-12290-B1 |
— | ||
|
55660
|
55660
55660-12300-B0 Register Assy, Instrument Panel, No.2[04.1998 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55660-12300-B0 |
US $113.57 |
||
| replacement | |||||
|
55660
|
55660
55660-12300-B1 Register Assy, Instrument Panel, No.2[04.1998 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55660-12300-B1 |
US $113.57 |
||
|
55670
|
55670
55670-12230-B0 Register Assy, Instrument Panel, No.3[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55670-12230-B0 |
US $48.48 |
||
|
55670
|
55670
55670-12260-B0
Register Assy, Instrument Panel, No.3
[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55670-12260-B0 |
— | ||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.70 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.56 |
||
|
9054105080
|
9054105080
90541-05080 Cushion(For Glove Compartment) |
90541-05080 |
from US $1.49 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
