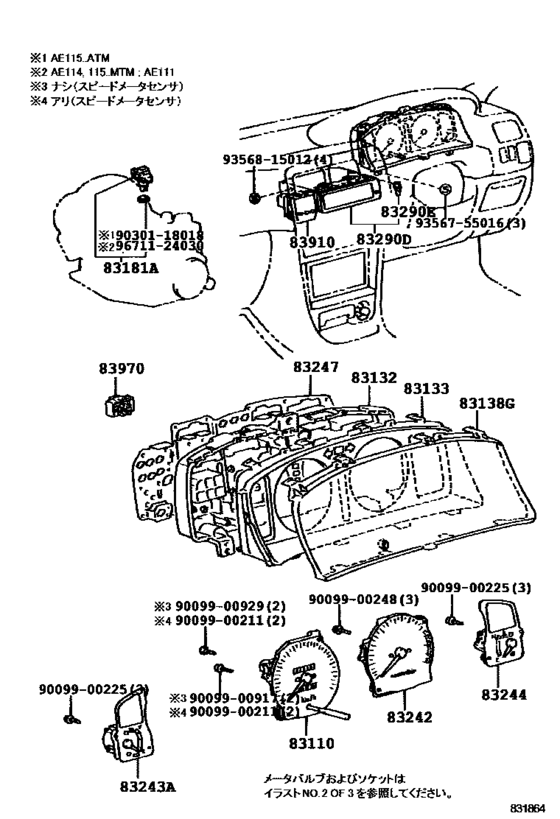

Meter ([08.1995 - ] ｱﾘ(ﾀｺﾒｰﾀ) (9508- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83110-1H300 Speedometer Assy[08.1995 - 04.1997] AE115;AE114..5F;AE111..(STOUR,ZTOUR)..4FC |
83110-1H300 |
US $432.43 |
||
|
83110
|
83110
83110-1H301 Speedometer Assy[04.1997 - 07.2002] AE115;AE114..5F;AE111..(ROSSO,STOUR,ZTOUR)..4FC |
83110-1H301 |
US $432.43 |
||
|
83132
|
83132
83132-1A730
Case, Combination Meter
[05.1996 - 04.1997] AE111,115..4FC |
83132-1A730 |
— | ||
|
83132
|
83132
83841-12770
Case, Combination Meter
[04.1997 - 07.2002] AE111,115..4FC |
83841-12770 |
— | ||
|
83133
|
83133
83133-1H350
Plate, Combination Meter, No.1
[08.1995 - 04.1997] AE11#..4FC |
83133-1H350 |
— | ||
|
83133
|
83133
83811-12630
Plate, Combination Meter, No.1
[04.1997 - 07.2002] AE111,115..(BZT,ZTOUR)..4FC |
83811-12630 |
— | ||
|
83138G
|
83138G
83138-1A210
Glass, Combination Meter
[08.1995 - 04.1997] AE11# |
83138-1A210 |
— | ||
|
83138G
|
83138G
83852-12700
Glass, Combination Meter
[04.1997 - 07.2002] AE11# |
83852-12700 |
— | ||
|
83181A
|
83181A
83181-12020 Sensor, Speedometer[05.1996 - 04.1997] AE111..4FC;AE111..BZT..5F |
83181-12020 |
from US $169.48 |
||
|
83242
|
83242
83242-1H410 Tachometer Assy, Engine[05.1996 - 04.1997] AE114,115..5F;AE111..STOUR,ZTOUR |
83242-1H410 |
US $484.85 |
||
|
83242
|
83242
83881-12790 Tachometer Assy, Engine[04.1997 - 07.2002] AE114;AE111..ZTOUR |
83881-12790 |
US $506.69 |
||
|
83243A
|
83243A
83882-12110 Gauge Sub-Assy, Fuel Receiver[05.1996 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
83882-12110 |
US $75.71 |
||
|
83243A
|
83243A
83882-12772 Gauge Sub-Assy, Fuel Receiver[04.1998 - 07.2002] AE11#..ROSSO,STOUR,ZTOUR |
83882-12772 |
US $70.76 |
||
|
83243A
|
83243A
83882-12800 Gauge Sub-Assy, Fuel Receiver[04.1997 - 11.1997] AE111..STOUR,ZTOUR |
83882-12800 |
US $70.62 |
||
|
83243A
|
83243A
83882-12801 Gauge Sub-Assy, Fuel Receiver[11.1997 - 04.1998] AE111..STOUR,ZTOUR |
83882-12801 |
US $70.76 |
||
|
83244
|
83244
83244-1E330 Gauge Sub-Assy, Water Temperature Receiver[08.1995 - 04.1997] AE11#..STOUR,VTOUR,ZTOUR |
83244-1E330 |
US $70.62 |
||
|
83244
|
83244
83883-12770 Gauge Sub-Assy, Water Temperature Receiver[04.1997 - 07.2002] AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
83883-12770 |
US $70.76 |
||
|
83247
|
83247
83861-12160
Plate, Meter Circuit
[05.1996 - 04.1997] AE111..4FC |
83861-12160 |
— | ||
| replacement | |||||
|
83247
|
83247
83861-12110
Plate, Meter Circuit
[05.1996 - 04.1997] AE111..4FC |
83861-12110 |
— | ||
|
83247
|
83247
83861-12770
Plate, Meter Circuit
[04.1997 - 11.1997] AE115;AE114..5F;AE111..4FC,6F |
83861-12770 |
— | ||
|
83247
|
83247
83861-12771
Plate, Meter Circuit
[11.1997 - 04.1998] AE115;AE114..5F;AE111..4FC,6F |
83861-12771 |
— | ||
| replacement | |||||
|
83247
|
83247
83861-12772
Plate, Meter Circuit
[11.1997 - 04.1998] AE115;AE114..5F;AE111..4FC,6F |
83861-12772 |
— | ||
|
83247
|
83247
83861-12810
Plate, Meter Circuit
[04.1998 - 07.2002] AE111..(ROSSO,STOUR,ZTOUR)..4FC |
83861-12810 |
— | ||
|
83290D
|
83290D
83290-12010 Meter Assy, Accessory[08.1995 - 04.1997] AE11# |
83290-12010 |
US $794.98 |
||
|
83290E
|
83290E
90077-01001 Bulb, Accessory Meter[08.1995 - 04.1997] AE11# |
90077-01001 |
US $4.22 |
||
| replacement | |||||
|
83290E
|
83290E
90010-07007 Bulb, Combination Meter, No.1[08.1995 - 04.1997] AE11# |
90010-07007 |
US $3.94 |
||
|
83910
|
83910
83910-12520
Clock Assy
[08.1995 - 04.1997] AE11# |
83910-12520 |
— | ||
|
83970
|
83970
83970-20010 Buzzer Assy, Reverse Warning[08.1995 - 04.1997] AE11#..4FC |
83970-20010 |
US $38.61 |
||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900248
|
9009900248
90099-00248
New Genuine Part
|
90099-00248 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9030118018
|
9030118018
90301-18018 Ring, O (For Atm Speedometer Driven Hole Cover) |
90301-18018 |
from US $3.16 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9671124030
|
9671124030
96711-24030 Ring,o (For Speedometer Driven Hole Cover) |
96711-24030 |
from US $2.20 |
||
