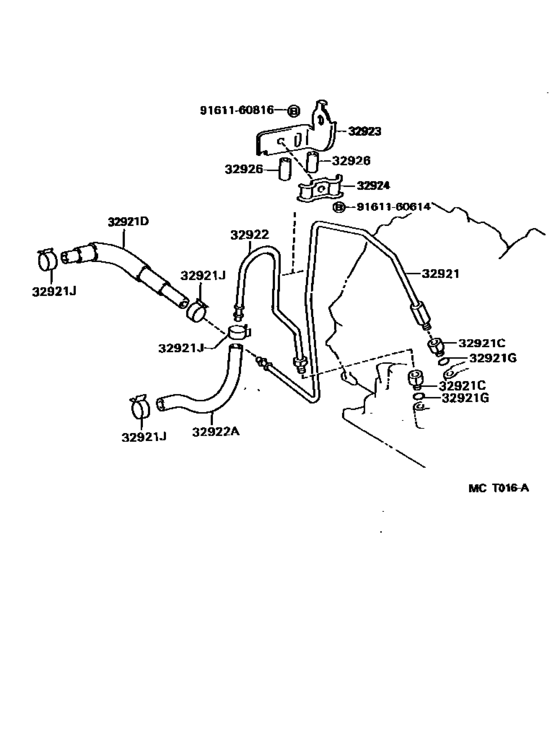

Oil Cooler & Tube (Atm) ([05.1996 - ] A245E (9605- )AE111..4FC) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-12380 Tube, Oil Cooler Inlet, No.1[05.1996 - 04.1997] AE111..4FC |
32921-12380 |
US $12.67 |
||
|
32921C
|
32921C
90404-14019 Union(For Oil Cooler Tube)[05.1996 - 04.1997] AE111..4FC |
90404-14019 |
US $39.17 |
||
|
32921D
|
32921D
32941-12270 Hose(For Oil Cooler Inlet)[05.1996 - 04.1997] AE111..4FC |
32941-12270 |
US $40.33 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[05.1996 - 04.1997] AE111..4FC |
90301-11006 |
from US $2.50 |
||
|
32921J
|
32921J
90467-13039
Clamp, Hose
[08.1995 - 04.1997] AE11#..4FC |
90467-13039 |
— | ||
| replacement | |||||
|
32921J
|
32921J
96135-51300 Clamp, Hose[08.1995 - 04.1997] AE11#..4FC |
96135-51300 |
from US $2.13 |
||
|
32922
|
32922
32922-12370 Tube, Oil Cooler Outlet, No.1[05.1996 - 04.1997] AE111..4FC |
32922-12370 |
US $8.59 |
||
|
32922A
|
32922A
32942-22101 Hose(For Oil Cooler Inlet)[05.1996 - 04.1997] AE111..4FC |
32942-22101 |
US $25.19 |
||
|
32923
|
32923
32923-12260 Clamp, Automatic Transmission Oil Cooler Tube[05.1996 - 04.1997] AE111..4FC |
32923-12260 |
US $7.13 |
||
| replacement | |||||
|
32923
|
32923
32923-12261 Clamp, Automatic Transmission Oil Cooler Tube[05.1996 - 04.1997] AE111..4FC |
32923-12261 |
US $4.95 |
||
|
32923
|
32923
32923-12261 Clamp, Automatic Transmission Oil Cooler Tube[05.1998 - 07.2002] AE111..4FC |
32923-12261 |
US $4.95 |
||
|
32924
|
32924
90462-10127 Clamp, Automatic Transmission Oil Cooler Tube, No.1[05.1996 - 04.1997] AE111..4FC |
90462-10127 |
US $3.67 |
||
|
32926
|
32926
32926-10010 Cushion, Oil Cooler Tube(Atm)[05.1996 - 04.1997] AE111..4FC 長さ＝３０，内径＝８ |
32926-10010 |
US $2.97 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
