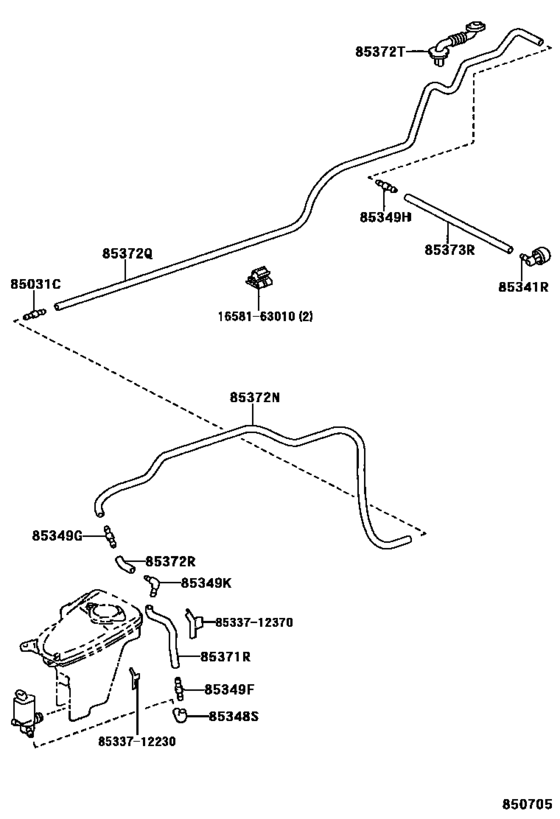

Rear Washer ([08.1995 - ] (9508- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031C
|
85031C
85375-12520 Valve Sub-Assy, Washer[12.1995 - 04.1997] AE11# |
85375-12520 |
from US $1.35 |
||
|
85341R
|
85341R
85395-13020
Nozzle Assy, Washer
[08.1995 - 04.1997] AE11# |
85395-13020 |
— | ||
|
85348S
|
85348S
85336-12230 Joint, Windshield Washer Elbow, No.1[08.1995 - 04.1997] AE11# |
85336-12230 |
from US $0.84 |
||
|
85349F
|
85349F
85375-10260 Joint, Windshield Washer Hose, No.1[08.1995 - 04.1997] AE11# |
85375-10260 |
from US $1.44 |
||
|
85349G
|
85349G
85349-89122 Valve Sub-Assy, Washer[08.1995 - 04.1997] AE11# |
85349-89122 |
from US $1.25 |
||
|
85349H
|
85349H
85375-10260 Joint, Windshield Washer Hose, No.1[08.1995 - 04.1997] AE11# |
85375-10260 |
from US $1.44 |
||
|
85349K
|
85349K
85317-12230
Joint, Windshield Washer Elbow, No.2
[08.1995 - 04.1997] AE11# |
85317-12230 |
— | ||
|
85371R
|
85371R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1995 - 04.1997] AE11# ＊Ｈ，Ｌ＝１３０ |
90446-07001 |
from US $1.75 |
||
|
85372N
|
85372N
90446-07001 Hose, Windshield Washer (From Motor To Joint)[10.1995 - 04.1997] AE11# ＊Ｈ，Ｌ＝１５１０ |
90446-07001 |
from US $1.75 |
||
|
85372Q
|
85372Q
90099-33595
Hose, Rear Washer (From Joint To Joint), No.1
[10.1995 - 04.1997] AE11# ＊Ｈ，Ｌ＝３５４０ |
90099-33595 |
— | ||
|
85372R
|
85372R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1995 - 04.1997] AE11# ＊Ｈ，Ｌ＝７０ |
90099-33080 |
from US $5.27 |
||
|
85372T
|
85372T
85372-12020 Grommet, Washer[08.1995 - 04.1997] AE11# |
85372-12020 |
US $8.44 |
||
|
85373R
|
85373R
90099-33299 Joint, Windshield Washer Elbow, No.2[08.1995 - 04.1997] AE11# ＊Ｈ，Ｌ＝３６０ |
90099-33299 |
from US $4.37 |
||
|
1658163010
|
1658163010
16581-63010 Clamp, Hose(for Water Hose) |
16581-63010 |
US $4.66 |
||
|
8533712230
|
8533712230
85337-12230
Case, Level Warning Switch
|
85337-12230 |
— | ||
|
8533712370
|
8533712370
85337-12370
Case, Level Warning Switch
|
85337-12370 |
— |
