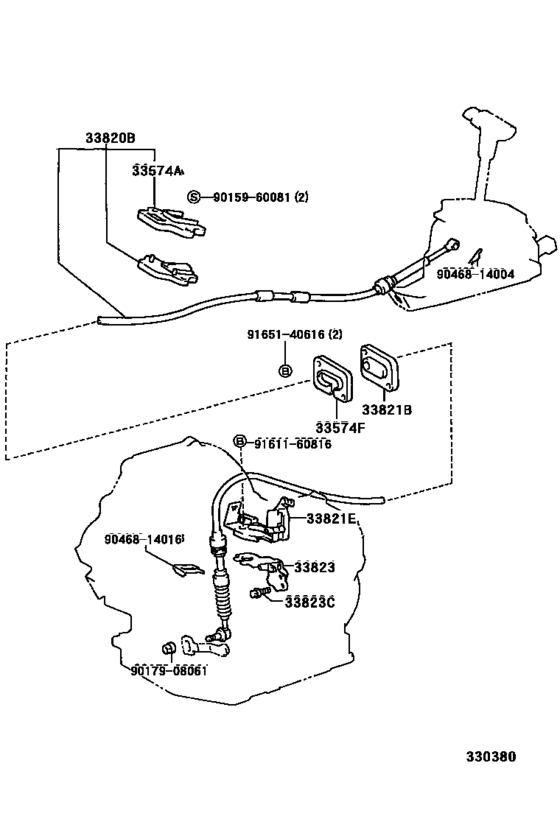

Shift Lever & Retainer ([08.1995 - ] (9508- )4FC) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33574A
|
33574A
33574-12040
Retainer, Shift Cable Grommet, No.1
[08.1995 - 04.1997] AE11#..4FC |
33574-12040 |
— | ||
|
33574F
|
33574F
33574-12080 Retainer, Dust Seal (For Column Shift Control Shaft)[08.1995 - 04.1997] AE11# |
33574-12080 |
US $7.16 |
||
|
33820B
|
33820B
33820-12690 Cable Assy, Transmission Control[08.1995 - 04.1997] AE111,115..(STOUR,VTOUR,ZTOUR)..4FC |
33820-12690 |
US $154.16 |
||
|
33821B
|
33821B
90480-01672 Grommet, No.2 (For Transmission Control Cable)[08.1995 - 04.1997] AE11#..4FC |
90480-01672 |
US $7.28 |
||
|
33821E
|
33821E
90929-01353 Clamp, No.1 (For Transmission Control Cable)[08.1995 - 04.1997] AE111,115..(STOUR,VTOUR,ZTOUR)..4FC |
90929-01353 |
US $11.07 |
||
|
33823
|
33823
33823-12170 Bracket, Transmission Control Cable, No.1[05.1996 - 04.1997] AE111..4FC |
33823-12170 |
US $12.81 |
||
|
33823C
|
33823C
91611-61022
Bolt (For Transmission Control Cable Bracket)
[08.1995 - 04.1997] AE11#..4FC |
91611-61022 |
— | ||
| replacement | |||||
|
33823C
|
33823C
91612-61022 Bolt (For Transmission Control Cable Bracket)[08.1995 - 04.1997] AE11#..4FC |
91612-61022 |
US $2.33 |
||
|
33823C
|
33823C
91612-61022 Bolt (For Transmission Control Cable Bracket)[04.1997 - 07.2002] AE111,115..4FC |
91612-61022 |
US $2.33 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
