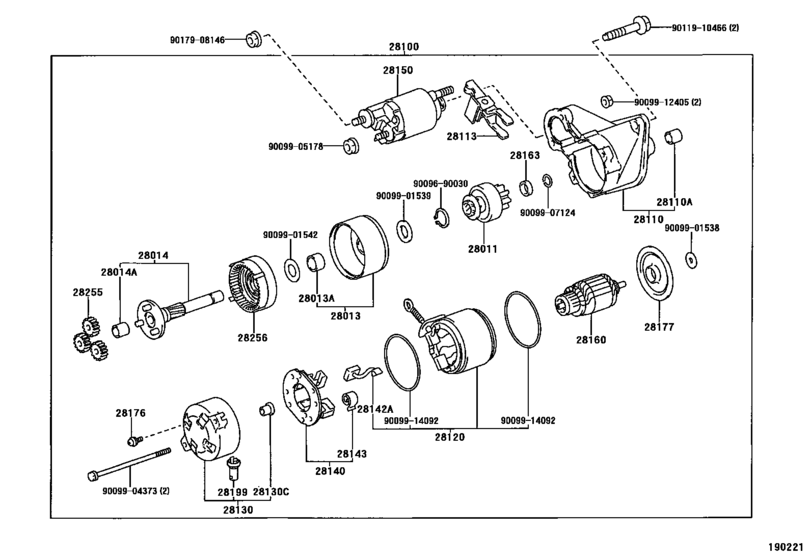

Starter ([08.1995 - ] 12V 0.8KW (9508- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28011-26042 |
— | ||
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28011-70020 |
US $43.51 |
||
|
28013
|
28013
28013-70020 Bearing, Starter Center & Shock Absorber, No.1[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28013-70020 |
US $29.12 |
||
| replacement | |||||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28013-70030 |
US $24.32 |
||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[05.2000 - 07.2002] 4A#,7AFE..AE11# |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90099-10181 |
— | ||
|
28014
|
28014
28014-70020 Shaft Sub-Assy, Planet Carrier[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28014-70020 |
US $23.15 |
||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90099-10180 |
— | ||
|
28100
|
28100
28100-16150
Starter Assy
[05.1996 - 04.1997] 4AFE..AE111 １２Ｖ １．０ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28100-16150 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-16270 Starter Assy[05.1996 - 04.1997] 4AFE..AE111 １２Ｖ １．０ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28100-16270 |
US $1,412.32 |
||
|
28100
|
28100
28100-16190 Starter Assy[04.1997 - 07.2002] 4AFE,7AFE..AE11# １２Ｖ １．０ＫＷ |
28100-16190 |
US $1,090.54 |
||
|
28100
|
28100
28100-16230 Starter Assy[08.1995 - 04.1997] 4A#,7AFE..AE11# １２Ｖ ０．８ＫＷ |
28100-16230 |
US $899.81 |
||
|
28110
|
28110
28110-16071 Housing Assy, Starter Drive[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28110-16071 |
US $96.10 |
||
|
28110
|
28110
28110-16150 Housing Assy, Starter Drive[05.1996 - 04.1997] 4AFE..AE111 12V 1.0KW |
28110-16150 |
US $91.73 |
||
|
28110A
|
28110A
90099-10171
Bearing(For Starter Housing)
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90099-10171 |
— | ||
|
28113
|
28113
28113-16070 Lever, Starter Pinion Drive[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28113-16070 |
US $12.41 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28120-26071 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28120-70020 |
from US $98.61 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[04.1997 - 07.2002] 4AFE,7AFE..AE11# 12V 1.0KW |
28120-70050 |
— | ||
|
28130
|
28130
28130-10040
Frame Assy, Starter Commutator End
[05.1996 - 04.1997] 4AFE..AE111 12V 1.0KW |
28130-10040 |
— | ||
|
28130
|
28130
28130-16070
Frame Assy, Starter Commutator End
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28130-16070 |
— | ||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90099-10183 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28140-26070 |
US $16.77 |
||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28140-70020 |
from US $20.09 |
||
|
28142A
|
28142A
28142-70020 Brush, Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28142-70020 |
from US $3.14 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28143-70020 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-16150 Switch Assy, Magnet Starter[05.1996 - 04.1997] 4AFE..AE111 12V 1.0KW |
28150-16150 |
US $193.65 |
||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28150-16160 |
from US $81.82 |
||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28160-26071 |
— | ||
|
28160
|
28160
28160-70021 Armature Assy, Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[04.1997 - 07.2002] 4AFE,7AFE..AE11# 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28163-70020 |
— | ||
|
28176
|
28176
90099-00270
Screw, Starter
[10.1995 - 04.1997] 4A#,7AFE..AE11# |
90099-00270 |
— | ||
|
28177
|
28177
28177-70020
Plate(For Starter Armature)
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28177-70020 |
— | ||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28199-46080 |
from US $2.97 |
||
|
28255
|
28255
28255-70020
Gear, Planet
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28255-70020 |
— | ||
|
28256
|
28256
28256-70020
Gear, Starter Internal
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28256-70020 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904373
|
9009904373
90099-04373
BOLTTHROUGH
|
90099-04373 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9009914092
|
9009914092
90099-14092
Ring, O(For Starter Yoke)
|
90099-14092 |
— | ||
|
9011910466
|
9011910466
90119-10466
Bolt(For Transaxle & Engine Setting)
|
90119-10466 |
— | ||
| replacement | |||||
|
9011910466
|
9011910466
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.27 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
