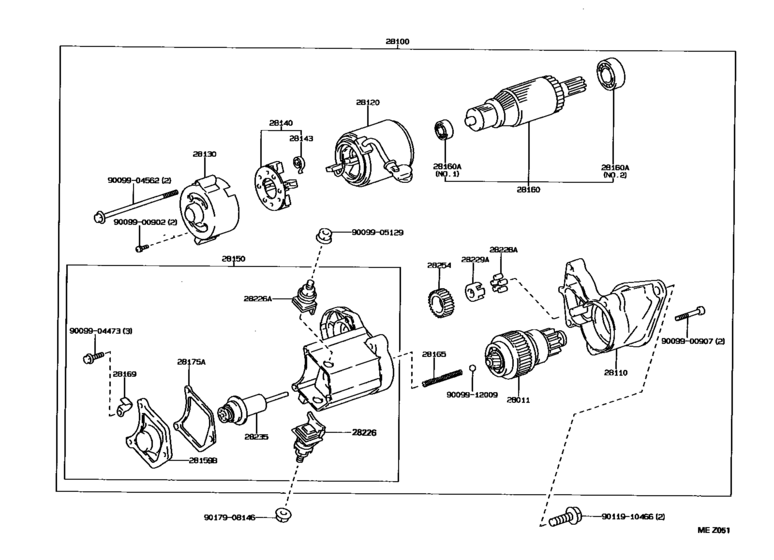

Starter ([08.1995 - 04.1997] 12V 1.0KW,ｶﾝﾚｲﾁ,ﾕｷｸﾞﾆ ｼﾖｳ (9508-9704)4AFE,7AFE ; (9605- )4AGE) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28011-26042 |
— | ||
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28011-70020 |
US $43.51 |
||
|
28100
|
28100
28100-16150
Starter Assy
[05.1996 - 04.1997] 4AFE..AE111 １２Ｖ １．０ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28100-16150 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-16270 Starter Assy[05.1996 - 04.1997] 4AFE..AE111 １２Ｖ １．０ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28100-16270 |
US $1,412.32 |
||
|
28100
|
28100
28100-16190 Starter Assy[04.1997 - 07.2002] 4AFE,7AFE..AE11# １２Ｖ １．０ＫＷ |
28100-16190 |
US $1,090.54 |
||
|
28100
|
28100
28100-16230 Starter Assy[08.1995 - 04.1997] 4A#,7AFE..AE11# １２Ｖ ０．８ＫＷ |
28100-16230 |
US $899.81 |
||
|
28110
|
28110
28110-16071 Housing Assy, Starter Drive[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28110-16071 |
US $96.10 |
||
|
28110
|
28110
28110-16150 Housing Assy, Starter Drive[05.1996 - 04.1997] 4AFE..AE111 12V 1.0KW |
28110-16150 |
US $91.73 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28120-26071 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28120-70020 |
from US $98.61 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[04.1997 - 07.2002] 4AFE,7AFE..AE11# 12V 1.0KW |
28120-70050 |
— | ||
|
28130
|
28130
28130-10040
Frame Assy, Starter Commutator End
[05.1996 - 04.1997] 4AFE..AE111 12V 1.0KW |
28130-10040 |
— | ||
|
28130
|
28130
28130-16070
Frame Assy, Starter Commutator End
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28130-16070 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28140-26070 |
US $16.77 |
||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28140-70020 |
from US $20.09 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28143-70020 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-16150 Switch Assy, Magnet Starter[05.1996 - 04.1997] 4AFE..AE111 12V 1.0KW |
28150-16150 |
US $193.65 |
||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28150-16160 |
from US $81.82 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28159-10040 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1995 - 04.1997] 4A#,7AFE..AE11# 12V 1.0KW |
28160-26071 |
— | ||
|
28160
|
28160
28160-70021 Armature Assy, Starter[08.1995 - 04.1997] 4A#,7AFE..AE11# |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[04.1997 - 07.2002] 4AFE,7AFE..AE11# 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ＮＯ．１ |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,ＮＯ．２ |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28165-26040 |
— | ||
|
28169
|
28169
28169-10040
Clamp, Starter Motor Lead Wire
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28169-10040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28175-10040 |
— | ||
|
28226
|
28226
28226-70040 Starter Kit, Battery Terminal[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28226-70040 |
from US $9.43 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28226-72010 |
from US $10.22 |
||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28228-26040 |
— | ||
|
28229A
|
28229A
28229-26040
Retainer, Starter Idle Gear
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28235-35080 |
from US $23.41 |
||
|
28254
|
28254
28254-45020
Pinion, Starter Drive
[08.1995 - 04.1997] 4A#,7AFE..AE11# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28254-45020 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011910466
|
9011910466
90119-10466
Bolt(For Transaxle & Engine Setting)
|
90119-10466 |
— | ||
| replacement | |||||
|
9011910466
|
9011910466
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.27 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
