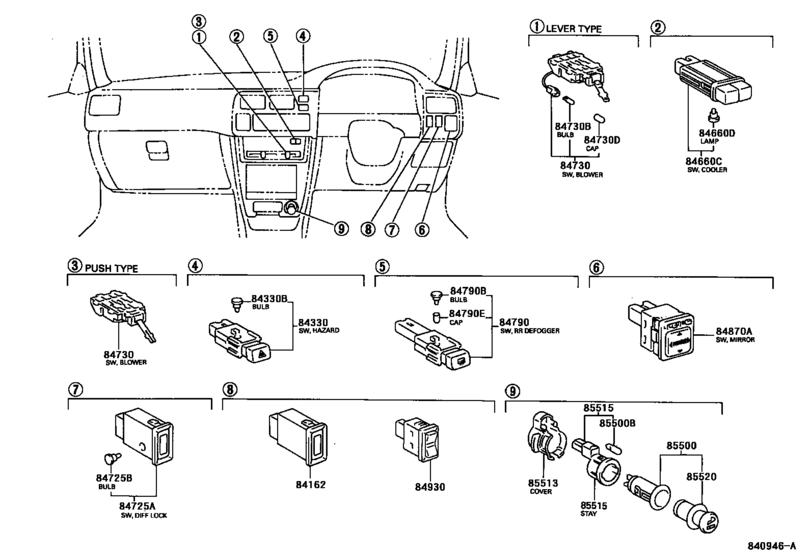

Switch & Relay & Computer ([08.1995 - 04.1997] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲｯﾁ (9508-9704)) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-12380 Switch Assy, Hazard Warning Signal[05.1996 - 06.1996] AE11# |
84332-12380 |
US $56.93 |
||
| replacement | |||||
|
84330
|
84330
84332-12381 Switch Assy, Hazard Warning Signal[05.1996 - 06.1996] AE11# |
84332-12381 |
US $57.51 |
||
|
84330
|
84330
84332-12381 Switch Assy, Hazard Warning Signal[06.1996 - 04.1997] AE11# |
84332-12381 |
US $57.51 |
||
|
84330
|
84330
84332-12400 Switch Assy, Hazard Warning Signal[04.1997 - 04.1998] AE11# |
84332-12400 |
US $57.51 |
||
|
84330
|
84330
84332-12410 Switch Assy, Hazard Warning Signal[04.1998 - 07.2002] AE11# |
84332-12410 |
US $57.51 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[08.1995 - 04.1997] AE11# １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $4.30 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[04.1997 - 07.2002] AE11# １４Ｖ ０．９１Ｗ |
84999-10860 |
from US $4.84 |
||
|
84730
|
84730
84732-20270
Switch Assy, Heater Blower
[08.1995 - 04.1997] AE111,115..BZT,ZTOUR ﾏﾆﾕｱﾙ ｴｱｺﾝ |
84732-20270 |
— | ||
| replacement | |||||
|
84730
|
84730
84732-26030 Switch Assy, Heater Blower[08.1995 - 04.1997] AE111,115..BZT,ZTOUR ﾏﾆﾕｱﾙ ｴｱｺﾝ |
84732-26030 |
US $64.47 |
||
|
84790
|
84790
84790-12350 Switch Assy, Rear Window Defogger[08.1995 - 04.1997] AE11# |
84790-12350 |
US $57.51 |
||
|
84790B
|
84790B
84999-10320 Bulb, Satellite Switch[08.1995 - 04.1997] AE11# １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $4.30 |
||
|
84790E
|
84790E
84998-10680 Cap, Bulb(For Rear Window Defogger Switch)[08.1995 - 04.1997] AE11# |
84998-10680 |
US $2.04 |
||
|
84870A
|
84870A
84870-12130 Switch Assy, Outer Mirror[04.1997 - 07.2002] AE11# |
84870-12130 |
US $81.54 |
||
|
84870A
|
84870A
84870-12140 Switch Assy, Outer Mirror[04.1997 - 07.2002] AE11# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
84870-12140 |
US $94.64 |
||
|
84870A
|
84870A
84870-16020
Switch Assy, Outer Mirror
[08.1995 - 04.1997] AE11# |
84870-16020 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-22200 Switch Assy, Outer Mirror[08.1995 - 04.1997] AE11# |
84870-22200 |
US $86.31 |
||
|
84870A
|
84870A
84870-16040 Switch Assy, Outer Mirror[08.1995 - 04.1997] AE111,115..BZT,VTOUR,ZTOUR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
84870-16040 |
US $116.44 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[08.1995 - 04.1997] AE11# |
85500-12240 |
from US $27.42 |
||
|
85500B
|
85500B
90010-01015 Bulb, Cigarette Lighter[08.1995 - 04.1997] AE11# １４Ｖ １．４Ｗ，キャップ付き |
90010-01015 |
from US $2.40 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[08.1995 - 04.1997] AE11# |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-12100
Stay, Cigarette Lighter Bezel
[08.1995 - 04.1997] AE11# |
85515-12100 |
— | ||
| replacements | |||||
|
85515
|
85515
55477-33010 Bezel, Cigar Lighter Hole[08.1995 - 04.1997] AE11# |
55477-33010 |
US $8.24 |
||
|
85515
|
85515
85515-12130 Stay, Cigarette Lighter Bezel[08.1995 - 04.1997] AE11# |
85515-12130 |
US $11.53 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[08.1995 - 04.1997] AE11# |
85520-28010 |
from US $16.77 |
||
