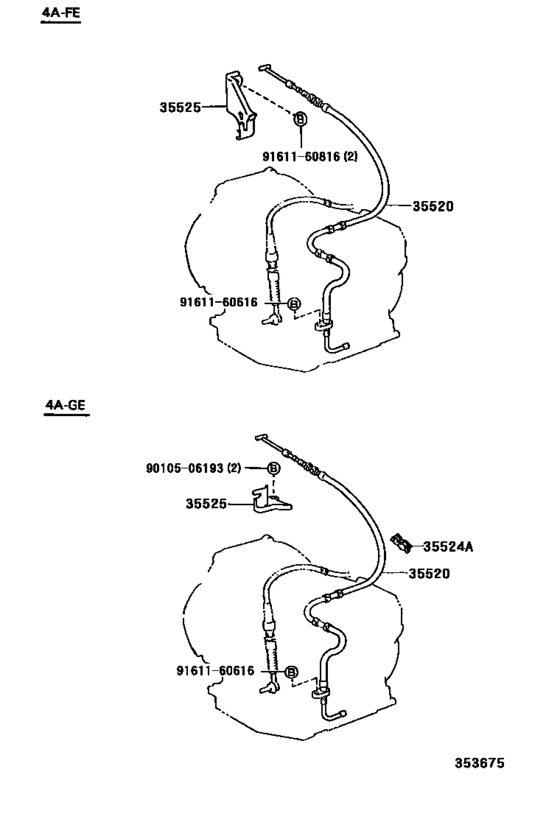

Throttle Link & Valve Lever (Atm) ([05.1996 - ] A245E (9605- )AE111..4FC) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-12390
Cable Assy, Throttle
[05.1996 - 12.1996] AE111..(STOUR,ZTOUR)..4FC |
35520-12390 |
— | ||
| replacement | |||||
|
35520
|
35520
35520-12391
Cable Assy, Throttle
[05.1996 - 12.1996] AE111..(STOUR,ZTOUR)..4FC |
35520-12391 |
— | ||
|
35520
|
35520
35520-12391
Cable Assy, Throttle
[12.1996 - 04.1997] AE111..(STOUR,ZTOUR)..4FC |
35520-12391 |
— | ||
|
35525
|
35525
35525-12100
Bracket, Throttle Cable
[08.1995 - 04.1997] AE11#..(STOUR,VTOUR,ZTOUR)..4FC |
35525-12100 |
— | ||
|
9010506193
|
9010506193
90105-06193 New Genuine Part |
90105-06193 |
US $1.60 |
||
| replacement | |||||
|
9010506193
|
9010506193
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
