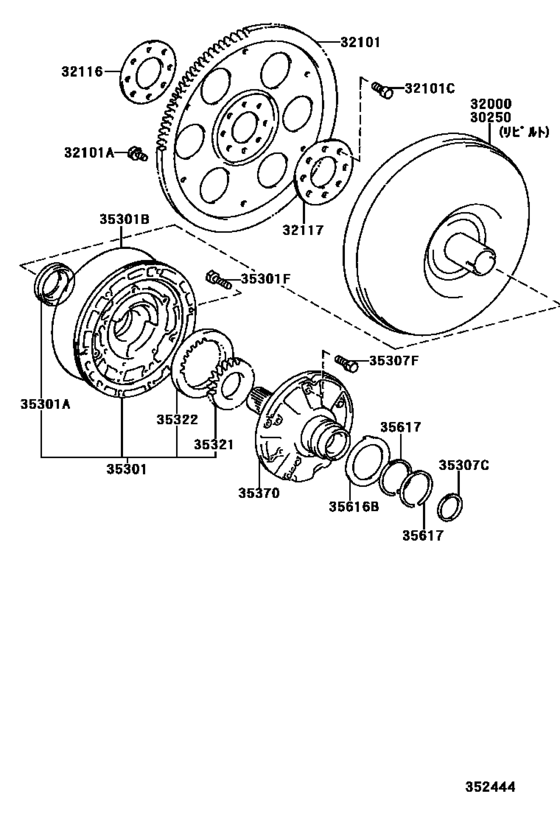

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1995 - ] A241H,A245E (9508- )4FC) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30250
|
30250
30250-12190 Converter Assy, Torque, Rebuilt[05.1996 - 04.1997] AE111..4FC |
30250-12190 |
US $1,166.26 |
||
|
32000
|
32000
32000-12190 Converter Assy, Torque, Rebuilt[05.1996 - 04.1997] AE111..4FC |
32000-12190 |
US $1,674.40 |
||
|
32101
|
32101
32101-12060 Gear Sub-Assy, Drive Plate & Ring[08.1995 - 04.1997] AE11#..(STOUR,VTOUR,ZTOUR)..4FC |
32101-12060 |
US $256.26 |
||
| replacement | |||||
|
32101
|
32101
32101-12061 Gear Sub-Assy, Drive Plate & Ring[08.1995 - 04.1997] AE11#..(STOUR,VTOUR,ZTOUR)..4FC |
32101-12061 |
US $248.98 |
||
|
32101A
|
32101A
90109-08113 Bolt(For Drive Plate & Torque Converter Setting)[08.1995 - 04.1997] AE11#..4FC ＊８−１．２５ＰＸ１２−８．４,グリーン |
90109-08113 |
US $1.43 |
||
|
32101A
|
32101A
90119-08498 Bolt(For Drive Plate & Torque Converter Setting)[08.1995 - 04.1997] AE11#..4FC ＊８−１．２５ＰＸ１２−８,ブラック |
90119-08498 |
from US $0.80 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[08.1995 - 04.1997] AE11#..(STOUR,VTOUR,ZTOUR)..4FC ＊１０−１．２５ＰＸ１８−１３ |
90105-10048 |
from US $1.11 |
||
|
32116
|
32116
32116-12010 Spacer, Drive Plate, Front[08.1995 - 04.1997] AE11#..(STOUR,VTOUR,ZTOUR)..4FC |
32116-12010 |
US $7.43 |
||
|
32117
|
32117
32117-12010 Spacer, Drive Plate, Rear[08.1995 - 04.1997] AE11#..(STOUR,VTOUR,ZTOUR)..4FC |
32117-12010 |
US $9.90 |
||
|
35301
|
35301
35035-20010 Body Sub-Assy, Front Oil Pump[05.1996 - 04.1997] AE111..4FC |
35035-20010 |
from US $306.13 |
||
|
35301A
|
35301A
90311-38020 Seal, Oil (For Front Oil Pump)[08.1995 - 04.1997] AE11#..4FC |
90311-38020 |
from US $9.68 |
||
|
35301A
|
35301A
90311-38082 Seal, Oil (For Front Oil Pump)[09.2000 - 07.2002] AE11#..4FC |
90311-38082 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99024 Ring, O (For Front Oil Pump Body)[08.1995 - 04.1997] AE11#..4FC |
90301-99024 |
from US $6.98 |
||
|
35301F
|
35301F
90105-08198 Bolt (For Front Oil Pump Setting)[08.1995 - 04.1997] AE11#..4FC ＊８−１．２５ＰＸ２８−２８ |
90105-08198 |
US $1.16 |
||
|
35307F
|
35307F
90119-06808 Bolt (For Stator Shaft)[12.1995 - 04.1997] AE11#..4FC |
90119-06808 |
US $1.46 |
||
| replacement | |||||
|
35307F
|
35307F
90119-06559 Bolt (For Stator Shaft)[12.1995 - 04.1997] AE11#..4FC |
90119-06559 |
US $1.79 |
||
|
35321
|
35321
35321-12070
Gear, Front Oil Pump Drive
[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４４０−９．４４９ |
35321-12070 |
— | ||
|
35321
|
35321
35321-12080 Gear, Front Oil Pump Drive[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４５０−９．４５９ |
35321-12080 |
US $50.09 |
||
|
35321
|
35321
35321-12090 Gear, Front Oil Pump Drive[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４６０−９．４７０ |
35321-12090 |
US $50.09 |
||
|
35321
|
35321
35321-12100 Gear, Front Oil Pump Drive[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４７１−９．４８０ |
35321-12100 |
US $50.09 |
||
|
35321
|
35321
35321-12110 Gear, Front Oil Pump Drive[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４８１−９．４９０ |
35321-12110 |
US $50.09 |
||
|
35322
|
35322
35322-12060 Gear, Front Oil Pump Driven[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４４０−９．４４９ |
35322-12060 |
US $53.58 |
||
|
35322
|
35322
35322-12070 Gear, Front Oil Pump Driven[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４５０−９．４５９ |
35322-12070 |
US $53.58 |
||
|
35322
|
35322
35322-12080 Gear, Front Oil Pump Driven[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４６０−９．４７０ |
35322-12080 |
US $53.58 |
||
|
35322
|
35322
35322-12090 Gear, Front Oil Pump Driven[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４７１−９．４８０ |
35322-12090 |
US $53.58 |
||
|
35322
|
35322
35322-12100
Gear, Front Oil Pump Driven
[05.1996 - 04.1997] AE111..4FC 厚さ＝９．４８１−９．４９０ |
35322-12100 |
— | ||
|
35370
|
35370
35370-12050 Shaft Assy, Stator[05.1996 - 04.1997] AE111..4FC |
35370-12050 |
US $327.60 |
||
| replacement | |||||
|
35370
|
35370
35370-32060 Shaft Assy, Stator[05.1996 - 04.1997] AE111..4FC |
35370-32060 |
US $323.23 |
||
|
35370
|
35370
35370-32060 Shaft Assy, Stator[10.2001 - 07.2002] AE111..4FC |
35370-32060 |
US $323.23 |
||
|
35616B
|
35616B
35616-32010 Washer, Clutch Drum Thrust (For Stator Shaft)[08.1995 - 04.1997] AE11#..4FC |
35616-32010 |
US $27.81 |
||
|
35617
|
35617
35617-32011 Ring, Clutch Drum Oil Seal[08.1995 - 04.1997] AE11#..4FC |
35617-32011 |
from US $18.25 |
||
