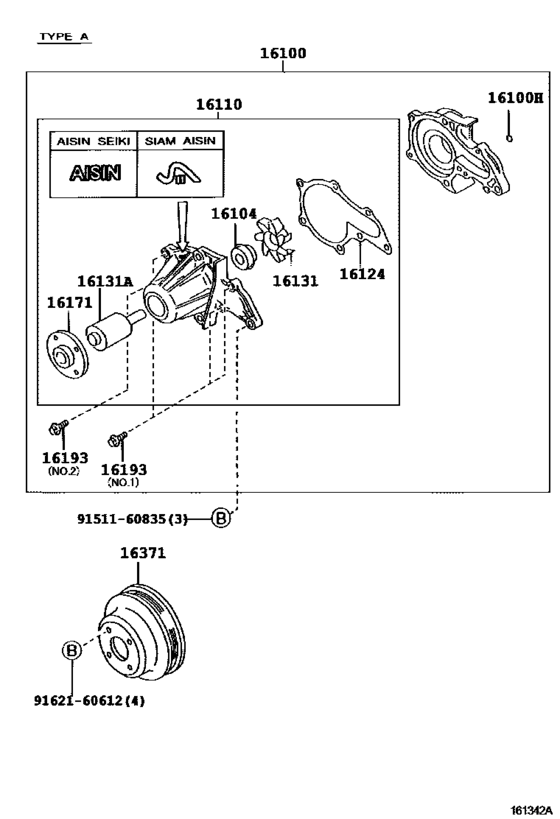

Water Pump ([08.1995 - ] TYPE A (9508- )4AFE,7AFE) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09120
Pump Assy, Engine Water
[01.1999 - 07.2002] 4AFE..AE111,114 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SIAM AISIN |
16100-09120 |
— | ||
|
16100
|
16100
16100-19295 Pump Assy, Engine Water[08.1995 - 04.1997] 4AFE..AE111,114 |
16100-19295 |
US $170.35 |
||
| replacement | |||||
|
16100
|
16100
16100-19355 Pump Assy, Engine Water[08.1995 - 04.1997] 4AFE..AE111,114 |
16100-19355 |
US $187.20 |
||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[08.1995 - 04.1997] 4A#,7AFE..AE11# |
96761-24035 |
from US $2.73 |
||
|
16104
|
16104
16104-46060 Seal Set, Water Pump[08.1997 - 03.2000] 4AFE,7AFE..AE11# |
16104-46060 |
US $47.61 |
||
|
16104
|
16104
16104-54030 Seal Set, Water Pump[05.1996 - 04.1997] 4AFE..AE111,114 |
16104-54030 |
US $36.17 |
||
|
16110
|
16110
16110-19145 Pump Assy, Water, W/o Coupling[08.1995 - 10.1996] 4AFE..AE111,114 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ＡＩＳＡＮ |
16110-19145 |
US $110.66 |
||
| replacement | |||||
|
16110
|
16110
16110-19146 Pump Assy, Water, W/o Coupling[08.1995 - 10.1996] 4AFE..AE111,114 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ＡＩＳＡＮ |
16110-19146 |
US $83.87 |
||
|
16110
|
16110
16110-19146 Pump Assy, Water, W/o Coupling[10.1996 - 04.1997] 4AFE..AE111,114 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ＡＩＳＡＮ |
16110-19146 |
US $83.87 |
||
|
16110
|
16110
16110-19205 Pump Assy, Water, W/o Coupling[08.1995 - 04.1997] 4AFE..AE111,114 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ＡＩＳＩＮ ＳＥＩＫＩ |
16110-19205 |
US $106.58 |
||
|
16124
|
16124
16124-15110 Gasket, Water Pump Cover[05.1996 - 04.1997] 4AFE,7AFE..AE11# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
16124-15110 |
from US $2.50 |
||
|
16124
|
16124
16124-16060
Gasket, Water Pump Cover
[08.1995 - 04.1997] 4AFE,7AFE..AE11# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
16124-16060 |
— | ||
|
16131
|
16131
16131-16090 Rotor, Water Pump[05.1996 - 04.1997] 4AFE,7AFE..AE11# |
16131-16090 |
US $9.32 |
||
|
16131A
|
16131A
90029-36846 Bearing, Water Pump[05.1996 - 04.1997] 4A#,7AFE..AE11# |
90029-36846 |
US $39.31 |
||
|
16171
|
16171
16171-10012 Seat, Water Pump Pulley[08.1995 - 04.1997] 4AFE,7AFE..AE11# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
16171-10012 |
US $19.66 |
||
|
16171
|
16171
16171-15070 Seat, Water Pump Pulley[08.1995 - 10.1996] 4AFE,7AFE..AE11# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
16171-15070 |
US $21.11 |
||
|
16171
|
16171
16171-15071 Seat, Water Pump Pulley[10.1996 - 04.1997] 4AFE,7AFE..AE11# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
16171-15071 |
US $13.25 |
||
|
16193
|
16193
16193-15011 Bolt, Stud(For Water Pump Cover)[08.1995 - 08.1996] 4AFE..AE111,114 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ＮＯ．１ ＆ ＮＯ．２ |
16193-15011 |
US $5.38 |
||
|
16193
|
16193
16193-15100 Bolt, Stud(For Water Pump Cover)[08.1995 - 04.1997] 4AFE,7AFE..AE11# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
16193-15100 |
US $1.89 |
||
|
16371
|
16371
16371-02030 Pulley, Fan[01.1999 - 07.2002] 4AFE..AE111,114 （Ｌ） |
16371-02030 |
US $39.89 |
||
|
16371
|
16371
16371-15071 Pulley, Fan[04.1996 - 04.1997] 4AFE,7AFE..AE11# |
16371-15071 |
US $37.27 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.40 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
